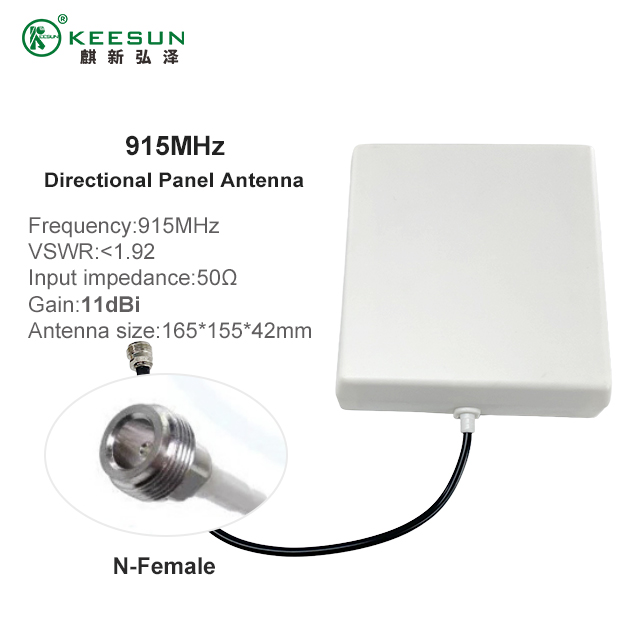

915Mhz Directional Panel Wall-mounted Antenna

Specification:
Frequency:915MHz
Gain:11dBi
VSWR:Less than1.92
Maxpower:50W
Impedance:50Ω
Connector:N Female
Cable type:RG58U
Size:165*155*42mm
Weight:270g
  • KS50070

  • Keesun

  • KS50070

Availability:
Quantity:
pinterest sharing button
whatsapp sharing button
facebook sharing button
twitter sharing button
linkedin sharing button
line sharing button
kakao sharing button
sharethis sharing button

Frequency Focused: The Ideal Choice for Long-Distance Communication

This high-performance 915MHz Directional Panel Wall-mounted Antenna is specifically designed for applications requiring long-range and stable communication links. It operates in the critical 915 MHz ISM (Industrial, Scientific, and Medical) frequency band, a primary band for LoRaWAN, Sigfox, Helium Network, RFID, and various Internet of Things (IoT) and Machine-to-Machine (M2M) communication systems, particularly in North America, Australia, and certain Asian regions for wireless networking.


Product Features and Performance Advantages


  1. Directional Gain and Coverage Optimization:

    • As a Directional Antenna, it concentrates RF energy in a specific direction, providing 11dBi Antenna Gain.

    • Compared to omnidirectional antennas, the high-gain directional characteristic significantly extends the communication range, enabling reliable Long-Range Wireless Signal Transmission. It is the ideal Antenna choice for building point-to-point or sector coverage networks.

  2. Professional Wall-mounted Panel Design:

    • Features a sleek appearance and a weather-resistant white panel enclosure, suitable for indoor and outdoor Installation, especially Wall Mounting, ensuring easy deployment and integration.

    • The panel structure is designed to be low-profile and unobtrusive while ensuring excellent Antenna Performance.

  3. High-Quality Connector and Cable:

    • The antenna is equipped with a low-loss pigtail cable terminated with a standard RF connector (such as the N-Male or BNC-Male type shown in the image, the specific model may vary), ensuring efficient RF Signal transmission and a reliable connection.

    • The impedance is typically standard  (Ohms), compatible with most wireless devices.

  4. Excellent Frequency and Antenna Performance Metrics:

    • Precisely tuned to the 915 MHz Frequency, covering the 902MHz to 928MHz ISM band, ensuring minimal Voltage Standing Wave Ratio (VSWR) for maximum Signal Efficiency.

    • The directional radiation pattern effectively suppresses interference from non-target directions, improving Network Performance and Signal Quality.


Application Scenarios (Use Cases)


This 915MHz Directional Panel Antenna is a core component for various advanced wireless systems, including:

  • LoRa/LoRaWAN Network Deployment: Serving as an External Antenna for a LoRa Gateway to achieve wide-area coverage and remote data collection in Smart Cities, Industrial IoT (IIoT), Agriculture, and Environmental Monitoring.

  • Helium Hotspot/Miner: Enhancing the coverage range and Data Throughput of Helium Hotspots to optimize Wireless Network earnings.

  • RFID Systems: Used for large-scale Asset Tracking and Inventory Management, improving the accuracy and distance of Wireless Identification.

  • Point-to-Point (PTP) or Point-to-Multipoint (PTMP) Bridging: Establishing reliable wireless data links between buildings or within specific areas.

  • M2M and Remote Telemetry: Applications such as smart metering, remote control, and security monitoring that require stable Low-Power Wide-Area Network (LPWAN) communication.

Choose this 915MHz High-Gain Directional Antenna to inject powerful performance into your wireless communication system, achieving greater distance, more reliable connections, and optimized Frequency Utilization.

Please note: The connector type shown in the image is for reference only; please refer to the actual model specifications. It is recommended to use it with a low-loss RF cable to maximize antenna performance.
