This high-performance, weather-resistant 4G Outdoor Panel Log-periodic Antenna is engineered to significantly boost signal strength and reliability for a wide range of cellular and data applications. Leveraging its directional, high-gain design, this antenna is the perfect solution for users in rural areas, signal-challenged buildings, or demanding M2M/IoT scenarios, ensuring a stable and fast connection across all major 4G/LTE, 3G, and 2G bands.
Unparalleled Ultra-Wide Frequency Coverage
Designed for maximum compatibility and future-proofing, this antenna operates across an exceptionally broad frequency spectrum. It ensures seamless integration with virtually any global cellular network. The key operational bands are:
This wide-span capability allows a single antenna to support multiple carriers and technologies, including the crucial lower-frequency bands that penetrate structures better and cover longer distances.
High-Gain Performance for Maximum Range and Speed
The log-periodic design is known for delivering consistent, high-gain performance across its entire frequency range. This directional gain concentrates the signal energy, dramatically improving both reception and transmission quality.
| Frequency Range | Nominal Peak Gain |
| 698-800MHz | 8.5dBi |
| 800-960 MHz | 9dBi |
| 1710-2700MHz | 10dBi |
This impressive gain ensures that your cellular modem or booster system receives the strongest possible signal, leading to higher data transfer rates and fewer dropped connections.
⚡ Superior Signal Quality with Low VSWR

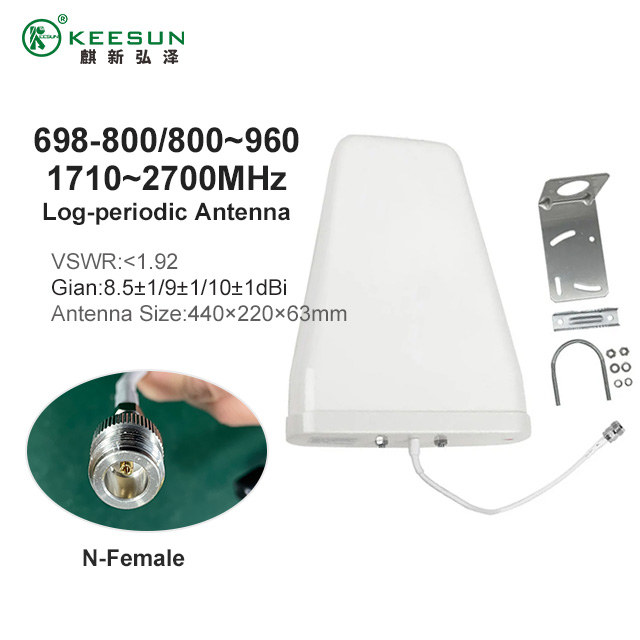

A crucial metric for antenna efficiency is the Voltage Standing Wave Ratio (VSWR). The image clearly indicates a VSWR ＜1.92 (across the specified bands). A low VSWR minimizes power reflection back to the radio, meaning a maximum amount of the signal is efficiently radiated (when transmitting) or captured (when receiving). This directly translates to less wasted energy and better, more reliable signal throughput.
️ Rugged Construction and Easy Installation
Housed in a durable, white protective enclosure, this panel antenna is built to withstand harsh outdoor environments, making it ideal for permanent, long-term installations.
Antenna Dimensions: 440*220* 63 mm
Weatherproof Casing: Designed for outdoor mounting.
Included Hardware: Comes with robust mounting brackets and a U-bolt kit for simple pole or wall installation.
Seamless Connection: N-Female Connector and LMR195 Cable
The antenna is terminated with a high-quality, professional-grade N-Female connector, known for its excellent low-loss characteristics and secure, weatherproof mating with external cables. The product is supplied with an integrated LMR195 type cable, which offers a superior balance of flexibility and low attenuation compared to standard cables, ensuring that the high-gain signal is delivered efficiently to your device.
Key Technical Summary:
| Feature | Specification |
| Product Name | 4G Outdoor Panel Log-periodic Antenna |
| Frequency Range | 698-2700MHz |
| VSWR | <1.92 |
| Peak Gain (Max) | 10dBi |
| Polarization | Vertical (typically) |
| Connector Type | N-Female |
