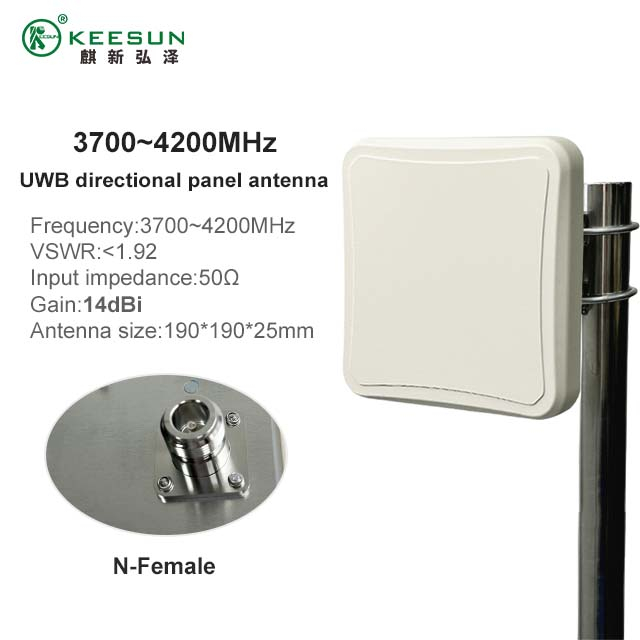

3700~4200MHz 14dBi High Gain Waterproof Panel Directional Antenna: The Preferred Choice for Accurate Coverage and Stable Transmission in Outdoor Communications
In scenarios such as 5G base station supporting, outdoor wireless monitoring, and long-distance communication in enterprise parks, the stability, coverage range, and anti-interference capability of signals directly determine the quality of communication. This 3700~4200MHz 14dBi High Gain Waterproof Panel Directional Antenna , with its accurate frequency band adaptation, powerful signal enhancement performance, and reliable waterproof design, has become a core device for addressing communication needs in complex outdoor environments, providing efficient and stable signal transmission support for various wireless communication systems.
1. Accurate Frequency Band Adaptation to Meet Mainstream Communication Needs
The antenna accurately covers the 3700~4200MHz frequency band, perfectly matching the key communication range in the 5G Sub-6GHz frequency band. It is also compatible with the frequency band requirements of scenarios such as industrial wireless data transmission, outdoor WiFi6/7 expansion, and wireless monitoring backhaul. Whether it is for signal blind spot compensation of operator 5G base stations or long-distance data interaction between outdoor enterprise devices, it can achieve seamless frequency band connection, avoid transmission loss caused by mismatched signal frequency bands, and ensure the compatibility and stability of the communication link.
2. 14dBi High Gain Design to Break Through Signal Transmission Limitations
Compared with the gain level of 8-12dBi of ordinary panel antennas, the 14dBi high gain feature of this product brings significant advantages: under the same transmission power, it can increase the signal transmission distance by more than 40%, and the effective coverage radius can reach hundreds of meters (the specific distance needs to be adjusted according to the transmission equipment power and environmental obstacles); at the same time, it can enhance the signal reception sensitivity and reduce packet loss and delay problems in weak signal environments. For example, in the outdoor park monitoring scenario, even if the distance between the monitoring equipment and the computer room exceeds 300 meters, stable backhaul of 1080P high-definition video can still be achieved after matching with this antenna, without freezing or screen tearing, meeting the real-time monitoring needs.
3. IP67 Waterproof Protection to Adapt to Complex Outdoor Environments
As an antenna specially designed for outdoor scenarios, this product adopts a fully sealed waterproof structure . The shell is made of weather-resistant ABS material, and the surface is treated with anti-ultraviolet and anti-corrosion processes, with a protection level reaching IP67 standard. Whether it is heavy rain, heavy snow, high-temperature exposure, or the high-salt fog environment in coastal areas, the antenna can maintain stable operation without frequent maintenance, greatly reducing the operation and maintenance cost of outdoor communication systems. It is especially suitable for applications in harsh environments such as base station construction, mountain wireless coverage, and bridge and tunnel monitoring.
4. Directional Radiation Characteristics to Improve Signal Utilization and Anti-Interference Capability
The core advantage of the panel directional antenna lies in its directional radiation angle (horizontal beamwidth is approximately 65°, vertical beamwidth is approximately 30°, subject to actual parameters). It can concentrate signal energy in the target coverage area, avoid signal diffusion to irrelevant directions, and greatly improve signal utilization. At the same time, the directional feature can effectively reduce interference signals from non-coverage directions (such as clutter from other base stations and wireless devices), reduce the signal bit error rate, and ensure communication quality. For example, in an enterprise park, the antenna angle can be adjusted to accurately cover core areas such as office buildings and workshops, avoiding signal interference to surrounding residential areas, while reducing the impact of external interference on internal communication.
5. Convenient Installation and Adaptation to Reduce Deployment Difficulty
The antenna adopts a lightweight design, weighing only about 1.2kg (subject to the actual product). Equipped with a dedicated mounting bracket, it can realize multiple installation methods such as wall-mounted and pole-mounted. The installation process does not require complex tools and can be completed by a single person. In addition, the antenna interface adopts a standard N-type female connector (or can be customized according to requirements), which is compatible with mainstream wireless APs, base station equipment, bridges, and other communication terminals on the market. No additional adaptation accessories are needed, which greatly reduces the difficulty of system deployment and shortens the project construction cycle.
Application Scenarios
Outdoor Wireless Monitoring: Supports long-distance signal backhaul of monitoring equipment, suitable for scenarios such as scenic spots, factory areas, and transportation roads;
With core advantages of "high gain, strong protection, and accurate directionality", this 3700~4200MHz 14dBi High Gain Waterproof Panel Directional Antenna fully adapts to outdoor communication needs from technical performance to practical application scenarios. It is an ideal choice for improving the stability of wireless communication systems, expanding coverage range, and reducing operation and maintenance costs.
