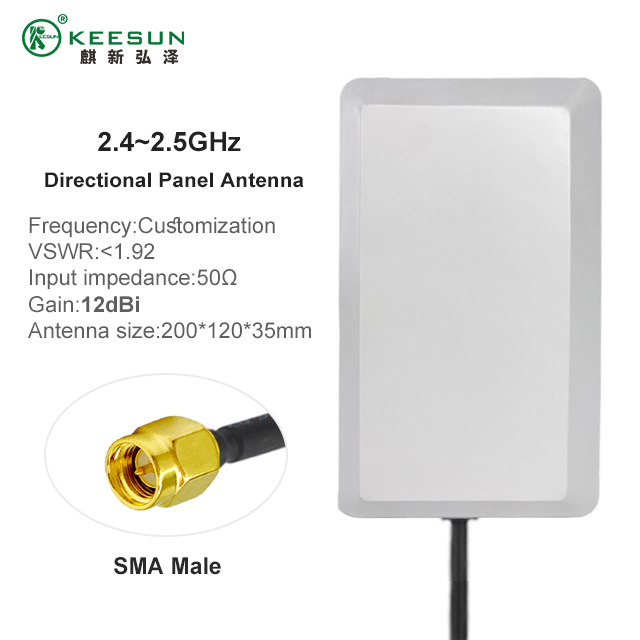

This 2.4G Directional Panel Plate Antenna is specifically engineered for applications demanding long-range, high-gain, and highly stable directional wireless connectivity. Its compact geometric profile and robust housing design, combined with a low-loss LMR200 cable, ensure exceptional signal coverage and penetration performance in various complex environments.
I. Core Product Performance
| Feature Category | Performance Description | Technical Advantage |
| Operating Frequency | 2.4-2.5GHz | Full coverage of the most widely used global Wi-Fi and ISM frequency bands, ensuring broad compatibility. |
| Directivity | High-Gain Directional Radiation | Concentrates wireless energy in a specific direction, effectively increasing signal transmission distance and reception sensitivity while reducing interference from the sides and rear. |
| Cable Configuration | Equipped with LMR200 Low-Loss Cable | LMR200 is a high-performance, low-loss cable that exhibits significantly less signal attenuation at the 2.4G band compared to traditional cables like RG-58, ensuring maximum antenna gain is delivered to the device. |
| Structural Design | Rectangular panel design with weather-resistant enclosure | Low-profile, compact, and robust. The white or light-colored housing typically offers excellent UV protection and waterproofing, suitable for long-term indoor and outdoor use. |
| Connector Type | SMA-Male | Ensures standard connection compatibility with industrial routers, Access Points (AP), and wireless bridges. |
II. Product Application Scenarios
Thanks to its high directional gain and durable characteristics, this 2.4G Directional Panel Plate Antenna excels in the following scenarios:
1. Wireless Bridge (Point-to-Point/Point-to-Multipoint Communication)
Application Purpose: To establish a stable, high-speed wireless data link between two buildings or distant locations.
Advantage Highlighted: High directivity ensures the signal is focused on the receiving end, effectively overcoming distance attenuation to achieve reliable long-range network extension. It is ideal for wireless surveillance systems and inter-building corporate network connections.
2. Industrial IoT (IIoT) and SCADA Systems
Application Purpose: To provide reliable Wi-Fi or ISM band communication for remote control and data acquisition systems in industrial environments such as large factories, mining sites, or oil fields.
Advantage Highlighted: The rugged, waterproof enclosure and directional capability allow it to withstand harsh industrial environments and precisely cover target control equipment, guaranteeing data transmission continuity and security.
3. In-Building Wi-Fi Coverage Enhancement
Application Purpose: To directionally project Wi-Fi signals into hard-to-cover areas such as large warehouses, underground parking lots, or multi-story office buildings.
Advantage Highlighted: Easy to mount on walls or ceilings, it can penetrate minor obstructions and concentrate signal strength and quality in a specific direction or zone.
4. Video Surveillance Systems (CCTV)
Application Purpose: To wirelessly backhaul high-definition surveillance camera video streams to a central recording server.
Advantage Highlighted: Provides a high-bandwidth, low-latency directional link, ensuring the video streams are stable and clear.
Welcome to the Keesun Antenna Factory to customize your antennas. We offer you an end-to-end solution from design to manufacturing!
