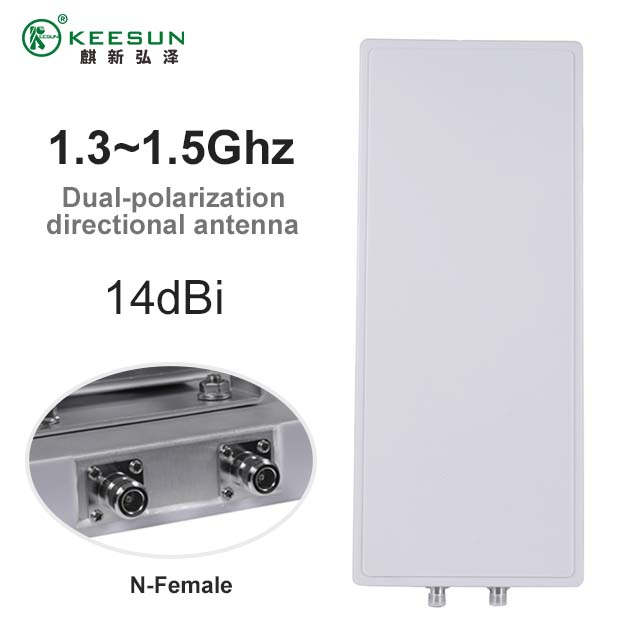

In the specialized fields of long-range telemetry, video transmission, and dedicated wireless links, a precise and reliable antenna is paramount. Our 1.3-1.5 GHz 14 dBi Panel Directional Antenna, uniquely featuring an integrated capability for the 5.8 GHz band and equipped with two N Female Connectors, is engineered to provide superior dual-band performance from a single, compact unit. This antenna is the optimal choice for professional applications demanding high gain, robust construction, and simultaneous operation across distinct frequency spectra.
Key Product Features and Technical Superiority
This panel antenna is not a standard single-band device; its specialized design allows it to efficiently operate across two critical, non-contiguous frequency ranges, offering exceptional versatility and efficiency.
High Gain and Focused Directionality
The antenna is meticulously tuned to deliver a substantial 14dBi gain across the primary 1.3 to 1.5 GHz band. This significant gain concentrates radiated power into a narrow, directional beam, which is crucial for Point-to-Point (PtP) links and long-range Point-to-Multipoint (PtMP) coverage. The focused beam minimizes interference from signals outside the transmission path and maximizes the Effective Isotropic Radiated Power (EIRP), ensuring a strong, reliable link even over extended distances or challenging non-line-of-sight environments.
Integrated Dual-Band Functionality
A standout feature is the antenna's ability to operate simultaneously or independently in the 5.8 GHz band (typically 5725MHz to 5850MHz or wider). This dual-band capability is achieved through an innovative internal design that allows the antenna to efficiently couple to both low- and high-frequency systems. This eliminates the need for a second antenna and mounting hardware, significantly reducing site clutter, installation costs, and wind load. The 5.8 GHz band, often used for high-bandwidth video or data, can be utilized alongside the 1.3-1.5 GHz band, facilitating complex system architectures.
Dual N Female Connectors for System Flexibility
The inclusion of two N Female connectors provides unparalleled flexibility in system integration. These robust, weather-sealed connectors (N-type) are the standard for outdoor RF applications requiring high durability and low signal loss. The dual connectors can be used in several configurations:
Separate Feeds: One connector for the 1.3-1.5 GHz radio system and the second connector for the 5.8GHz radio system.
Polarization Diversity: In some advanced configurations, the connectors may support dual-polarization (Vertical/Horizontal) for a single band, enhancing link resilience and throughput.
MIMO: Supporting Multi-Input Multi-Output technology in either the 1.3-1.5GHz or 5.8GHz band, provided the radio system is designed accordingly.
Rugged Weatherproof Construction

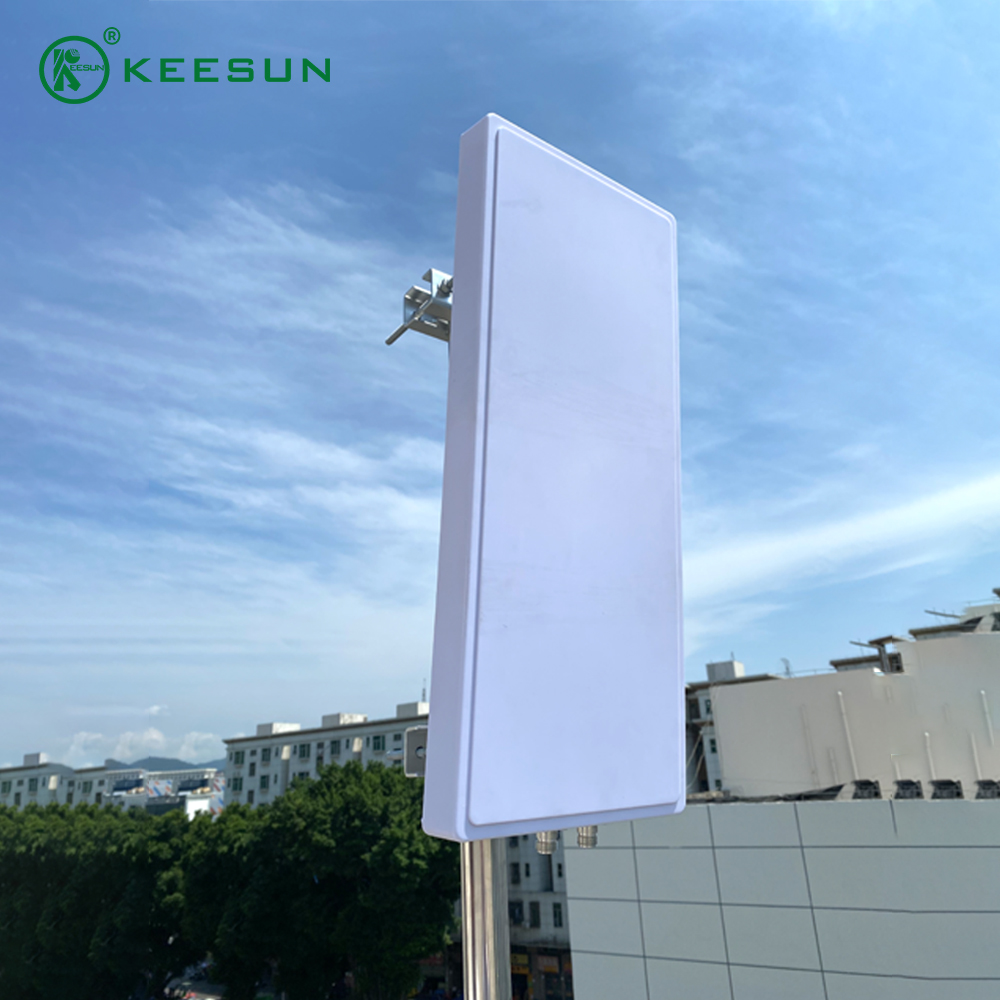

Built for continuous outdoor operation, the panel antenna is housed in a durable, UV-resistant ABS radome and features heavy-duty aluminum mounting hardware. It is designed to meet high IP ratings (typically IP67), protecting the internal radiating elements from extreme weather conditions, moisture, dust, and temperature fluctuations, ensuring long-term operational stability and reliability.
Practical Applications and Usage Scenarios
The unique features of this dual-band panel antenna make it invaluable across specialized defense, commercial, and industrial applications.
Unmanned Systems (UAS/UAV) and Datalinks
In Unmanned Aircraft Systems (UAS) and drone operations, the 1.3-1.5 GHz band is frequently utilized for crucial command-and-control (C2) and long-range telemetry links due to its better penetration and longer range compared to higher frequencies. Simultaneously, the 5.8GHz} band can be used for high-bandwidth, low-latency video downlinks (FPV). This antenna allows a single ground station to manage both links through a single, compact antenna, simplifying deployment and reducing payload.
Military and Public Safety Communications
In tactical or public safety communications, the 1.3-1.5 GHz band often hosts proprietary or licensed communication channels that require high gain and directionality. This antenna enables the deployment of covert or mobile tactical communication links. The 5.8GHz band offers an unlicensed or dedicated pathway for backhauling data or establishing ad-hoc high-speed network extensions.
Specialized Wireless Video Transmission
For high-end wireless video systems in broadcasting, industrial monitoring, or surveillance, this antenna is critical. The 1.3-1.5 GHz band can provide a solid, interference-resistant primary link, while the 5.8GHz band offers a secondary, high-speed channel for redundancy or higher resolution streaming. The directional nature ensures signal focus, maximizing coverage and reducing vulnerability to interception.
Industrial Telemetry and SCADA
This antenna is well-suited for industrial telemetry and SCADA (Supervisory Control and Data Acquisition) systems deployed across vast areas like mines, pipelines, or utility grids. The low frequency offers excellent propagation for reliable control signals, and the 5.8GHz band provides a high-speed data path for network diagnostics or software updates, all managed through one dual-purpose antenna unit.
Why Choose Our Dual-Band Panel Antenna?
Dual-Band Efficiency: Single antenna covers critical 1.3-1.5GHz and 5.8GHz frequency ranges, simplifying site integration.
High 14dBi Gain: Ensures reliable, long-distance Point-to-Point (PtP) and Point-to-Multipoint (PtMP) links.
Dual N-Female Connectors: Provides maximum system flexibility for separate band feeds, MIMO, or polarization diversity.
Ruggedized Construction: Built for continuous outdoor operation in extreme industrial and tactical environments.
