This high-gain 5GHz Directional Plate Panel Antenna is expertly engineered for robust, long-range wireless links, delivering the reliable speed and stability demanded by modern high-density networks. Operating exclusively in the less-congested 5.15-5.85 GHz spectrum, this antenna is the ideal solution for point-to-point (PTP), point-to-multipoint (PTMP) links, and applications requiring focused, high-speed data transmission over significant distances.
Dedicated 5GHz Band Operation for Superior Performance
The antenna is specifically tuned for the 5 GHz band, utilizing the $5150-5850 \text{MHz}$ frequency range. This dedicated bandwidth is essential for modern networking standards, including 802.11a/n/ac/ax (Wi-Fi 5/6). By focusing solely on 5GHz, the antenna avoids the heavy interference and congestion often found in the 2.4 GHz band, ensuring maximum stability, lower latency, and support for higher throughput rates.
High Directional Gain for Extended Coverage
Achieving an impressive 12 dBi of directional gain, this panel antenna excels at concentrating the radio frequency (RF) energy into a narrow, focused beam.
12 dBi Gain: This high gain drastically extends the effective range of your wireless signal compared to standard omni-directional or lower-gain antennas.
Directional Focus: The concentrated beam minimizes interference from signals outside the line of sight, leading to a much cleaner and more reliable connection over long-distance links.
This makes it perfect for connecting two separate buildings (PTP) or serving a cluster of remote clients (PTMP) from a central access point.
Key Application Scenarios and Use Cases
The focused power and high gain of this antenna make it indispensable for several high-demand networking applications:
Point-to-Point (PTP) Bridging: Creating a high-speed wireless bridge between two buildings (e.g., campus environment, corporate offices) where running fiber is impractical or too costly.
Wireless Internet Service Providers (WISPs): Used as client-side equipment (CPE) or a sector antenna in a multi-point setup to deliver high-bandwidth service to subscribers.
Video Surveillance Backhaul: Establishing reliable links for transmitting high-definition, real-time video streams from remote security cameras back to a central recording station.
Extending Outdoor WiFi: Providing dedicated, strong 5GHz coverage to specific outdoor areas, such as patios, sports fields, or warehouse yards, where standard AP coverage is inadequate.
️ Rugged Plate Panel Design and Weather Resistance

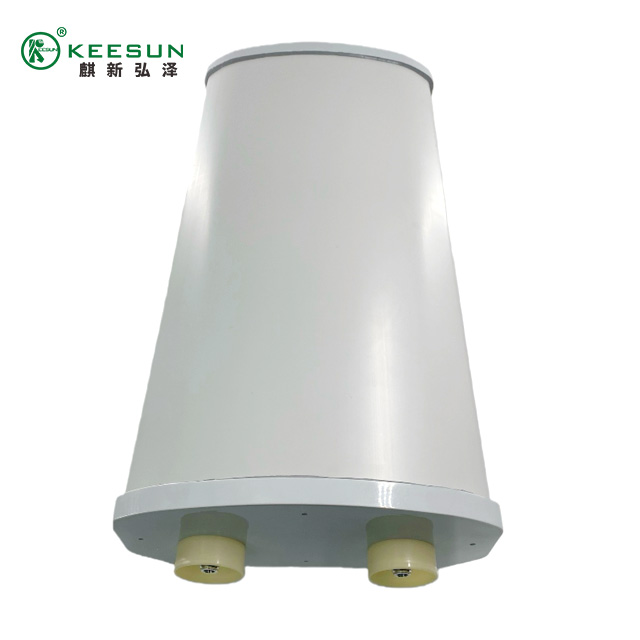

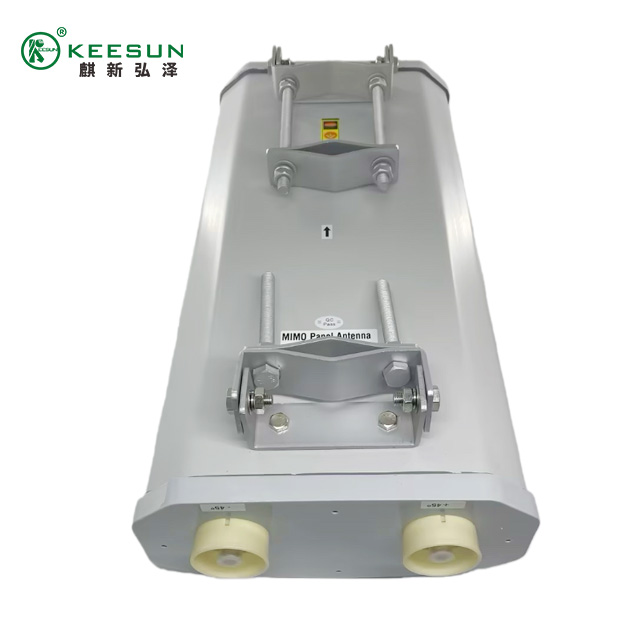

Constructed as a sealed plate panel, the antenna boasts a discreet, low-profile aesthetic while offering robust environmental protection.
Weatherproof Enclosure: Designed for permanent outdoor installation, the housing protects the radiating element from rain, snow, UV exposure, and temperature extremes.
Aesthetic and Durable: Its sleek panel design integrates well into various architectural settings, providing long-term reliability without being intrusive.
Optimized Integration for Network Devices
While specific connector details are not provided in the name, this type of professional antenna typically utilizes high-quality, low-loss connectors such as N-Female or RP-SMA, compatible with leading outdoor Access Points, CPEs, and routers (e.g., Ubiquiti, Mikrotik). The construction is designed to minimize cable losses, ensuring that the full 12 dBi of gain is effectively transferred to your network device.
Key Technical Summary:
| Feature | Specification |
| Product Name | 5GHz Directional Panel Antenna |
| Frequency Band | 698-960/1710-2700/3300-3800MHz |
| Nominal Gain | 12dBi |
| WiFi Standards | 802.11a/n/ac/ax (Wi-Fi 5/6) |
| Polarization | Linear (Vertical or Horizontal) |
| Application | PTP, PTMP, WISP Client, Long Range Link |

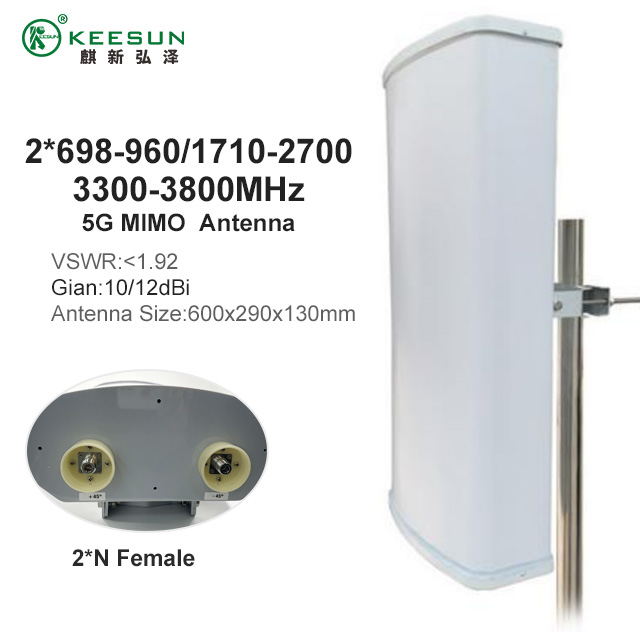

Tri-Band Frequency Coverage for Global Compatibility
This advanced sector antenna is engineered to support a massive range of wireless technologies, including 5G, 4G/LTE, 3G, GSM, MIMO, WIFI, WLAN, LORA, RFID, and GPS applications5. Its tri-band operation ensures comprehensive compatibility across essential global cellular and data frequencies:
This extensive frequency support makes it a versatile solution for carriers and service providers looking to consolidate hardware platforms.
