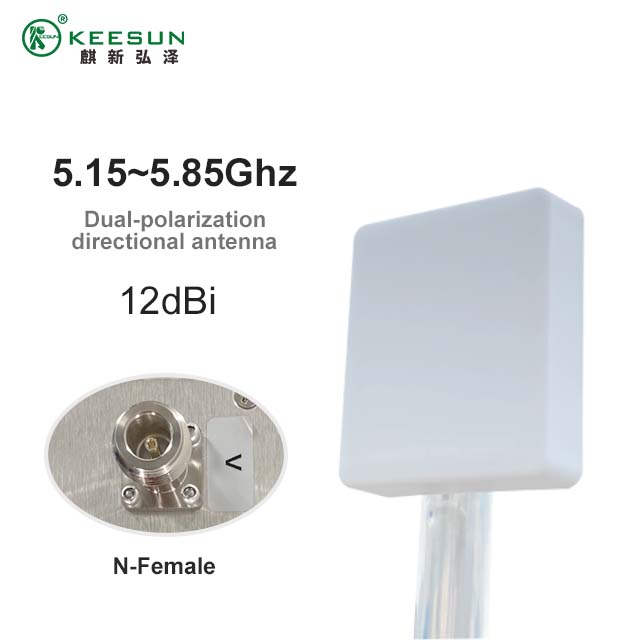

The 5.15-5.85 GHz 12 dBi Dual-polarization Directional Antenna is a professional-grade solution engineered to maximize the efficiency and reliability of wireless networking in the congested 5GHz band. By integrating dual-polarization technology into a high-gain, directional panel design and utilizing the robust N-Female Connector, this antenna is the ideal choice for demanding applications such as high-capacity Point-to-Point (PtP) links, complex Multi-Input Multi-Output (MIMO) systems, and specialized sector coverage for Wireless Internet Service Providers (WISPs).
Key Product Features and Technical Superiority
This antenna's core strength lies in its ability to transmit and receive signals simultaneously on both vertical and horizontal polarizations, providing a significant boost in data throughput and link stability over traditional single-polarization designs.
High Gain and Extended Frequency Range
The antenna delivers a consistent 12dBi gain across the critical 5.15GHz to 5.85GHz frequency range. This wide operational bandwidth ensures full compatibility with the globally recognized unlicensed 5GHz spectrum, including the entire UNII-1, UNII-2 Extended, and UNII-3 bands, supporting all standard 802.11a/n/ac/ax Wi-Fi and proprietary high-capacity wireless protocols. The 12dBi gain focuses the RF energy into a tight, directional beam, dramatically increasing the effective range (link budget) and minimizing interference from sources outside the primary coverage zone.
Dual-Polarization (V/H) for MIMO and Link Redundancy
The incorporation of dual-polarization—simultaneous support for both vertical and horizontal signal planes—is the defining feature of this antenna. This capability is essential for modern high-speed wireless networks utilizing MIMO (Multiple-Input Multiple-Output) technology. By separating the data stream into two distinct polarized channels, the antenna effectively doubles the potential data throughput over the same frequency channel. Furthermore, dual-polarization significantly improves link resilience by providing spatial diversity. If one polarization experiences fading due to obstacles or reflections, the other polarization can often maintain a strong link, leading to greater stability and less susceptibility to signal dropout.
Durable N-Female Connector Interface
The antenna is equipped with a high-quality, weather-sealed N-Female Connector. The N-type connector is the industry standard for outdoor, high-power RF applications due to its robust thread coupling, excellent durability, and superior low-loss characteristics at microwave frequencies. The use of a standard N-Female port ensures easy integration with common feeder cables (e.g., LMR-400 or equivalent) and guarantees a long-lasting, reliable connection, minimizing signal degradation caused by environmental exposure.
Rugged Outdoor Panel Design
The antenna is housed within a durable, low-profile panel radome constructed from UV-resistant materials. Designed for permanent outdoor installation, the housing is built to withstand extreme weather conditions, including heavy rain, snow, and high winds (typically meeting IP67 rating). The sleek panel design also minimizes wind load compared to larger dish antennas, easing installation and reducing stress on mounting structures.
Practical Applications and Usage Scenarios
The dual-polarization and high-gain characteristics make this antenna critical for professional wireless deployments requiring maximum throughput and range in the 5GHz band.
High-Capacity Point-to-Point (PtP) Backhaul
This antenna is primarily used for establishing high-throughput Point-to-Point backhaul links between buildings or towers. By leveraging its 12dBi gain and dual-polarization, network engineers can achieve gigabit-level throughput over several kilometers, making it an essential component for interconnecting local area networks (LANs), data centers, and remote facilities without the cost of leased fiber lines.
WISP Customer Premises Equipment (CPE) and Basestations
For Wireless Internet Service Providers (WISPs), this antenna can serve a dual role. It can be used as high-gain Customer Premises Equipment (CPE) on the subscriber end to pull in a strong signal from a distant access point. Alternatively, it can be deployed at a basestation as a sector antenna element, focusing coverage on a narrow, high-density service corridor or a remote cluster of subscribers. Its MIMO capability ensures that subscribers with compatible CPE benefit from faster connection speeds.
High-Density Video Surveillance Networks
In large-scale security and video surveillance systems, the antenna is used to create robust wireless links for transferring high-resolution, bandwidth-intensive video streams from remote cameras back to a central network video recorder (NVR). The spatial diversity provided by dual-polarization ensures that the video link remains stable and resilient to environmental changes or line-of-sight obstructions that might cause single-polarization links to drop out.
Campus and Enterprise Network Extensions
Enterprises with distributed campuses or industrial complexes use this antenna to create reliable and cost-effective wireless bridges. It provides a dedicated, high-speed connection between distant buildings that is both highly secure and immune to the congestion found on general-purpose Wi-Fi channels, making it a critical asset for extending the corporate network infrastructure.
Why Choose Our Dual-Polarization Directional Antenna? (SEO Focus)
MIMO & High Throughput: Dual-polarization enables full utilization of MIMO technology, maximizing data rates over a single channel.
Wide 5 GHz Coverage: Full 5.15GHz to 5.85GHz support for all Wi-Fi and licensed/unlicensed protocols.
Link Stability: Spatial diversity improves link resilience and minimizes signal fading in challenging environments.
Professional Grade: 12dBi high gain and robust N-Female connector for professional, long-term outdoor deployment.
Ideal for WISP & Backhaul: Perfect solution for achieving reliable, long-distance, high-capacity PtP links.
