Tired of dropped connections and weak Wi-Fi signals over long distances? Our high-performance 2.4 GHz Directional Panel Antenna is the robust, high-gain solution you need for reliable outdoor wireless links, surveillance systems, and extended Wi-Fi coverage.

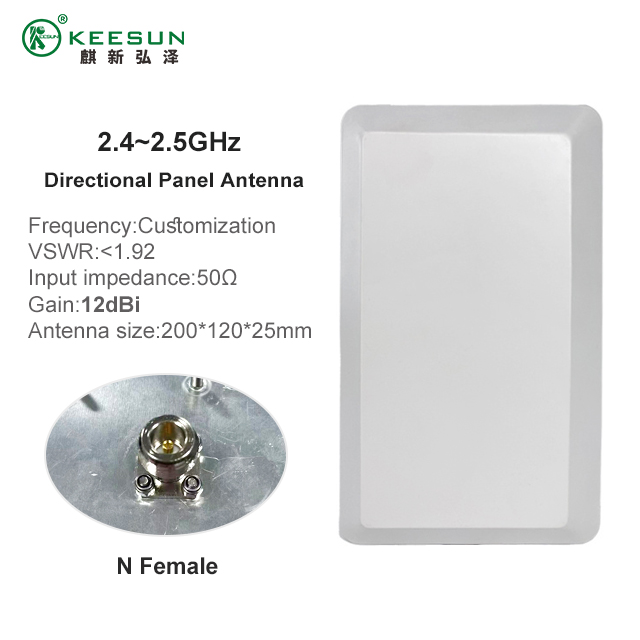

Key Features and Specifications
This antenna is designed for maximum efficiency and durability, ensuring a strong, focused signal where you need it most.
| Specification | Detail | Advantage for the User |
| Frequency Range | 2400 – 2500 MHz | Perfectly tuned for all Wi-Fi 802.11b/g/n, Bluetooth, and ISM applications. |
| Peak Gain | 11 dBi | Provides exceptional long-distance signal reach and deep penetration, overcoming signal barriers. |
| Connector | N-Female | Industry-standard, highly durable connector suitable for low-loss cable assemblies like LMR200, minimizing power waste. |
| VSWR | 1.92 | Guarantees minimal signal reflection (standing wave ratio) and maximum power transfer efficiency. |
| Waterproof Rating | IP65 | Fully protected against dust and water jets, making it ideal for permanent outdoor installations in harsh weather. |
| Impedance | 50 | Standard impedance for compatibility with nearly all routers, APs, and wireless bridges. |
| Polarization | Vertical | Standard polarization for most common directional point-to-point and point-to-multipoint applications. |

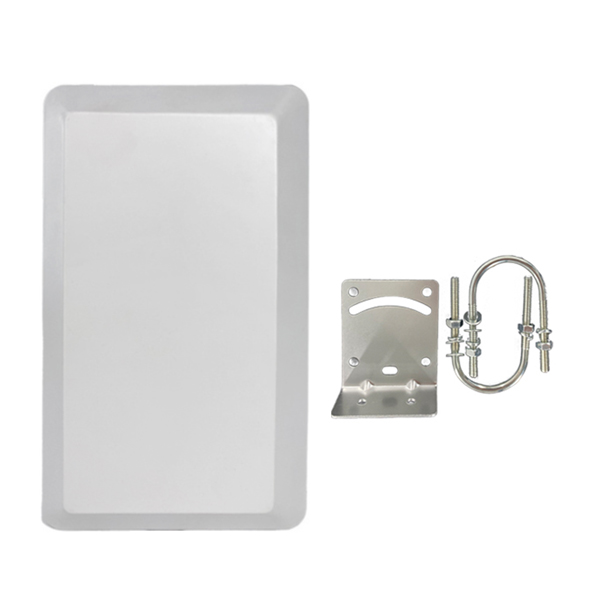

| Physical Size | 120x200x25mm | Compact and unobtrusive design, easy to mount on walls or poles. |
| Compliance | ROHS Compliant | Manufactured with environmentally friendly materials. |
Optimize Your Wireless Link: Performance Benefits
This 11 dBi directional antenna is engineered to solve the most common wireless connectivity problems:
Extended Range and Penetration: By concentrating the 11 dBi of gain into a narrow beam, the antenna significantly increases the effective radiated power (ERP), allowing you to establish reliable connections over distances where standard omnidirectional antennas fail.
Noise Reduction (High Directivity): The directional design inherently rejects unwanted signals and noise coming from the sides and rear. This results in a cleaner signal and better throughput (data speed), especially in congested 2.4 GHz environments.
Maximum Efficiency: A low VSWR of 1.92 ensures that almost all the power from your radio is radiated out, instead of being reflected back, boosting the antenna's efficiency.
All-Weather Reliability: The robust housing and IP65 rating ensure the antenna operates flawlessly in temperatures ranging from -40to +80℃.
Ideal Application Scenarios
This antenna is the optimal choice for professional installations requiring focused, long-distance 2.4 GHz communication:
Wireless Video Surveillance (CCTV): Establish reliable, high-bandwidth backhaul links for IP cameras scattered across large properties, farms, or industrial complexes.
Point-to-Point (PtP) Networking: Create dedicated wireless bridges between two buildings (e.g., office branches, campus buildings) to share internet access or data.
Industrial IoT (IIoT) & SCADA: Provide a focused, stable wireless connection for monitoring and control systems in factories, warehouses, or remote sensor networks.
Directional Wi-Fi Extension: Precisely target a distant area to provide strong Wi-Fi access or connect a client device.
Customization and Connection Options
The antenna comes standard with a durable N-Female connector, providing a superior connection point. We offer full flexibility to meet your deployment needs:
Cable Options: Available with LMR200 coaxial cable(recommended for low loss) or customizable cable types and lengths.
Connector Options: While N-Female is standard, we can accommodate customized connector types to match your specific radio hardware.
Upgrade to a reliable, durable, and high-gain solution today. Contact us now to learn more about how this directional antenna can solve your connectivity challenges!
