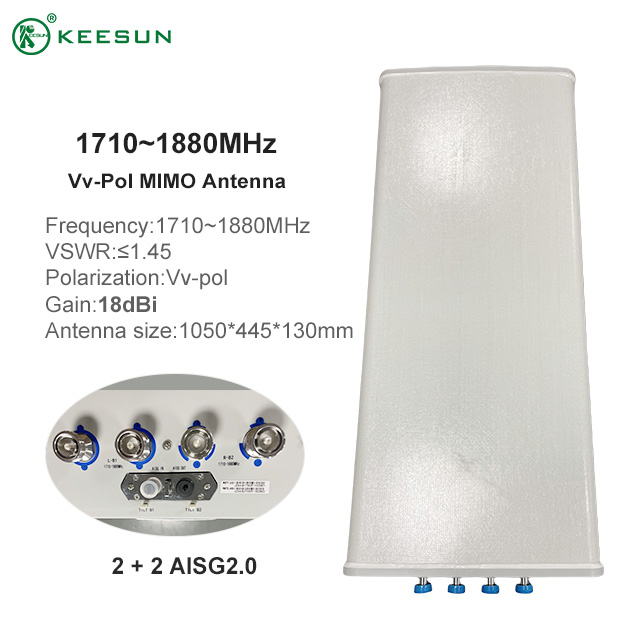

This high-performance directional panel antenna is engineered to meet the rigorous demands of modern telecommunications infrastructure. Specifically designed for the crucial 1710MHz to 1880MHz frequency band, it delivers exceptional long-range coverage and robust signal stability. With a powerful 18dBi gain and precise beamforming capabilities, this antenna is the ideal solution for enhancing network capacity and coverage in densely populated or geographically challenging areas. Its rugged construction and advanced connectivity options make it a reliable cornerstone for any next-generation base station deployment.
️ Key Technical Specifications for Optimal Performance
Understanding the core metrics is essential for network planners and engineers. This antenna's specifications are tailored for superior performance in its operational band:
Frequency Range: 1710MHz – Perfectly covers essential 2G (GSM 1800), 3G (UMTS/WCDMA), and 4G (LTE) frequency allocations in this spectrum.
High Gain: 18dBi – This high gain ensures maximum signal reach (long range) and improved uplink/downlink budget, crucial for maintaining quality service over vast distances.
Dimensions (LWD): 1050*445*130{mm – Its optimized size provides a balance between high gain area and manageability for installation.
Polarization Mode: 45(Dual Slant) – The dual-polarized design is mandatory for modern MIMO (Multiple-Input Multiple-Output) systems, significantly improving data throughput and spectral efficiency.
Connector Configuration: 2 + 2 AISG 2.0 – Features two RF connectors for the dual-slant elements, plus two dedicated AISG 2.0 connectors. The inclusion of AISG 2.0 ensures seamless remote electrical tilt (RET) functionality, enabling network operators to adjust the vertical beam electronically for precise optimization without manual site visits.
Beamwidth (H/V): 65° Horizontal (H)/ 30°Vertical (V) – The 65° horizontal beamwidth offers excellent sector coverage, while the narrower 30°vertical beam helps concentrate energy for long-distance propagation and effective interference management.
Core Application Scenarios: Where This Antenna Excels
This directional panel antenna is a versatile asset in telecommunication network architecture, designed for several high-impact use cases:

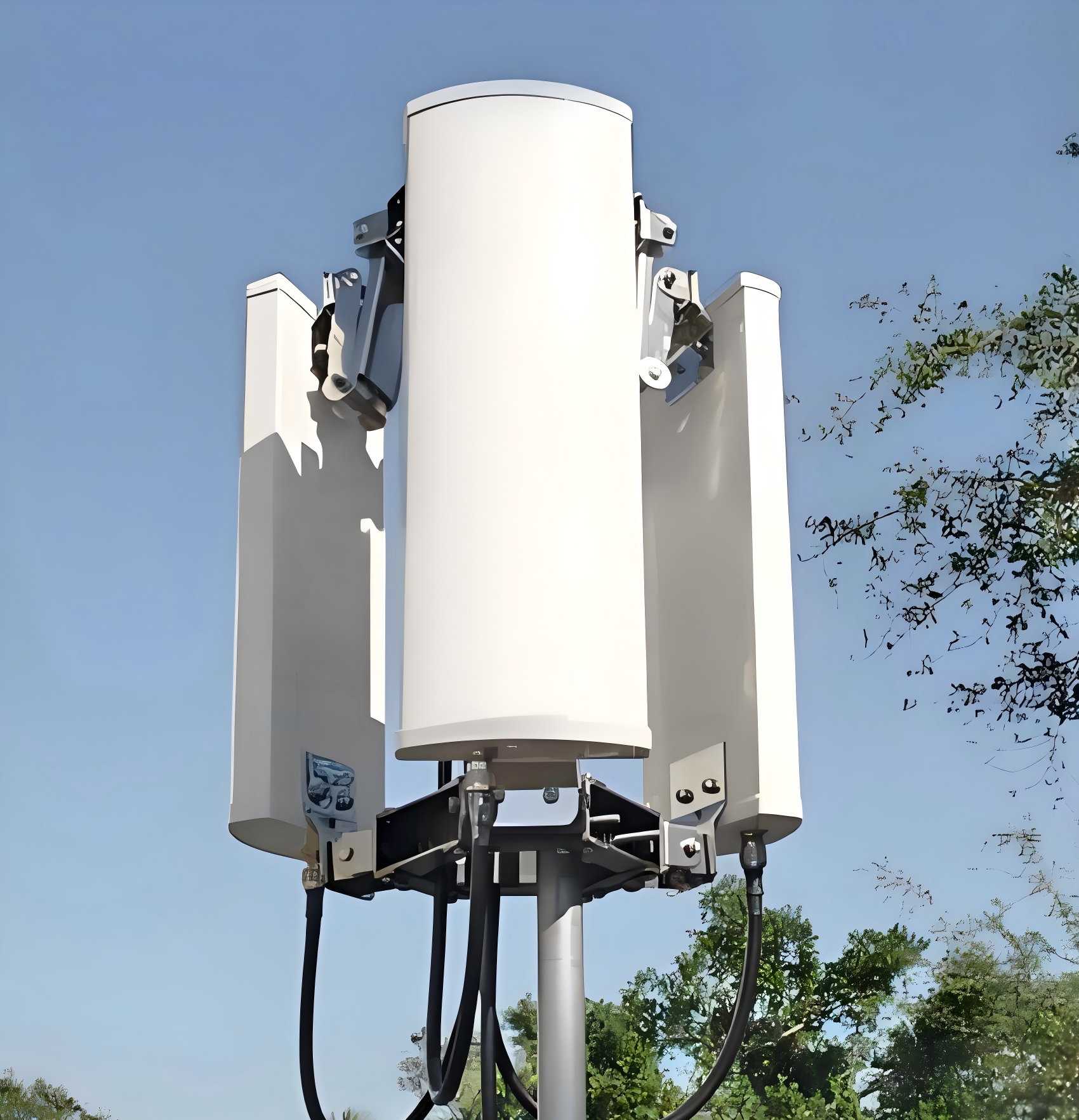

LTE and 5G (Pre-5G NR) Infrastructure: Ideal for base stations operating within the 1710-1880MHz band, serving as the main sector antenna to deliver high-speed 4G LTE services to a wide coverage area.
Rural and Long-Distance Coverage: The 18dBi high gain and focused directional pattern are perfectly suited for extending network reach to underserved rural communities, highways, and challenging geographical terrain where signal propagation is difficult.
Capacity Overlay and Microcell Integration: Can be strategically deployed in dense urban areas as a capacity layer, or used in smaller-scale microcell setups to fill coverage gaps and handle high traffic volumes in specific hot zones.
Network Optimization (RET): The integrated AISG 2.0 connectors allow for crucial Remote Electrical Tilt (RET) functionality. This enables dynamic network optimization by precisely adjusting the vertical downtilt to control coverage footprint and minimize inter-cell interference, maximizing overall network quality (QoS).
Private Network Deployment (e.g., Enterprise/Campus): Suitable for building private wireless networks that require reliable, high-throughput, and long-range directional links across large industrial sites, military bases, or expansive university campuses.
Why Choose This Antenna
Maximized Uplink/Downlink: The 45° Dual Polarization supports advanced MIMO techniques, directly translating into higher data rates and improved customer experience for bandwidth-intensive applications.
Future-Proof Connectivity: Integration of the standard AISG 2.0 protocol ensures compatibility with most modern Base Band Units (BBUs) and simplifies network management, saving operational costs (OPEX) over the antenna's lifecycle.
Superior Interference Management: The relatively narrow 30°Vertical Beamwidth minimizes signal spillover, effectively reducing vertical interference and improving the C/I (Carrier-to-Interference) ratio, which is critical for network stability.

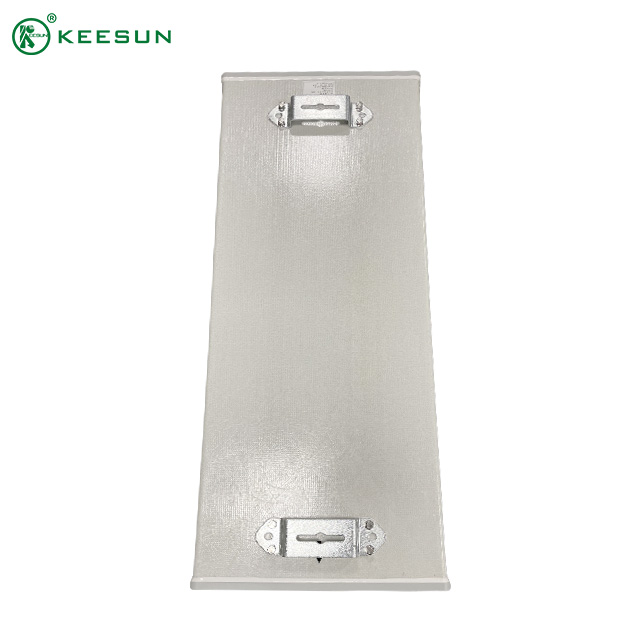

Durable and Weather-Resistant Build: Constructed with high-quality, UV-resistant materials, this panel antenna is designed to withstand harsh environmental conditions, guaranteeing long-term reliability and minimal maintenance requirements.
Focused Long Range Directional: The18dBi gain confirms its status as a Long Range Directional Panel Antenna, specifically optimized for maximizing cell radius and serving distant User Equipment (UE).
