Designed for high-density wireless communication and multi-directional coverage, this dual-band 8-sector circular array antenna delivers exceptional long-range performance and interference mitigation across both 2.4 GHz (2400–2500 MHz) and 5 GHz (5150–5850 MHz) spectrums. Featuring a synchronized 360° multi-sector arrangement, it optimizes signal beamforming and spatial efficiency for enterprise networks, WISPs, and smart infrastructure.
Key Features & Technical Specifications

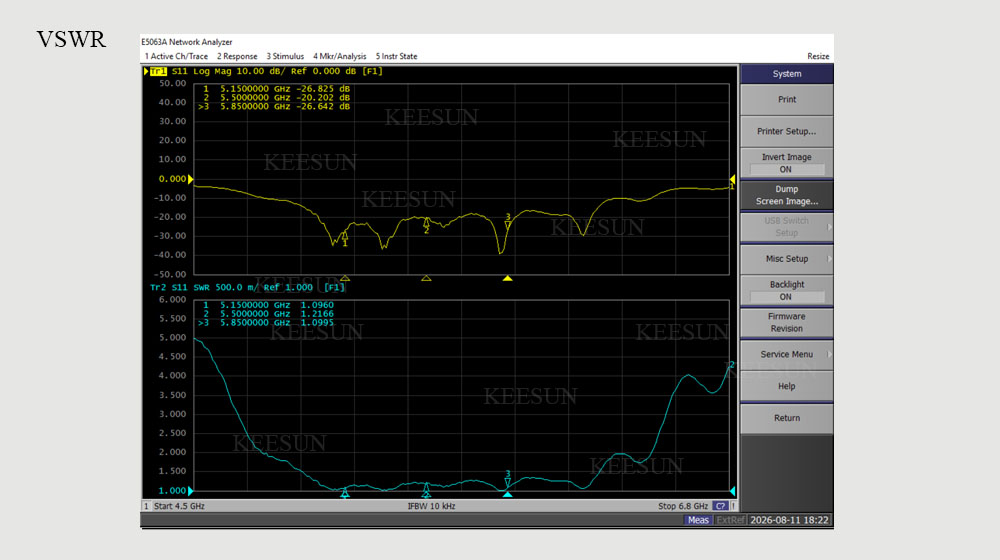

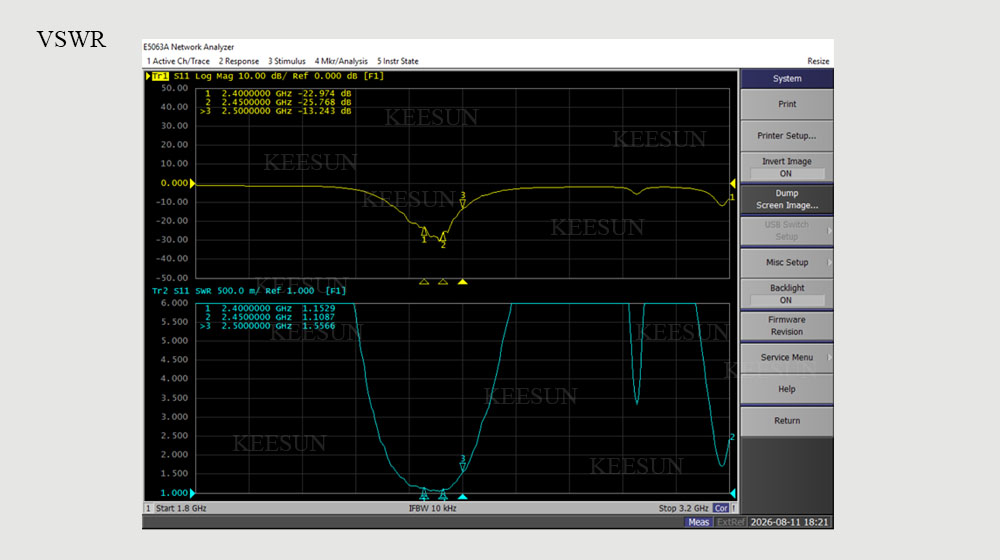

Operating Frequencies: Dual-Band 2400–2500 MHz & 5150–5850 MHz
Peak Gain: 11 dBi high-gain directional coverage per sector

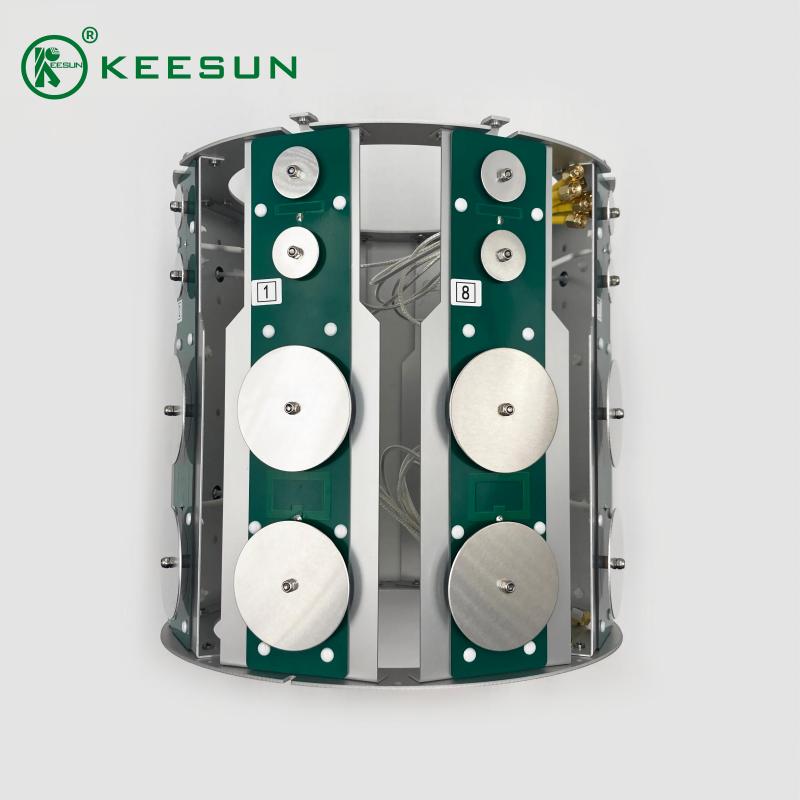

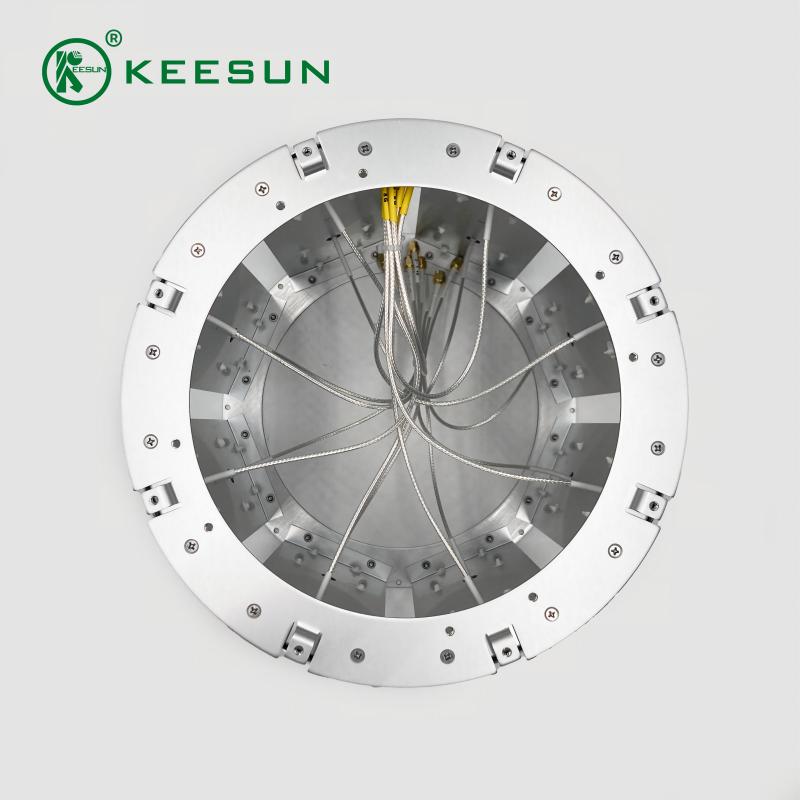

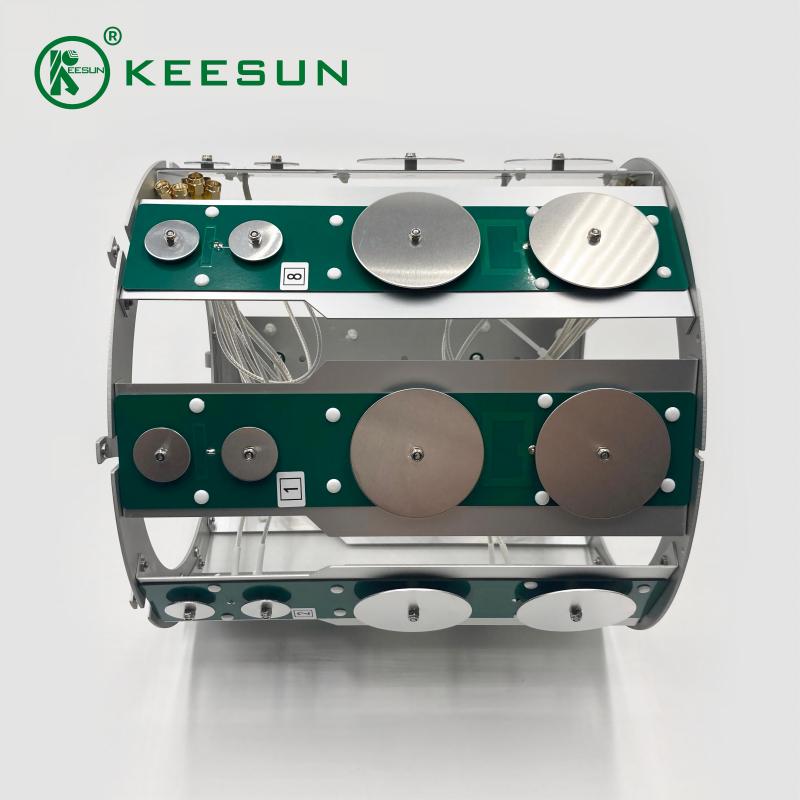

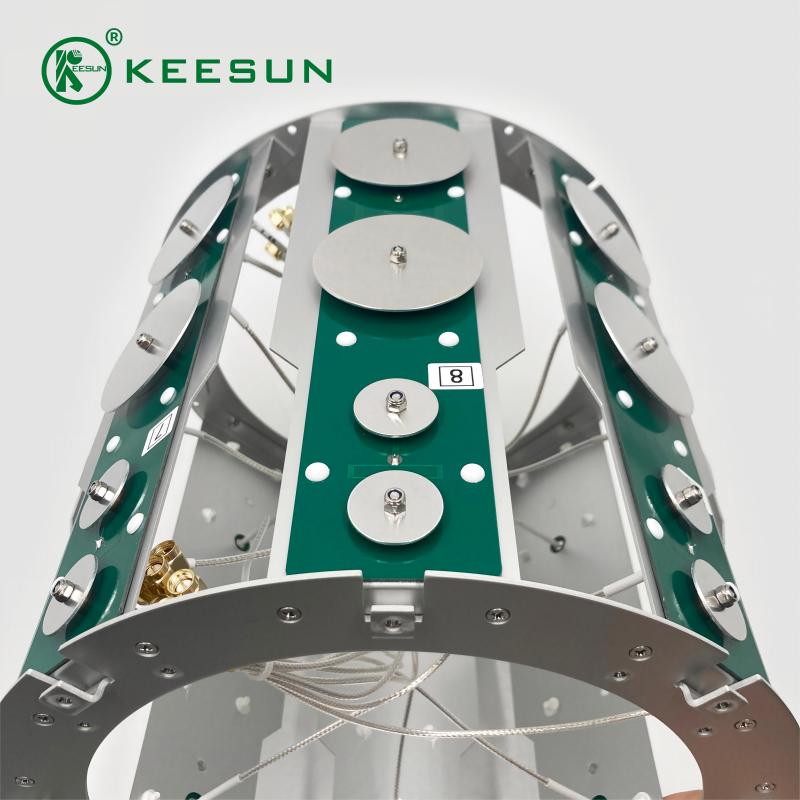

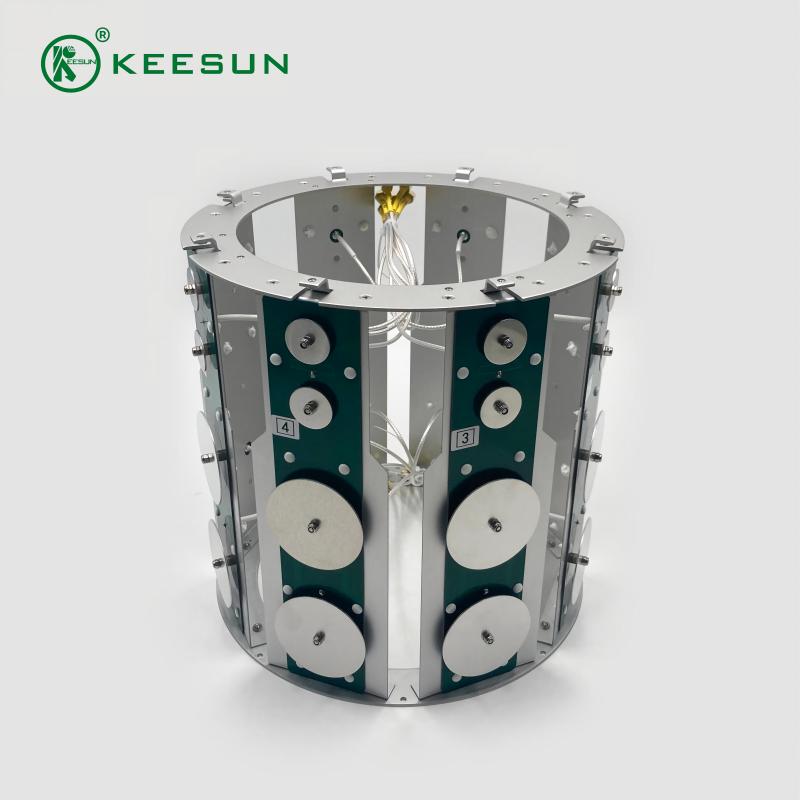

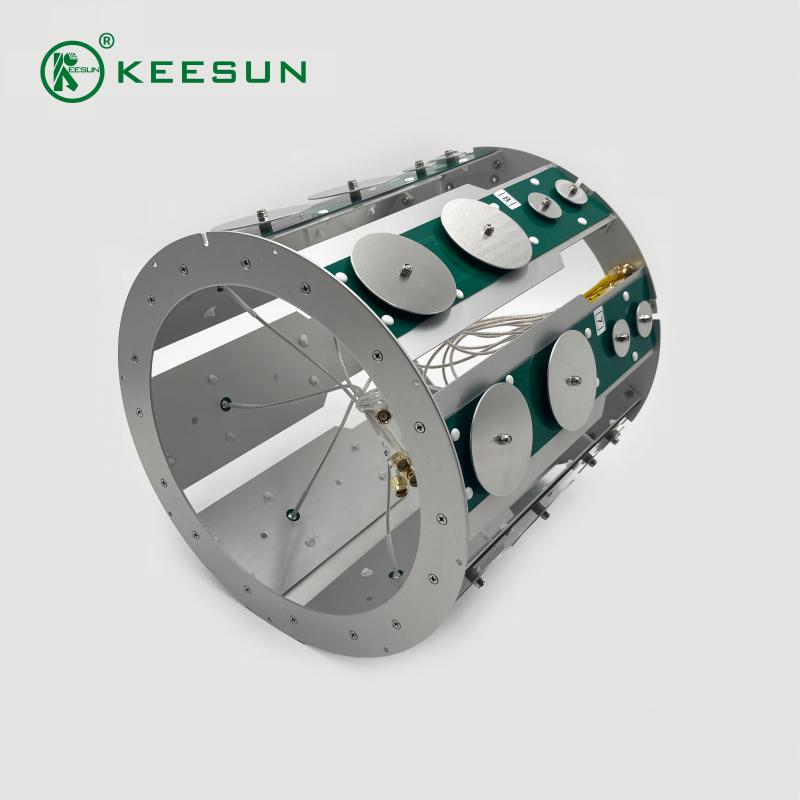

Radiation Pattern: 360° full-angle coverage via 8 distinct sectorized array elements
Interference Suppression: High front-to-back ratio reduces cross-talk in dense RF environments
Durability: All-weather, UV-stabilized radome rated for extreme outdoor exposure (IP67)
Mounting & Deployment: Heavy-duty pole-mount hardware with low wind-load profile
Primary Application Scenarios
Wireless Internet Service Providers (WISPs): Provides high-capacity 360-degree base station coverage to deliver reliable Last-Mile broadband to residential and commercial subscribers.
Smart Cities & IoT Networks: Acts as a centralized communications hub for municipal IoT sensors, IP surveillance cameras, and traffic management systems.
Large Outdoor Venues & Stadiums: Manages high client density by dividing coverage into 8 targeted sectors, significantly reducing co-channel interference compared to traditional omni-directional antennas.
Industrial & Campus Connectivity: Delivers robust wireless mesh backhaul and point-to-multipoint (PtMP) links across university campuses, ports, warehouses, and mining sites.
