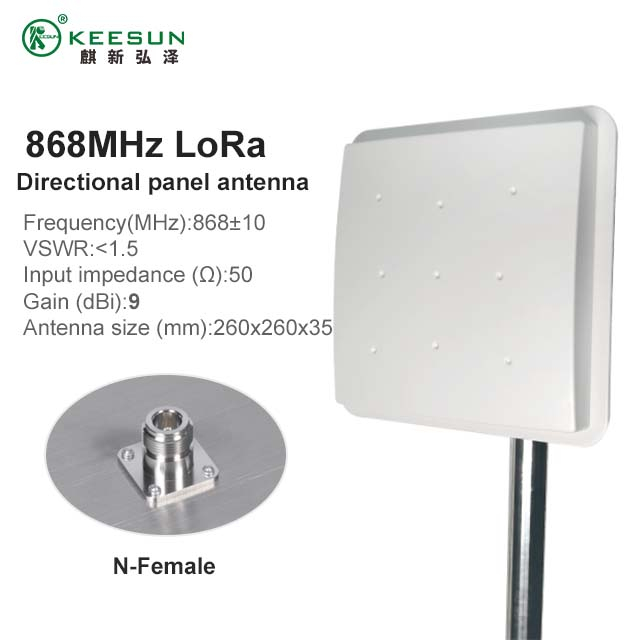

The 868 MHz 9 dBi High Gain LoRa Directional Panel Antenna is a specialized, professional-grade solution designed to significantly enhance the reliability and extend the communication range of LoRa, LoRaWAN, and other Sub-GHz LPWAN (Low-Power Wide-Area Network) systems operating within the critical European and specific regional 868 MHz ISM band. By combining a high, focused 9 dBi gain with a durable, directional panel design, this antenna is an essential component for optimizing outdoor deployments that require superior coverage, targeted signal delivery, and robust immunity to interference.
Key Product Features and Technical Superiority
Engineered to leverage the excellent propagation characteristics of the $868\text{ MHz}$ frequency, this panel antenna ensures that maximum efficiency is achieved in low-power communication networks.
Optimized 9 dBi Gain for LoRaWAN Link Budgets
The antenna's 9dBi high gain is specifically chosen to optimize the performance of LoRaWAN links. This gain level concentrates the radiated power into a narrow, targeted beam, which is vital for maximizing the link budget—the key metric determining the effective range of a LoRa network. By focusing the signal energy, the antenna ensures a strong signal is delivered to distant nodes and, conversely, improves the sensitivity of the gateway by reducing the system's noise floor in the direction of the transmission. This translates directly to extended geographical coverage and reliable data reception from low-power sensors operating at the cell edge.
Precise Directionality and Interference Mitigation
As a directional panel antenna, its radiation pattern is precisely controlled, confining the energy to a defined sector or path. This characteristic is crucial for sectorized LoRaWAN deployments, allowing a single gateway to efficiently cover specific geographic areas without wasting power in irrelevant directions. More importantly, this directionality significantly enhances interference mitigation. By minimizing the reception of extraneous noise and signals from outside the sector, the antenna improves the gateway's ability to decode very weak, legitimate LoRa signals, which is fundamental to the technology's effectiveness.
Efficient 868 MHz Performance
The physical dimensions of the panel are meticulously tuned for the long wavelength of the 868MHz band. This tuning ensures maximum energy transfer and a very low Voltage Standing Wave Ratio (VSWR) across the entire operational bandwidth. A low VSWR is critical because it confirms that nearly all the power from the connected radio is being efficiently radiated by the antenna, maximizing the effective range and protecting the sensitive LoRa radio circuitry from reflected power. This high efficiency is paramount for extending the battery life of remote LoRa sensors.
Rugged Weatherproof Construction

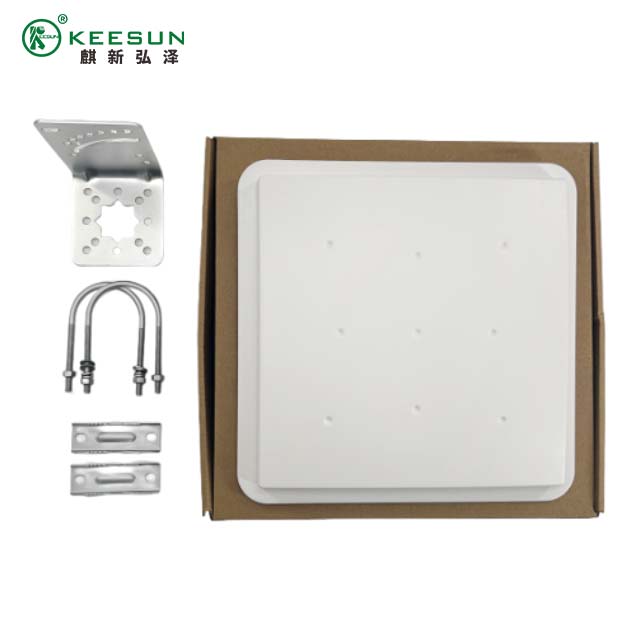

Designed for permanent mounting in outdoor environments, the antenna features a high-durability, UV-stabilized ABS radome, protecting the sensitive internal elements from environmental damage. It is engineered with robust, corrosion-resistant mounting hardware to withstand high winds, extreme temperatures, and moisture penetration (typically rated IP65 or IP67). The standard connection interface is a secure, low-loss N-Female connector, providing a reliable, long-lasting point of attachment for feeder cables often required to reach optimal mounting heights.
Practical Applications and Usage Scenarios
The $868\text{ MHz}$ 9 dBi directional panel antenna is an ideal fit for numerous long-range, low-power data applications within the European and regional markets utilizing this specific ISM band.
Smart City and Urban LoRaWAN Infrastructure
In Smart City initiatives, this antenna is used to optimize the coverage from LoRaWAN gateways mounted on city buildings or light poles. By sectorizing the coverage, city planners can ensure dense, reliable connectivity for thousands of low-power devices, including smart metering, public lighting control, and environmental monitoring sensors, while managing spectrum usage effectively.
Agricultural and Environmental Monitoring
For smart agriculture and environmental telemetry across large farms, vineyards, or remote national parks, this antenna provides the necessary focused reach. It is deployed to establish long-distance links from a central hub to clusters of remote sensors monitoring soil conditions, weather patterns, or livestock location. The low $868\text{ MHz}$ frequency is highly effective for penetrating light foliage and covering rolling terrain.
Industrial and Utility SCADA Networks
Utilities and industrial complexes use this directional panel for SCADA (Supervisory Control and Data Acquisition) and monitoring infrastructure spread across expansive areas, such as energy pipelines, water distribution networks, or railway corridors. The 9dBi gain ensures the reliability of control and status signals transmitted over long, dedicated paths, providing a robust and cost-effective alternative to cellular or proprietary radio systems.
Point-to-Point Backhaul for Data Consolidation
In scenarios where multiple LoRa nodes are grouped together but require a dedicated, reliable connection back to a remote aggregation point, the antenna is used in a point-to-point (PtP) configuration. This highly focused link ensures maximum data throughput and link reliability, often connecting a remote concentrator to the main network backbone over several kilometers.
Why Choose Our 868 MHz LoRa Panel Antenna? (SEO Focus)
Maximum Range 868 MHz: $9\text{ dBi}$ high gain maximizes the link budget for extended LoRaWAN coverage.
Interference Immunity: Directional pattern reduces noise floor, significantly enhancing gateway sensitivity.
Sectorized Network Ready: Ideal for segmenting large coverage areas to optimize network capacity and scale.
Outdoor Reliability: Robust IPrated construction with low-loss N-Female connector for permanent installation.
European ISM Band Optimized: Precisely tuned for high-efficiency performance across the 868MHz spectrum.
Secure the highest possible range and reliability for your 868MHz LPWAN deployments. Choose the 868 MHz 9 dBi High Gain LoRa Directional Panel Antenna for professional-grade, long-distance wireless connectivity.
