Product Overview: Versatile Wideband Connectivity

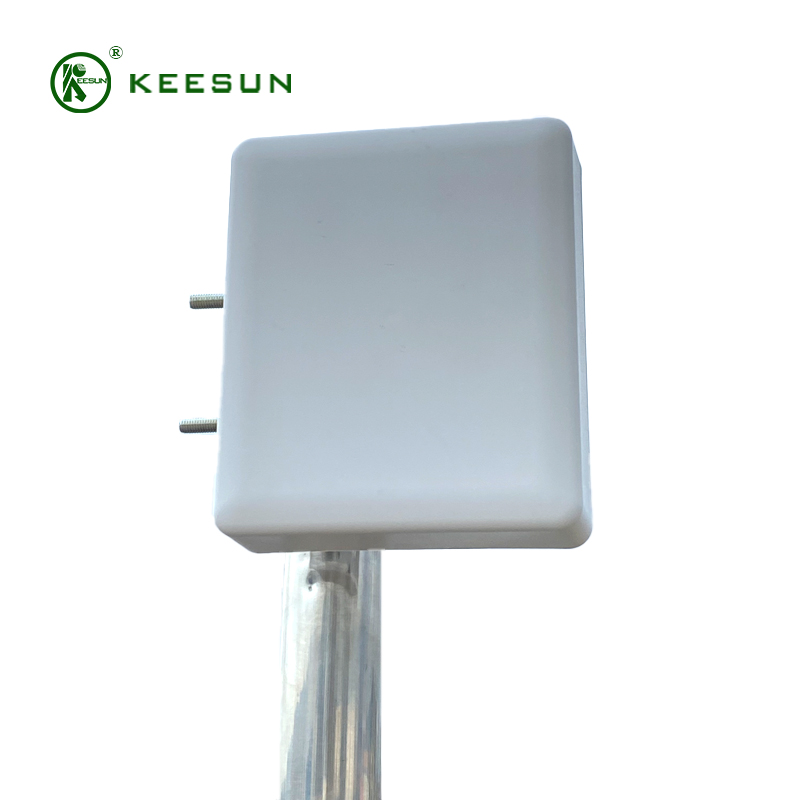

Engineered for the demands of modern wireless communication, this robust directional panel antenna offers an exceptional frequency range from 1710 MHz up to 3800 MHz. This wideband capability ensures compatibility with all major global 4G LTE networks and emerging Sub-6GHz 5G bands, providing unparalleled flexibility for future-proof deployments. With a reliable 10 dBi (±1 dBi) gain, this compact unit is designed to significantly improve signal quality and range for Fixed Wireless Access (FWA), M2M, and Industrial IoT (IIoT) applications where performance and reliability are non-negotiable.
Optimized Gain and Coverage (10 dBi & Wide Beamwidth)
The antenna's specifications strike a perfect balance between focused power and usable coverage:
Gain (10 dBi ±1 dBi): This moderate-to-high gain is sufficient to overcome moderate cable loss and penetrate obstructions, improving signal stability over medium distances without requiring the extremely precise aiming of ultra-high-gain antennas.
Horizontal Beamwidth (65° ±10°): The relatively wide horizontal beamwidth simplifies installation. Unlike narrow-beam antennas, the 65° spread offers a greater tolerance for alignment errors, making setup quicker and less labor-intensive, particularly useful in urban or complex topographical settings.
Vertical Beamwidth (60° ±10°): The complementary vertical coverage ensures flexibility in mounting height and maintains connectivity even if the remote base station is slightly above or below the antenna level.
Reliability and Industrial Build Quality
Designed specifically for permanent outdoor deployment, this antenna meets stringent requirements for durability and connectivity integrity:
VSWR (≤ 1.92): An excellent Voltage Standing Wave Ratio (VSWR) of less than or equal to 1.92 indicates minimal power reflection. This ensures maximum RF energy is efficiently transmitted and received, translating directly into higher data speeds and more reliable links.
Waterproof Construction: The sealed enclosure protects the internal components from environmental factors, guaranteeing consistent performance in rain, snow, and extreme temperatures.
Standard N-Female Connector: The industrial-grade N-Female connector provides a secure, low-loss connection point, compatible with high-quality coaxial cables often used in professional installations.
Compact Form Factor (140x120x37mm): Its small size allows for discreet installation and easy integration into existing infrastructure, reducing visual impact and mounting complexity.
Key Application Scenarios (Enabling IIoT and FWA)
This wideband directional antenna is the go-to solution for critical connectivity challenges:
Fixed Wireless Access (FWA) CPE: Ideal for use as a Customer Premise Equipment (CPE) antenna to receive high-speed internet from distant base stations, delivering reliable home or office broadband.
Remote Monitoring & Surveillance: Perfect for providing stable data links for remote security camera systems, weather stations, or smart city sensors located in areas with weak cellular coverage.
Industrial M2M/IoT Backhaul: Used in demanding sectors like utilities, energy, and transportation to establish highly stable backhaul links for SCADA systems, asset tracking, and remote machine diagnostics across a vast operational area.
Simplified Installation for Optimal Performance
The design and beamwidth of this antenna promote straightforward installation. Its directional nature requires pointing towards the desired cell tower or remote location. The relatively forgiving beam angle simplifies the aiming process, while the robust mounting hardware (noted by its size and industrial connector) ensures stability under heavy wind loads. For best results, use a high-quality, low-loss RF cable to maintain the signal integrity provided by the 10 dBi gain.
