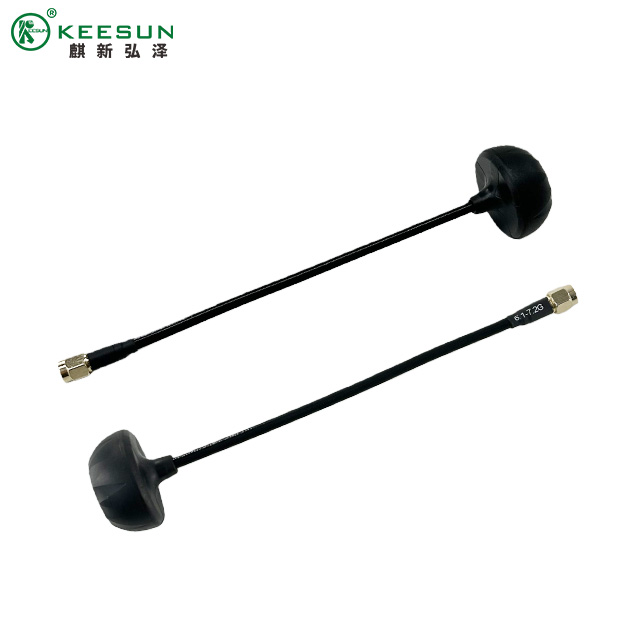

Heavy-Duty 6.1~7.2G FPV Antenna: 5dBi High-Gain Transmission for Next-Gen UAVs
In the rapidly evolving world of drone technology, signal congestion is the ultimate performance killer. As the traditional 5.8 GHz band becomes increasingly crowded with interference, moving to the cleaner 6.1 GHz to 7.2 GHz wideband spectrum is the definitive answer for professional pilots, UAV manufacturers, and industrial drone operators.
Engineered specifically for long-range FPV racing, cinematic drones, and enterprise-grade UAV deployment, this 6.1~7.2G FPV Antenna delivers a powerful 5dBi high-gain output. It ensures uninterrupted video transmission, razor-sharp control response, and maximum penetration through challenging RF environments.
Why Choose the 6.1~7.2 GHz Band for Your Drone Fleet?
Overcoming the 5.8 GHz Spectrum Bottleneck
Traditional 5.8 GHz frequencies suffer from severe signal degradation due to Wi-Fi routers, local communication towers, and other pilots operating on the same field. By shifting your system to the 6.1~7.2 GHz frequency range, you immediately unlock:
Zero-Interference Channels: Experience a cleaner RF background noise floor for pristine video feeds.
Extended Range: The dedicated spectrum allows for longer, safer flights beyond the line of sight (BVLOS).
Enhanced Penetration: Better obstacle traversal through concrete, foliage, and urban structures.
Key Technical Features & Edge Advantages
1. Optimized 5dBi High Gain for Long-Range Stability
Unlike generic omnidirectional antennas that scatter energy, our engineered 5dBi gain radiation pattern is meticulously optimized. It focuses the signal horizontally where your drone needs it most, significantly boosting transmission distance without introducing dead zones during high-angle acrobatic maneuvers.
2. Ultra-Low VSWR & Maximum Efficiency
Power loss inside an antenna translates directly to dropped frames and reduced range. This 6.1~7.2 GHz UAV antenna maintains an exceptional Low VSWR (Voltage Standing Wave Ratio) across the entire frequency sweep.
Less Heat, More Range: Higher efficiency means more RF power is transmitted into the air and less energy returns to damage your expensive video transmitter (VTX).
Consistent Return Loss: Thoroughly tested to guarantee stable performance even under extreme environmental conditions.
3. Lightweight & Aerodynamic RF Architecture
Weight matters when every gram impacts battery life and flight dynamics.
Micro-Form Factor: Designed with a minimized cross-section to significantly reduce wind drag during high-speed FPV racing or high-wind industrial inspections.
Impact-Resistant Radome: Housed in high-durability, RF-transparent material that protects the internal copper elements from high-velocity crashes and harsh weather.
Product Technical Specifications
| Parameter | Specifications |
| Frequency Range | 6.1 GHz – 7.2 GHz |
| Peak Gain | 5dBi |
| VSWR | ≤ 1.5 (Typical across the band) |
| Impedance | 50 Ω |
| Radiation Pattern | Omnidirectional (Optimized Horizontal Efficiency) |
| Polarization | Available in RHCP / LHCP |
| Connector Options | SMA / RPSMA / U.FL (IPEX) / MMCX / Straight & Right-Angle |
Versatile Application Scenarios

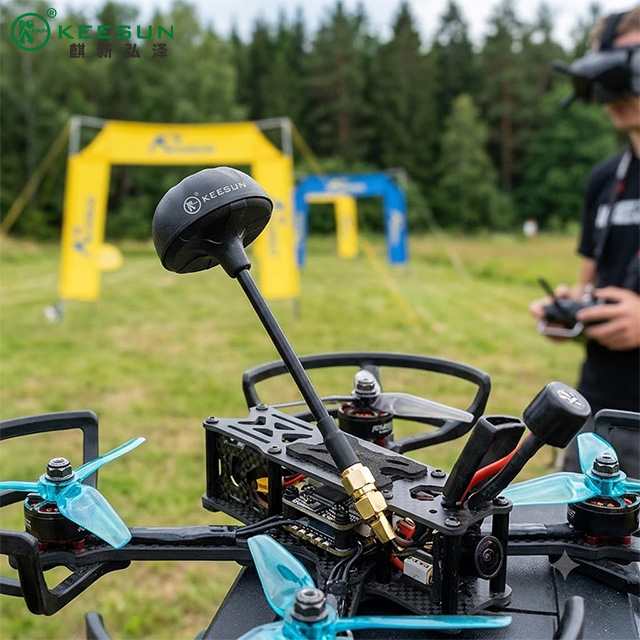

Professional FPV Racing & Freestyle Drones
Get the edge on the racetrack. The 5dBi gain provides the precise signal penetration needed to punch through gates, metal staging structures, and dense race grids where dozens of video transmitters are firing simultaneously.
Long-Range Cinematic & Commercial UAVs
Protect your high-end camera rigs and payloads. Ensure your HD digital video transmission system (compatible with next-generation wideband digital VTX systems) stays locked in, delivering crystal-clear, stutter-free video feeds back to the ground station.
Industrial Inspection & Mapping
Deploy with confidence in urban or industrial zones. Whether inspecting high-voltage power lines, wind turbines, or structural concrete, the 6.1~7.2G band cuts through the heavy electromagnetic interference typical of industrial environments.
Partner with a Leading RF Hardware Manufacturer
As an established, ISO-certified antenna manufacturing facility, we control the entire production pipeline—from raw material procurement and advanced 3D microwave anechoic chamber testing to final quality control.
We provide flexible business models for global buyers:
B2B Wholesale & Supply Chain: Competitive tiered pricing for drone distributors, frame manufacturers, and hobby shop suppliers.
OEM/ODM Customization: Custom cable lengths, specialized connectors, tailored enclosure colors, and branded logo printing to match your product ecosystem.
Ready to Upgrade Your Wireless Link?
Don't let signal drops compromise your flights. Contact our technical sales team today for bulk quotes, customized samples, or datasheet requests.
