In the complex landscape of modern cellular network deployment, precise and reliable control over tower-mounted equipment is critical for optimal network performance and efficiency. Our DB9 Male to AISG Female Control Cable is the essential link facilitating this control, seamlessly bridging legacy configuration and monitoring systems with the standardized, future-proof Antenna Interface Standards Group (AISG) protocol.
This specialized control cable is designed for technicians, network integrators, and wireless carriers who need a dependable solution for commissioning, monitoring, and adjusting Remote Electrical Tilt (RET) antennas, Tower Mounted Amplifiers (TMAs), and other AISG-compliant devices. It provides the crucial conversion between the common, easily accessible DB9 serial port (often found on configuration tools, laptops, or dedicated control units) and the rugged, industry-standard AISG C091 connector. Engineered for reliable data transmission and power delivery, this cable is your key to efficient tower-top management and reduced site maintenance time.
Key Features and Technical Specifications
Our DB9 to AISG control cable is built with precision to ensure robust communication and longevity in field conditions.
Seamless Protocol and Connector Conversion
The cable’s primary function is its highly reliable protocol and physical interface conversion:

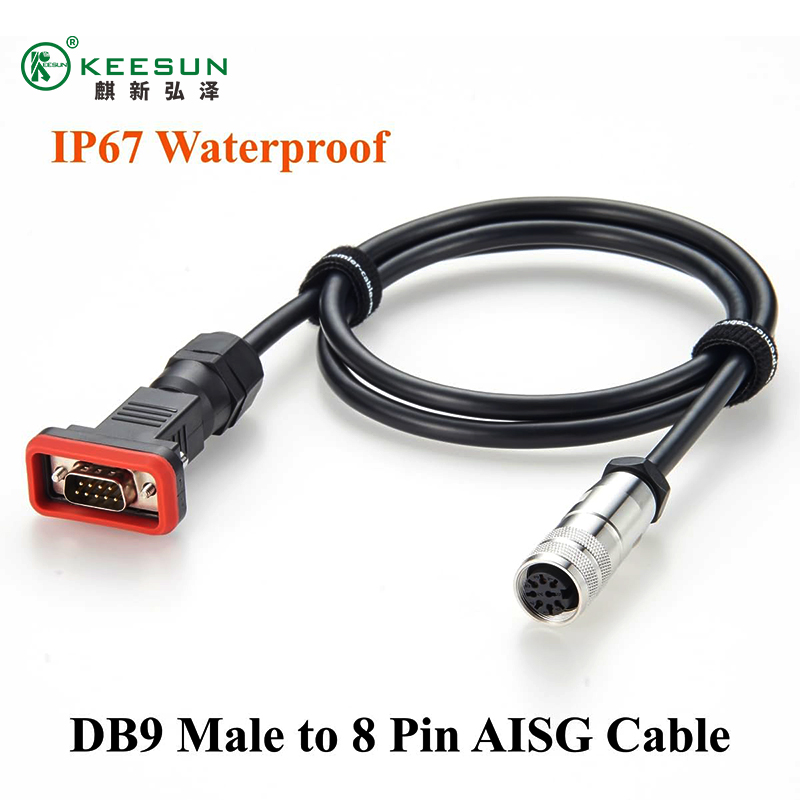

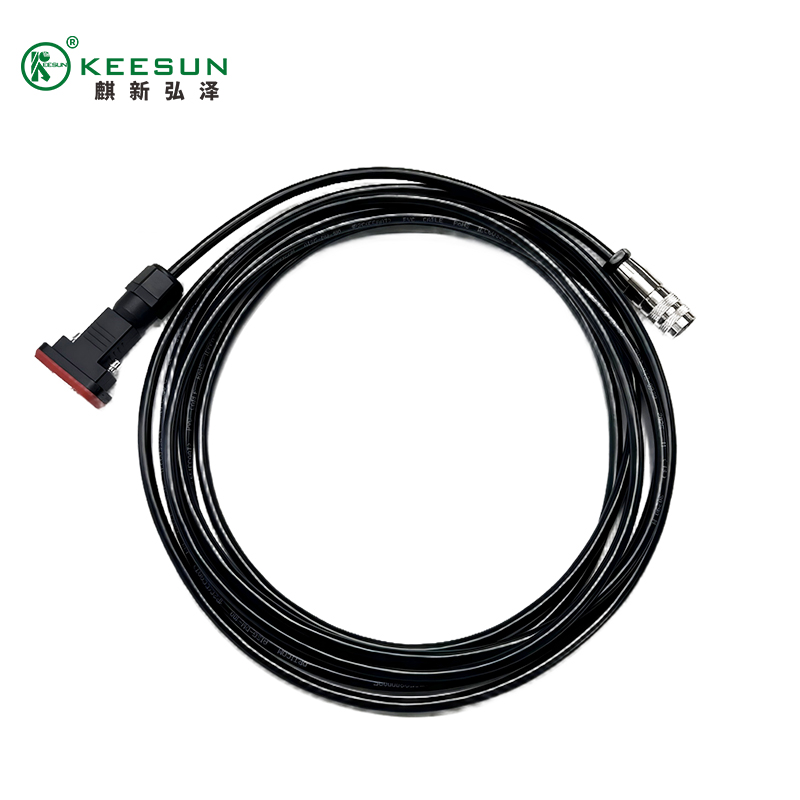

DB9 Male Connector: This end connects to the Data Terminal Equipment (DTE), typically a field laptop, a dedicated AISG controller, or a test unit running configuration software. The DB9 interface is widely recognized and utilized in serial communication for command and control.
AISG Female Connector (C091 Series): This is the industry-standard connector for all tower-mounted AISG devices. The female connector mates securely with the male port on RET actuators, TMAs, or other smart tower gear. The circular, waterproof, and screw-locking design ensures a stable, weatherproof connection mandated by harsh outdoor environments.
Robust, Weatherproof Construction
Built for the rigors of outdoor cellular tower sites, the cable is engineered for maximum durability and environmental resistance:
High-Quality Cable Jacket: Features a rugged, often UV-resistant and cold-weather flexible outer jacket, protecting the internal conductors from abrasion, moisture, and extreme temperatures.
Shielding and Data Integrity: Internal conductors are properly shielded to minimize Electromagnetic Interference (EMI), ensuring clean and error-free data transmission for reliable AISG commands and status reporting.
Water Ingress Protection (IP Rating): The AISG connector end typically boasts an IP67 or IP68 rating when mated, offering superior protection against dust and water submersion, crucial for tower-top reliability.
Power and Data Integration
The AISG standard specifies both data transmission and power supply over the same cable. Our control cable is wired to correctly pass the necessary power (typically 10V to 30V DC, depending on the system) and the RS-485 differential data signal required by the AISG protocol, ensuring the connected RET device is both powered and controllable. The internal wiring adheres strictly to the AISG pinout standard (e.g., Pin 1 for +DC, Pin 3 for Data B, Pin 5 for Data A, Pin 6 for DC Return).
Essential Usage Scenarios (Field Operations)
This specialized control cable is indispensable during critical phases of network deployment and maintenance.
RET System Commissioning and Calibration
The primary use case involves the initial setup of Remote Electrical Tilt (RET) antennas. During site integration, the cable is used to connect a laptop or controller directly to the RET system for:
Initial Setup: Assigning unique AISG device addresses and installing configuration files.
Tilt Verification: Precisely setting the antenna’s electrical down-tilt angle based on network planning parameters, ensuring optimal coverage and interference management.
Calibration: Running calibration routines to ensure the antenna's actual tilt position matches the reported value. This is a critical step for maximizing cell capacity and avoiding coverage gaps.
On-Site Diagnostics and Troubleshooting
When performance issues arise, the cable facilitates direct, local communication with the tower equipment, bypassing potential issues in the main feeder cable run or base station control unit (RCU).
Status Monitoring: Technicians can quickly pull real-time status, health, and error logs from TMAs and RET units.
Firmware Updates: Loading the latest firmware onto tower-top devices to enhance performance, fix bugs, or add new features.
Bypassing Network Issues: If the primary fiber or control line is suspected to be faulty, this cable allows a direct connection for testing the tower device in isolation.
Temporary Bench Testing and Staging
Before deploying expensive equipment up the tower, testing and configuration are often performed on the ground in a controlled environment.
Pre-Configuration: Staging and programming multiple RET units in the warehouse or lab prior to installation saves significant time on-site.
Quality Assurance (QA): Verifying the functionality of new or repaired AISG devices against a known good control source.
In the fast-paced world of wireless network infrastructure, the DB9 Male to AISG Female Control Cable is more than just an adapter—it is a critical productivity tool. It ensures that network engineers and field technicians can maintain precise control over their high-value, tower-top assets, directly contributing to network quality, efficiency, and reduced operational expenditure. Investing in high-quality, reliable control accessories is vital for maximizing the performance of modern 4G and 5G networks.
