High-Reliability Interface for Remote Antenna Control Units

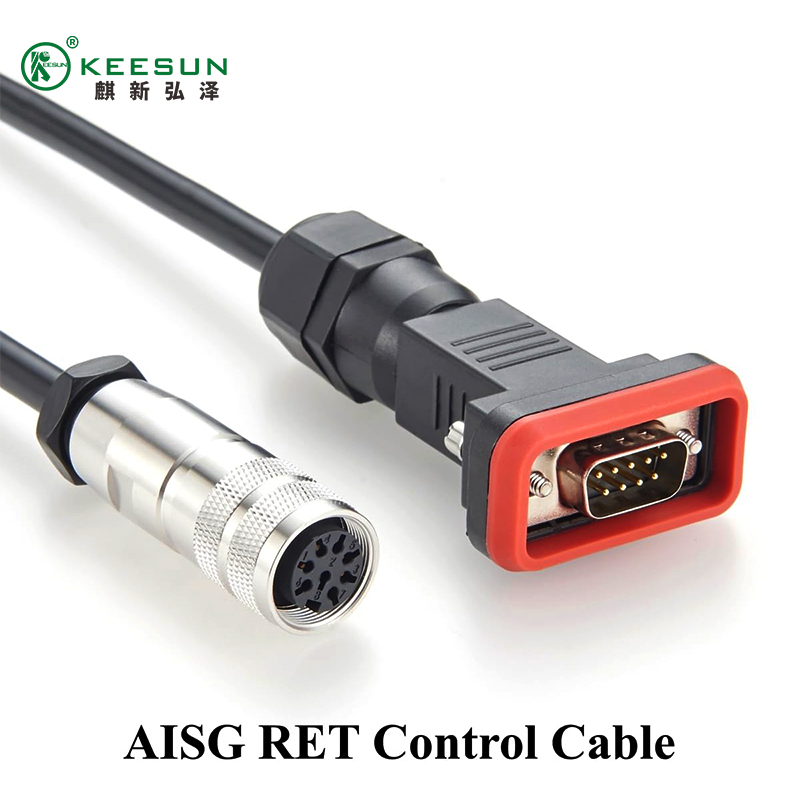

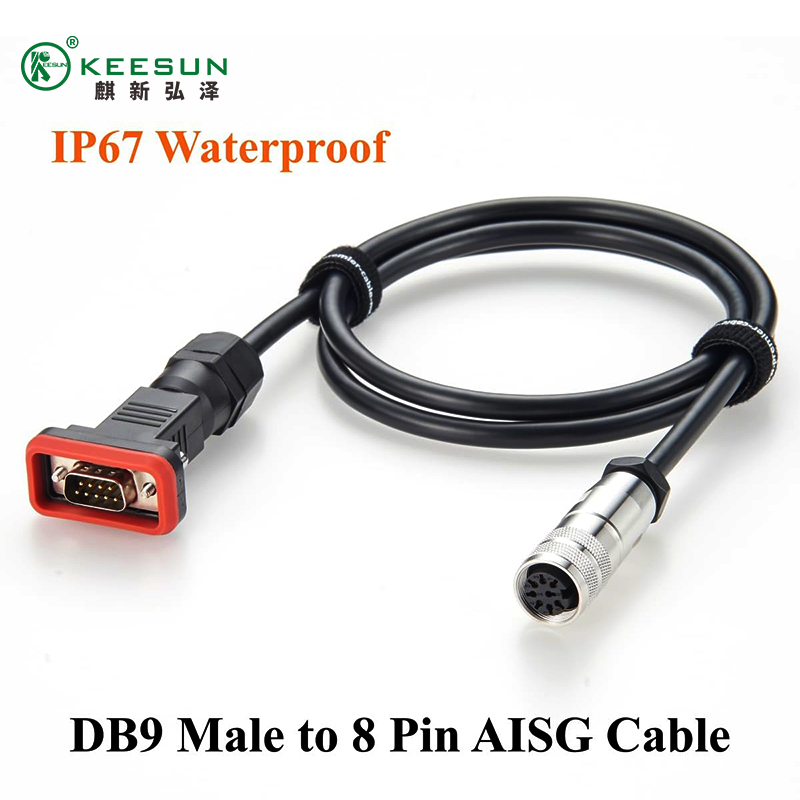

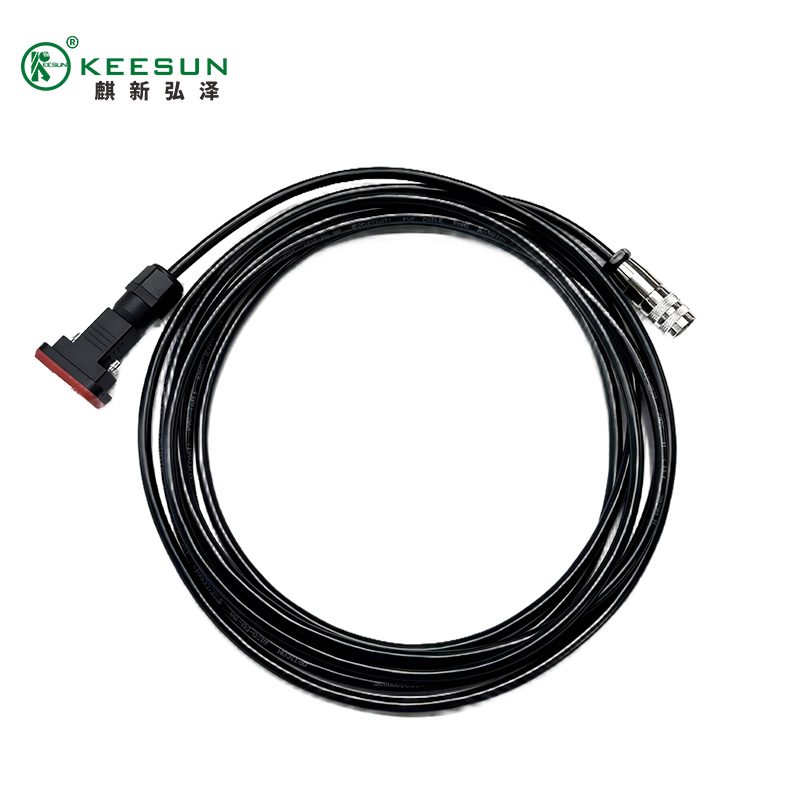

The DB9 Male to AISG Female Control Cable serves as the critical data link between serial control units and Remote Electrical Tilt (RET) antenna systems. Designed for precision and durability, this cable allows network engineers to interface standard DB9 RS-232/RS-485 ports with AISG-compliant equipment. It is an essential component for optimizing cellular network coverage through remote beam tilting, ensuring that your infrastructure remains responsive to fluctuating traffic demands.
Technical Engineering and Signal Integrity
In industrial telecommunications, signal loss is not an option. Our DB9 to AISG cables are engineered with high-grade shielding to protect data packets from the heavy Electromagnetic Interference (EMI) typically found on cell towers.
Connectors: 1 x DB9 (D-Sub 9-pin) Male; 1 x AISG 8-pin Female (IEC 60130-9).
Wiring Configuration: Fully customized pin mapping to support RS-485 signaling requirements.
Shielding: 100% Aluminum foil wrap plus high-density tinned copper braiding.
Contacts: Gold-plated pins to minimize contact resistance and prevent oxidation in humid environments.
Seamless Integration with AISG 1.1 & 2.0 Standards
This control cable is fully compliant with Antenna Interface Standards Group (AISG) protocols. It acts as a bridge, allowing older generation controllers or specialized PC-based diagnostic tools to communicate flawlessly with modern RET actuators. Whether you are performing site commissioning, troubleshooting, or routine maintenance, the plug-and-play design ensures a stable connection between the Master Controller and the antenna's secondary devices.
Industrial-Grade Durability for Harsh Environments
Outdoor telecom equipment must endure the elements 360 days a year. Our DB9 to AISG RET Cables feature a ruggedized outer jacket made of UV-resistant Polyurethane (PUR) or heavy-duty PVC.
Weatherproofing: The AISG female end features an integrated gasket for an IP67-rated seal when mated.
Temperature Resilience: Rated for operation from -40°C to +85°C, ensuring performance in extreme climates.
Strain Relief: Over-molded connectors protect the internal solder joints from vibration and mechanical stress during installation.
Primary Applications in Wireless Infrastructure
The versatility of the DB9 to AISG interface makes it a staple for:
Field Maintenance: Connecting ruggedized laptops to RET antennas for manual tilt adjustment.
Legacy BTS Integration: Bridging older Base Transceiver Stations that utilize DB9 ports for antenna control.
Site Testing: Rapid deployment of diagnostic tools to verify AISG device scanning and motor functionality.
Signal Optimization: Enabling real-time tilt modifications to reduce inter-cell interference.
Why Partner With Us for Your AISG Connectivity?
As a specialized manufacturer, we prioritize E-E-A-T (Expertise, Authoritativeness, and Trustworthiness) in every cable we produce. Every DB9 Male to AISG Female cable undergoes 100% electrical testing, including open/short circuits and high-voltage insulation tests. By choosing our carrier-grade solutions, you reduce the risk of costly tower climbs and ensure the long-term stability of your RF network.
