Breaking the Spectrum Barrier: Why 600-6000MHz Matters for Next-Gen IoT
In the Industrial IoT (IIoT), uptime is critical. The Waterproof 5G Gooseneck Antenna (600–6000MHz) is built for global multi-band use, supporting 4G LTE, Sub-6GHz 5G, CBRS, and dual-band Wi-Fi. This ultra-wideband design eliminates the need for multiple SKUs, simplifying system design, cutting costs, and future-proofing your network.
Flexible Precision: Mechanical Superiority of Gooseneck RF Design

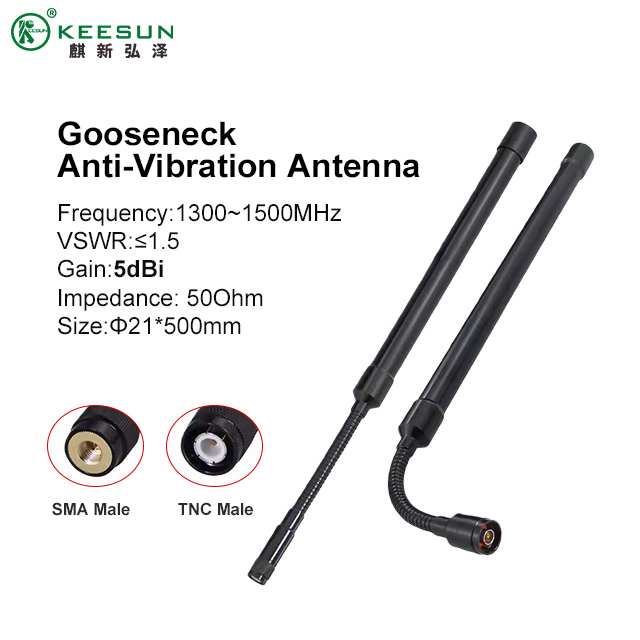

Standard rigid whip antennas often fall short when deployed on mobile routing platforms or tightly enclosed industrial cabinets. As showcased in the technical breakdown of the FG00039 component profile, the ruggedized gooseneck mechanism allows for 360-degree orientation manipulation. This positional flexibility is critical for anti-vibration mitigation and optimizing signal polarization in real-time. Whether deployed on tactical communication kits or automated guided vehicles (AGVs), the flexible heavy-duty steel conduit absorbs mechanical impacts that would otherwise shear off standard connectors, extending the operational lifecycle of both the antenna and the host IoT terminal.
Ruggedized for Extremes: IP67 Waterproofing and Material Durability
Outdoor cellular deployments demand components that shrug off punishing environmental exposure. A premium 5G gooseneck antenna features a fully sealed, waterproof housing rated to IP67 standards or higher. The outer radome utilizes heavy-duty, UV-stabilized materials designed to resist structural degradation under relentless sunlight and high-acid industrial atmospheres. Combined with advanced vulcanized rubber seals at the critical hinge joints, the internal copper radiating elements remain completely insulated against moisture ingress, salt spray, and fine dust particles, ensuring consistent Voltage Standing Wave Ratio (VSWR) performance from -40°C up to +80°C.
Universal Integration: SMA, TNC, and N-Type Connector Options
Interoperability is a major bottleneck in rapid hardware prototyping and volume production. To address this, high-performance gooseneck solutions offer modular RF connector options tailored to diverse industrial form factors. Referencing the distinct RF variations in FG00039, buyers can select the exact interface needed for their hardware configuration:
SMA Male: The industry standard for compact IoT gateways, cellular routers, and developer boards.
TNC Male: Featuring a secure threaded coupling mechanism ideal for high-vibration applications like transport and heavy machinery.
N Male: The preferred heavy-duty interface for high-power industrial equipment and rugged outdoor enclosures requiring minimal insertion loss.
Technical Specification Matrix
| Parameter | Specification Details |
| Frequency Range | 600 - 6000 MHz |
| VSWR | <1.92 |
| Impedance | 50 Ω |
| Flexibility | 360° |
| Waterproof Rating | IP67 |
| Connector Variants | SMA Male / TNC Male / N Male (Customizable) |
Target Applications: Where Performance Meets Infrastructure
The versatility of the ultra-wideband waterproof gooseneck antenna makes it the premier choice across multiple high-stakes sectors.
Smart Metering & Grid Utilities: Provides reliable penetration for smart electricity, gas, and water concentrators installed in damp underground basements or isolated rural zones.
Tactical & Emergency Communications: Enables reliable data links for rugged field radios, military-grade communication backpacks, and first-responder command vehicles.
Industrial IoT Gateways: Acts as the primary cellular uplink for outdoor industrial routers, environmental monitoring stations, and smart city infrastructure.
Sourcing from a Verified OEM/ODM Antenna Factory
International procurement demands a compliant manufacturing partner. Top antenna factories ensure full transparency with anechoic chamber testing, providing radiation patterns and return loss data for pre-sample approval. For volume orders, we offer customizable cables, bespoke colors, and complete RoHS/REACH/CE compliance documentation for smooth customs clearance and market entry.
