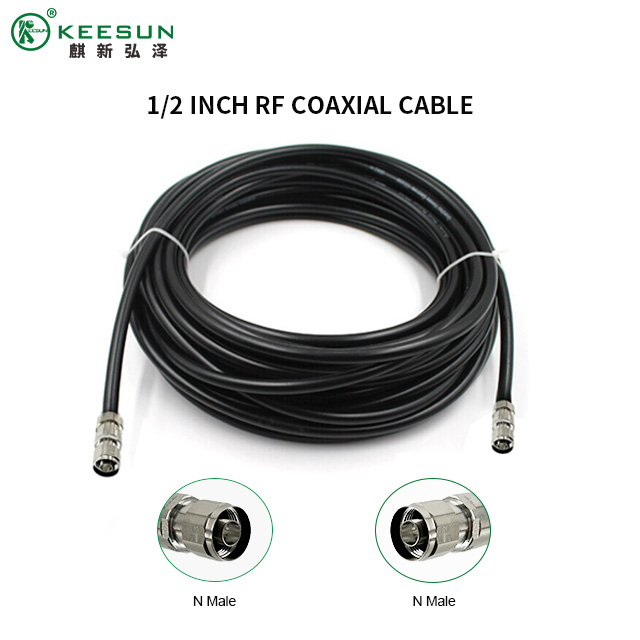

Low Loss Stable Signal Transmission.N Male to N Male semi-flex RF coaxial jumper, low signal loss & high shielding. Free bendable, waterproof & weather resistant. Widely applied in 5G base stations, wireless CCTV bridges and antenna signal transmission. Custom cable length available.
Key Features and Technical Excellence
Core Electrical & Mechanical Specifications
Engineered for demanding RF environments, this N Male to N Male Flexible RF Jumper Cable combines low-loss electrical performance with outstanding mechanical flexibility. The cable features a stranded silver-plated copper center conductor and a low-density PTFE dielectric, achieving a characteristic impedance of 50Ω ±1Ω across DC to 6 GHz.
Electrical highlights:
VSWR: ≤1.25:1 (DC–3 GHz) / ≤1.35:1 (3–6 GHz)
Insertion loss: 0.4 dB/m @ 2.4 GHz, 0.65 dB/m @ 5.8 GHz
Shielding effectiveness: >90 dB (double shielding: Al foil + 95% tinned copper braid)
Power handling: 200W average @ 2 GHz (at 40°C ambient)
Mechanical & environmental excellence:
Minimum bend radius: 35 mm (static) / 50 mm (dynamic)
Flex life: >12,000 cycles (90° flex test)
Outer diameter: 6.5 mm (flexible PVC jacket)
Temperature range: -40°C to +85°C

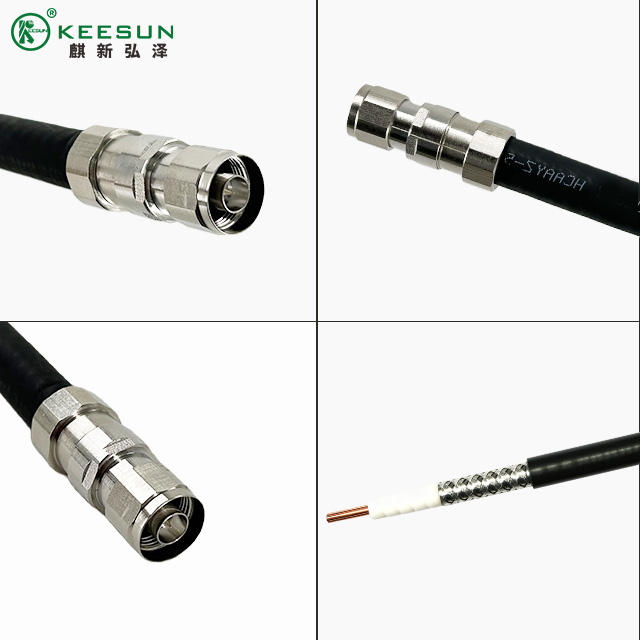

Each connector is machined from brass with a gold-plated center pin and passivated stainless steel coupling nut, ensuring corrosion resistance and >500 mating cycles. Every cable is 100% swept-tested for VSWR and insertion loss using a Keysight vector network analyzer, and a unique serial number links to its individual test report. Compliance includes RoHS, REACH, and UL 1581 VW-1 flame rating.
Versatile Applications: Extending Your Reach
This flexible N male-to-male jumper cable solves real-world connectivity challenges across multiple industries. Its combination of low loss, high flexibility, and robust connector retention makes it ideal for:

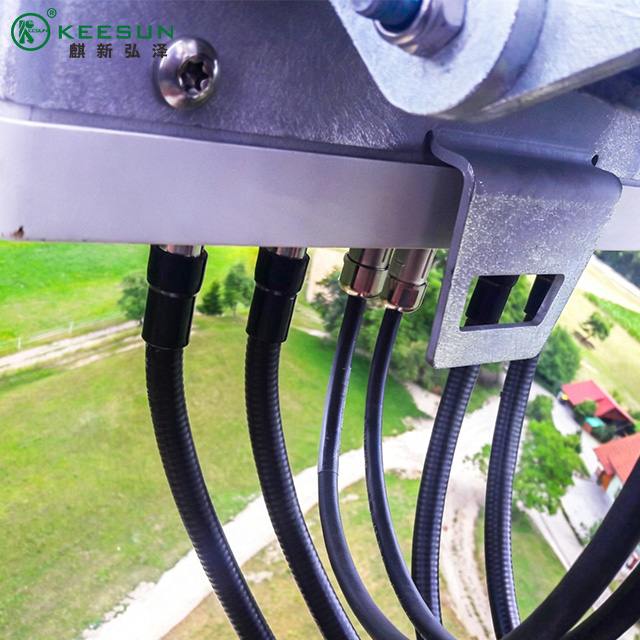

5G/4G base stations – RRU to antenna jumper in tight tower spaces
DAS – In-building signal distribution with low PIM (≤ -155 dBc)
Test labs – VNAs, spectrum analyzers, signal generators
Amateur radio – VHF/UHF/1.2 GHz rotator & portable mast feeds
Industrial IoT – 2.4/5.8 GHz outdoor enclosures
Custom lengths available: 0.3 m to 20 m (±2 cm)
Conclusion: Guaranteeing Robust Wireless Performance
Every cable is 100% swept-tested (Keysight VNA) and serialized with a test report. Backed by a 2-year warranty and ISO 9001:2024 certification. Standard lengths (0.5m, 1m, 2m, 3m, 5m) ship same-day from US/EU warehouses. Custom quotes within 2 hours.
