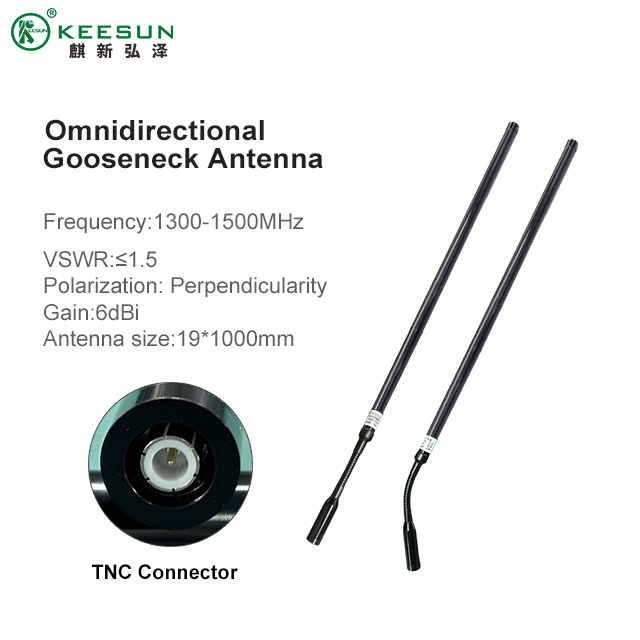

1300–1500MHz 6dBi Omnidirectional Gooseneck Antenna with TNC Connector for UAVs
Maximize your unmanned aerial vehicle's (UAV) communication range and signal stability with our professional-grade 1300–1500MHz 6dBi Omnidirectional Gooseneck Antenna. Specifically engineered for tactical UAVs, drones, and unmanned ground vehicles (UGVs), this high-gain antenna delivers uninterrupted, 360-degree wireless coverage. Featuring a ruggedized, flexible gooseneck design and a heavy-duty TNC connector, it ensures dependable data links, video transmission, and telemetry in the most challenging RF environments.
Key Features & Product Highlights
Optimized 1300–1500MHz Frequency Range: Perfect for long-range tactical communications, private networks, and specialized UAV data links.
High-Gain 6dBi Performance: Enhances signal strength and extends operational range without sacrificing omnidirectional coverage.
Flexible Gooseneck Design: Allows for easy angle adjustment to clear physical obstructions on the aircraft or ground control station, reducing polarization loss.
Rugged TNC Connector: Features a secure, threaded TNC male/female connector that withstands high-vibration UAV flight environments.
360° Omnidirectional Coverage: Eliminates signal dead zones, maintaining a seamless connection regardless of the drone’s orientation or flight attitude.
Parameter
Specification
Frequency Range
1300 – 1500 MHz
Gain
6 dBi
Radiation Pattern
Omnidirectional (360° Horizontal)
Impedance
50 Ω
VSWR
≤ 1.5:1
Connector Type
TNC (Male / Female customizable)
Antenna Type
Flexible Gooseneck
Operating Temperature
-40°C to +85°C
Built for Demanding UAV & Tactical Applications
High-Gain Omnidirectional Reliability
Operating in the 1.3GHz to 1.5GHz band, this antenna provides an optimal balance between signal penetration and range. The 6dBi high-gain design constrains the vertical beamwidth to push the signal further along the horizon, while the 360-degree omnidirectional radiation pattern ensures your UAV stays connected during sharp banks, turns, and complex maneuvers.

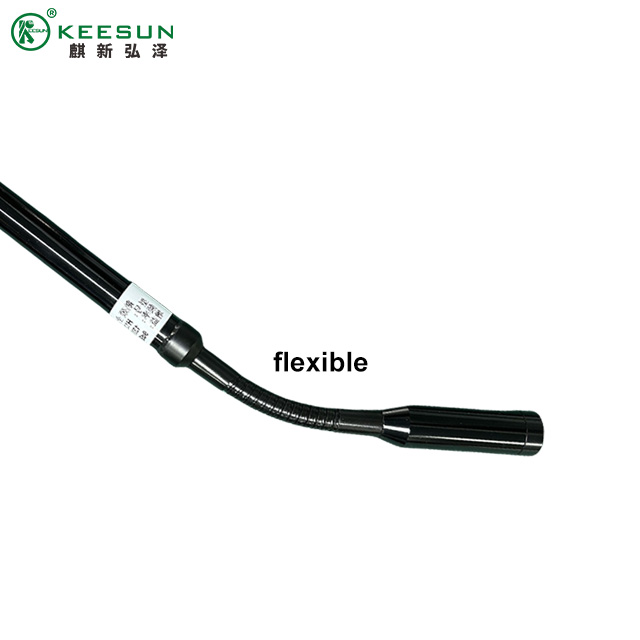

Rugged Gooseneck Flexibility & Durability
UAV operations demand hardware that can take a beating. The integrated gooseneck assembly allows operators to bend and position the antenna precisely where needed, absorbing impacts during rough landings instead of snapping. Encased in a weather-proof, UV-resistant radome, it is built to survive extreme temperatures, dust, and moisture.
Secure, Vibration-Proof TNC Connection
Standard push-on connectors can fail under the intense vibration of multirotor or fixed-wing drone motors. This antenna utilizes a threaded TNC connector, providing a mechanically secure, low-loss RF connection that will not shake loose during critical missions.
Target Applications
Long-Range UAV/Drone Telemetry: Reliable command and control (C2) links.
Tactical FPV & Video Transmission: Stable, high-bandwidth video feeds in the 1.4GHz band.
