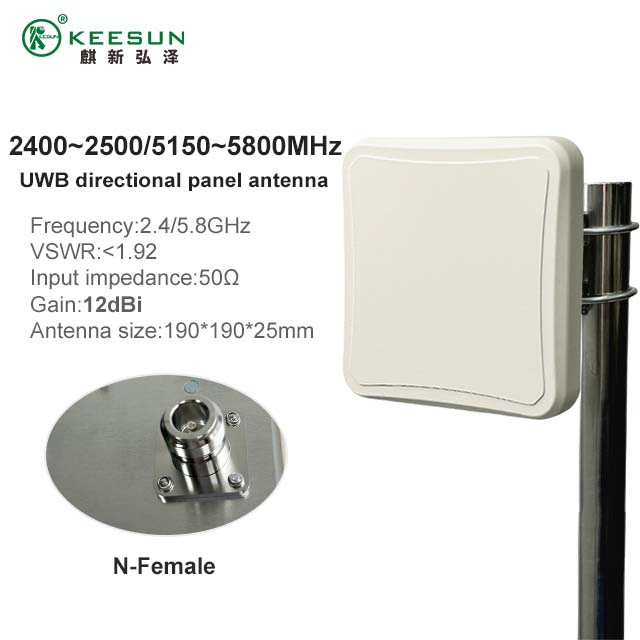

In scenarios such as wireless expansion of family courtyards, network coverage in outdoor office areas of enterprises, and WiFi support for customer flow routes outside stores, the original antennas of routers are often limited by coverage range, signal strength, and resistance to environmental interference, making it difficult to meet the network needs of complex outdoor scenarios. This 2.4~2.5/5.15~5.8GHz12dBi External Waterproof Directional Antenna. with its advantages of precise dual-band adaptation, high-gain signal enhancement, IP-grade waterproof protection, and directional signal focusing, has become a core accessory for upgrading the outdoor network performance of routers, providing high-speed and stable network transmission guarantees for various outdoor wireless scenarios.
1. Full Dual-Band Coverage, Compatible with Mainstream WiFi Standards
The antenna simultaneously covers two popular frequency bands: 2400~2500MHz (2.4GHz band) and 5150~5800MHz (5GHz band) , and is perfectly compatible with routers supporting WiFi 5 (802.11ac) and WiFi 6 (802.11ax) standards. Among them, the 2.4GHz band has strong penetration, making it suitable for covering long-distance areas and regions with multiple wall obstructions, and can meet the low-speed connection needs of smart devices (such as outdoor cameras and smart irrigation controllers); the 5GHz band has a wide bandwidth and less interference, which can support high-speed scenarios such as high-definition video playback and outdoor conference live streaming. The dual bands can be switched freely, and the optimal frequency band can be flexibly selected according to different usage needs and environments, avoiding network lag caused by single-band congestion, and fully adapting to the outdoor network needs of families, enterprises, and commercial places.
2. 12dBi High Gain, Breaking Through Signal Transmission Bottlenecks
Compared with the low-gain (3-5dBi) original antennas of routers, the 12dBi high-gain design of this product can significantly improve signal strength and coverage range: in the 2.4GHz band, it can extend the effective coverage distance to 150-200 meters (adjusted according to environmental obstacles), solving the problem of signal blind spots in courtyard corners and edge areas of enterprise parks; in the 5GHz band, even in the face of complex outdoor interference (such as WiFi signals from nearby stores), it can still maintain a stable high-speed connection. Tests show that within a distance of 100 meters, the download speed of the 5GHz band can be maintained at 150-300Mbps (requires matching with a gigabit router), meeting the network needs of outdoor high-definition monitoring backhaul and multi-person simultaneous online office work. In addition, the high-gain feature can also enhance signal reception sensitivity, reducing disconnections and delays in weak signal environments, making the outdoor network experience consistent with that indoors.
3. IP65 Waterproof Protection, Coping with Complex Outdoor Environments
As a router antenna specially designed for outdoor use, this product adopts a fully sealed waterproof structure and weather-resistant materials: the shell is made of ABS+PC composite material, which has impact resistance, UV resistance, and corrosion resistance, and can withstand extreme temperature changes from -30℃ to 70℃; the interface is equipped with a waterproof silicone sealing ring, and the protection level reaches IP65 standard, which can effectively resist the impact of harsh environments such as heavy rain, sand, and humidity, and avoid antenna short circuits and performance degradation caused by rainwater infiltration. Whether it is used for a long time in an open courtyard or installed outdoors at the entrance of a store, there is no need to worry about damage to the antenna caused by wind, sun, rain, which greatly reduces the maintenance frequency and cost of outdoor network equipment and ensures stable operation throughout the year.
4. Directional Signal Focusing, Improving Anti-Interference Ability and Utilization Rate
The antenna adopts a directional radiation design (horizontal beamwidth is approximately 75°, vertical beamwidth is approximately 40°, subject to actual parameters), which can concentrate signal energy in the target coverage area, avoid signal diffusion to unnecessary directions, and improve signal utilization rate. At the same time, the directional feature can effectively filter out interference signals from non-coverage directions (such as WiFi signals from adjacent buildings and clutter from outdoor wireless devices), reduce the signal bit error rate, and ensure network stability. For example, in an enterprise park, the antenna angle can be adjusted to accurately cover core areas such as outdoor office areas and parking lots, which not only avoids signal waste in irrelevant surrounding areas but also reduces the impact of external interference on the internal network; in a family scenario, directional coverage of the courtyard activity area can prevent signal leakage to neighbors' homes, protecting network privacy and security.
5. Convenient Installation and Adaptation, Easily Upgrading Router Performance
The antenna adopts a user-friendly design, with excellent adaptability and installation convenience: the interface uses a mainstream SMA male connector (SMA female connector, RP-SMA, and other specifications can be customized according to the router interface), which is compatible with more than 90% of household and enterprise-level wireless routers on the market, and can complete the upgrade without replacing the router; it is equipped with an adjustable mounting bracket and fixing accessories, supporting multiple installation methods such as wall-mounted, column-mounted, and eave-mounted. The installation process does not require professional tools, and an individual can complete assembly and debugging within 10-15 minutes. In addition, the antenna weighs only about 300g, with a compact size, so it does not occupy too much space after installation. Its simple appearance can be naturally integrated into the outdoor environment, taking into account both practicality and aesthetics.
Application Scenarios
With core highlights of "dual-band versatility, high gain and strong protection, and precise directionality", this 2.4~2.5/5.15~5.8GHz 12dBi external waterproof directional antenna for routers fully adapts to the outdoor upgrade needs of routers from performance to installation. It is a cost-effective choice for improving the outdoor network coverage range, enhancing signal stability, and reducing operation and maintenance costs, allowing outdoor network connections to no longer be limited by the environment and distance.
This plate -shaped antenna adopts advanced technology and design, providing stable and powerful signal receiving, and is suitable for various environments and equipment to ensure that you enjoy a high -quality signal transmission experience.
