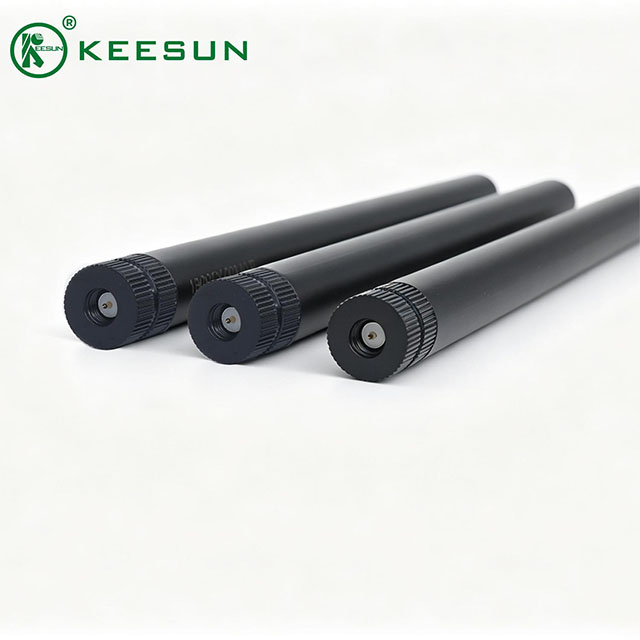

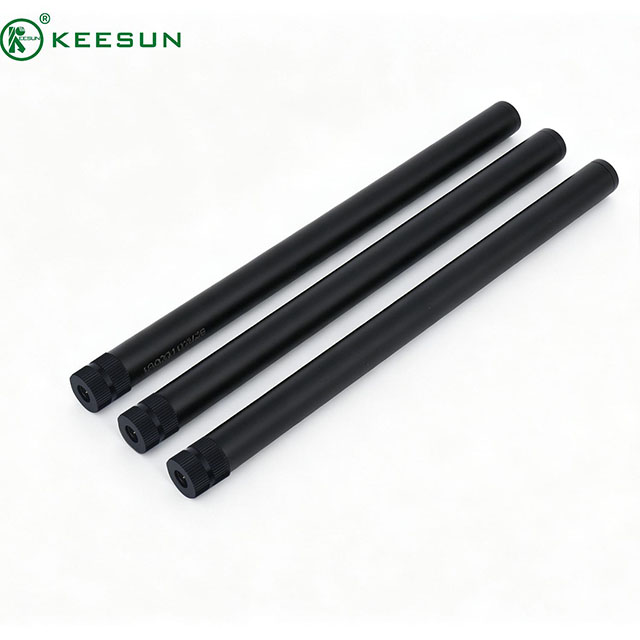

3dBi 1900-2100MHz UAV Fiberglass Antenna with TNC Male Connector | High-Performance Outdoor Drone Antenna
Boost your unmanned aerial vehicle (UAV) signal range and reliability with our commercial-grade 3dBi 1900-2100MHz Fiberglass Antenna. Built explicitly for outdoor drone operations, FPV video transmission, and telemetry systems, this rugged antenna ensures clear, low-latency communication even in demanding outdoor environments.
Key Product Highlights
Targeted 1900–2100 MHz Spectrum: Fine-tuned for 1.9GHz to 2.1GHz frequency bands, ensuring high-speed data transmission and strong anti-interference performance.
Stable 3dBi Omnidirectional Coverage: Delivers consistent 360-degree signal distribution, keeping your drone connected during dynamic flight maneuvers and altitude changes.
Rugged All-Weather Fiberglass Radome: Encased in heavy-duty, UV-resistant fiberglass to withstand severe weather, high wind shear, rain, and extreme temperatures.
Vibration-Resistant TNC Male Connector: Features a threaded TNC Male interface that locks tightly to prevent signal interruptions caused by motor vibrations or turbulent flights.
Product Specifications
Frequency Range: 1900 – 2100 MHz
Gain: 3 dBi
Connector Type: TNC Male
Radiation Pattern: Omnidirectional (360°)
VSWR: ≤ 1.5
Impedance: 50 Ohms
Radome Material: Heavy-Duty Fiberglass
Protection Class: Outdoor Waterproof / Weatherproof
Target Applications
Ideal for commercial mapping drones, agricultural UAV spraying systems, long-range FPV video systems, tactical ground control stations, and outdoor industrial wireless equipment.
