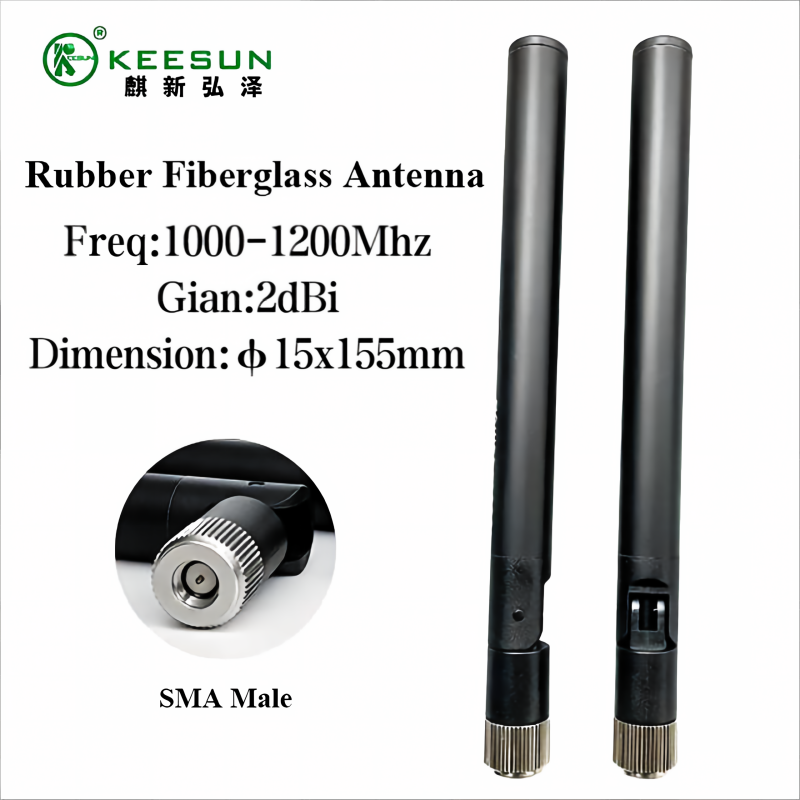

Engineered specifically for mission-critical unmanned aerial vehicles (UAVs), tactical drones, and wireless ground control systems, our 1000–1200MHz 2dBi Fiberglass Omni-Directional Antenna delivers ultra-reliable 360-degree signal coverage. Operating in the sub-1.2GHz L-band spectrum, this antenna offers superior signal propagation and obstacle penetration, making it ideal for long-range data transmission in demanding flight environments.
Built with a high-strength, weatherproof fiberglass radome, it protects internal radiation elements against heavy wind loads, UV radiation, and moisture ingress, serving as an essential hardware upgrade for industrial drone operations.
Key Features & Product Highlights
Wide L-Band Frequency Range (1000–1200 MHz): Optimized for continuous, stable operation across sub-1.2GHz telemetry, remote control, and long-range video link channels.
True 360° Omnidirectional Coverage: Features a stable 2dBi gain with low VSWR, preventing signal dead zones regardless of the drone's tilt, pitch, or orientation during flight.
Rugged Fiberglass Radome: High-density fiberglass construction provides exceptional mechanical rigidity and impact resistance while keeping the overall payload lightweight for UAVs.
IP67 Waterproof & Weatherproof: Fully sealed against rain, dust, high humidity, and corrosive environments for multi-weather reliability.
Low Aerodynamic Drag: Slim cylindrical housing minimizes drag force during high-speed flight, preserving battery life and stability.
Factory Direct & OEM Ready: Supplied directly from our ISO-certified manufacturing facility in China with customizable RF connectors (SMA, N-Type, TNC) and cable lengths.
Practical Application Scenarios & Use Cases
Our 1000–1200MHz 2dBi fiberglass antenna is engineered to meet the stringent demands of modern unmanned aviation and ground systems:
Long-Range UAV Telemetry & Command Links: Ensures unbroken control link telemetry between the flight controller and long-range ground stations over multi-kilometer operational radii.
FPV & Low-Frequency Video Transmitters (VTX): Works seamlessly with 1.2GHz video transmitters to provide clean, low-latency video feed without directional blind spots during banking or flipping maneuvers.
Agricultural & Topographic Mapping Drones: Maintains stable connection during automated, low-altitude flight paths across vast farmlands and complex terrains.
Ground Control Station (GCS) Receiving Antennas: Serves as a rugged omnidirectional base antenna on ground rigs to capture continuous signals from operating UAVs.
Tactical Patrol & Emergency Surveillance: Reliable signal link support for search and rescue operations, border security patrols, and industrial infrastructure inspection.
Technical Specifications
Frequency Range: 1000 – 1200 MHz
Gain: 2 dBi
VSWR: ≤ 1.5
Polarization: Vertical
Radiation Pattern: Omnidirectional (360°)
Impedance: 50 Ω
Max Power Input: 50 W
Radome Material: High-Grade Weatherproof Fiberglass
Connector Type: SMA Male / N-Female / Custom
Operating Temperature: -40°C to +85°C
Ingress Protection: IP67 Waterproof
Why Source Antenna Solutions from Our China Factory?
100% Vector Network Analyzer Tested: Every single antenna is rigorously tested on VNA instruments before packaging to ensure low VSWR and target resonance.
Custom OEM/ODM Services: Flexible tuning for custom sub-bands, pigtail lengths, housing colors, and laser-etched branding.
Competitive Factory Direct Pricing: Sourcing directly from the manufacturer eliminates middleman margins to maximize your profitability.
Scalable Production & Fast Delivery: Rapid prototype sampling and bulk manufacturing capability to satisfy tight project timelines.
Request a Custom Quote or Sample Today
Upgrade your UAV communication system with high-durability sub-1.2GHz fiberglass antennas. Contact our engineering team today for technical datasheets, bulk wholesale pricing, or sample orders!
