N-type RF Connector: KS-C30002 All-Copper Female Head for Unmatched Performance
In the dynamic realm of RF communication, where seamless signal transmission and robust connectivity are non-negotiable, the N-type RF connector, especially the KS-C30002 all-copper female head variant, emerges as a top-tier solution. Boasting a tooth length of 23MM, a waterproof gasket, and an innovative window-opening design, this connector is engineered to excel in a multitude of demanding scenarios.

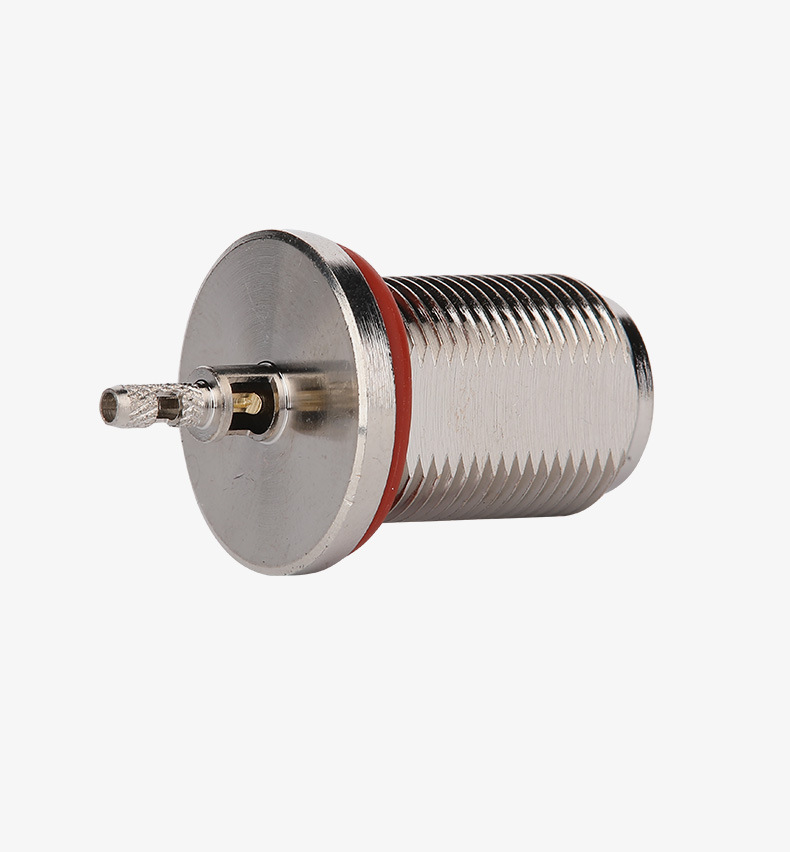

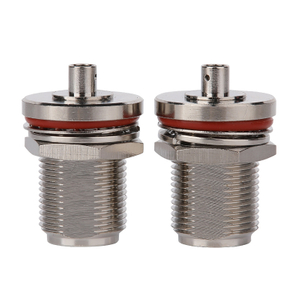

The KS-C30002 is a premium N-type RF connector featuring an all-copper female head. N-type connectors are widely recognized in the RF and microwave domains for their exceptional performance, characterized by low signal loss and high reliability, making them a preferred choice for critical communication systems.

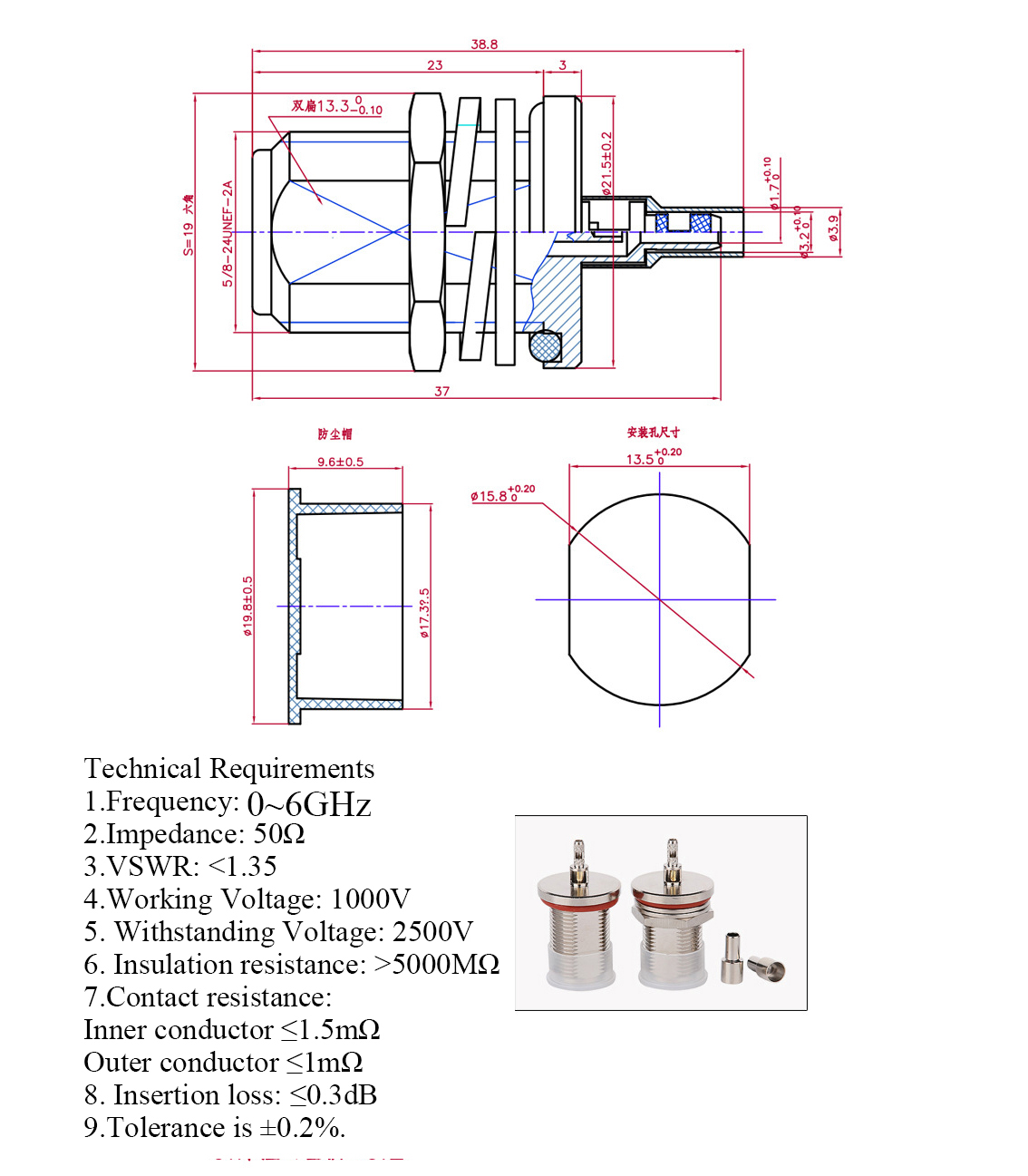

Tooth Length: With a precisely engineered tooth length of 23MM, the connector ensures a secure and stable mating with compatible male connectors. This optimal length guarantees a firm connection, minimizing the risk of signal degradation due to loose or unstable joints.

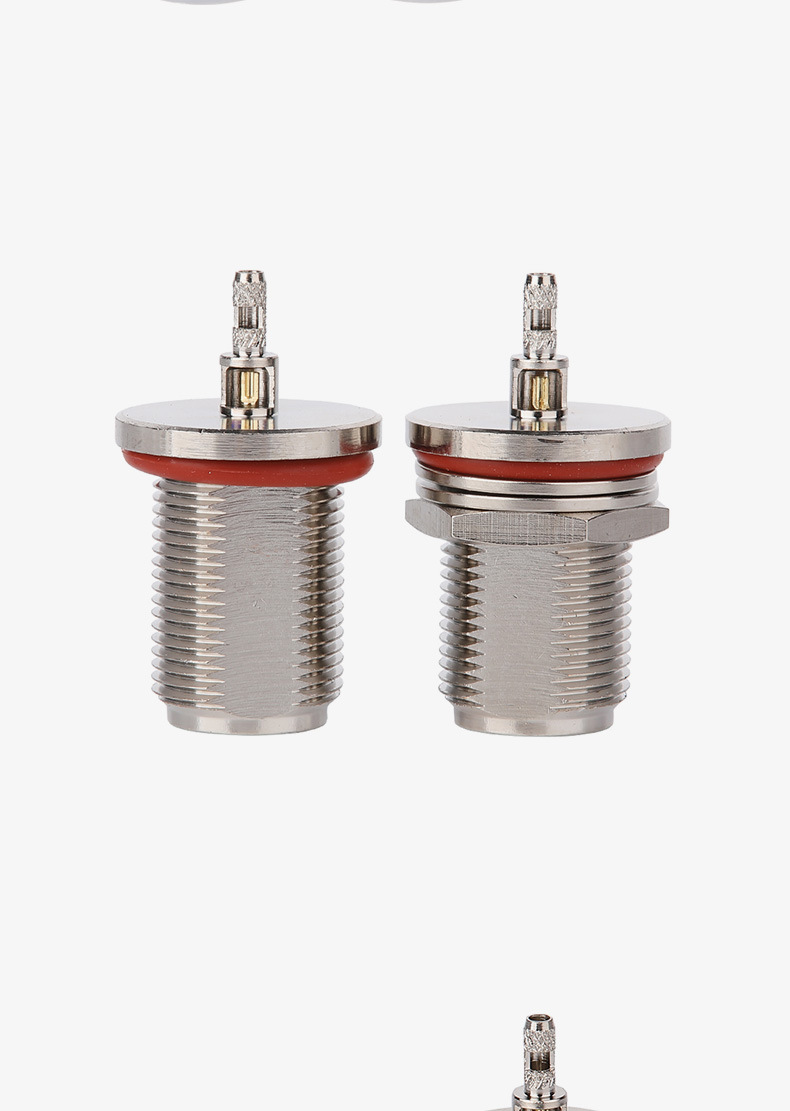

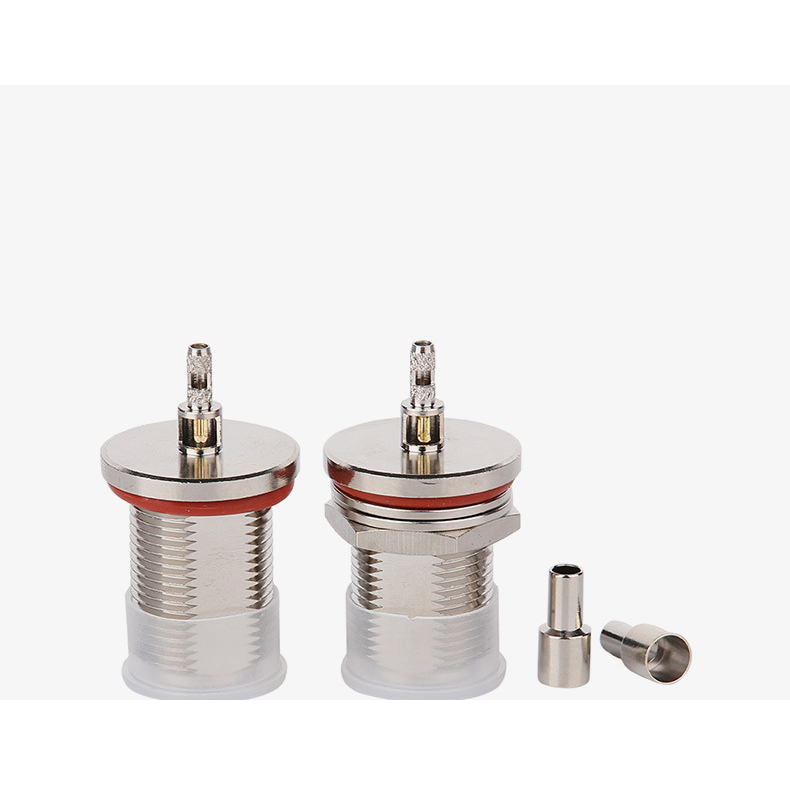

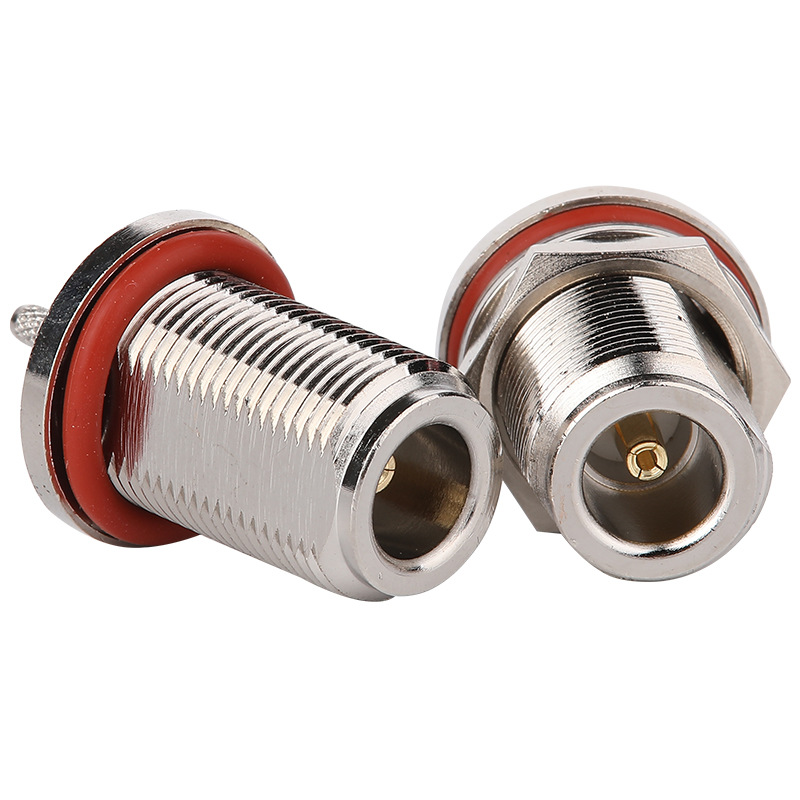

Waterproof Gasket: The integrated waterproof gasket is a standout feature, providing an effective barrier against moisture, dust, and other environmental contaminants. This makes the connector highly suitable for outdoor applications, such as base stations, where exposure to harsh weather conditions is inevitable.
Window-Opening Type: The window-opening design enhances the connector's electrical performance by reducing signal reflections and improving impedance matching. This design innovation ensures that the connector can operate efficiently across a broad frequency spectrum, delivering consistent and high-quality signal transmission.
Crafted from high-quality all-copper material, the KS-C30002 offers superior electrical conductivity, thermal dissipation, and corrosion resistance. The use of all-copper not only ensures excellent signal integrity but also extends the connector's lifespan, even in challenging environments. The robust construction of the connector allows it to withstand mechanical stresses, such as vibration and shock, without compromising performance.
Maintaining a standard impedance of 50Ω, the KS-C30002 ensures that signals are transmitted with minimal reflection and loss. This stable impedance is crucial for preserving signal quality, especially in high-frequency applications where even minor impedance mismatches can lead to significant signal degradation.
The connector is designed to operate effectively over an extensive frequency range, from DC (direct current) up to 11GHz. This broad frequency coverage makes it versatile enough to be used in a wide variety of RF systems, including those used in telecommunications, satellite communications, and radar systems.
With exceptionally low Voltage Standing Wave Ratio (VSWR) and insertion loss, the KS-C30002 guarantees optimal signal transmission. The low VSWR ensures that most of the signal energy is transferred to the load, while the low insertion loss minimizes the reduction in signal strength as it passes through the connector. These electrical performance attributes are essential for maintaining the integrity of high-speed data and voice signals.
The all-copper construction, combined with the waterproof gasket, provides the connector with excellent mechanical strength and environmental resilience. It can withstand extreme temperatures, humidity, and corrosive substances, making it suitable for deployment in both indoor and outdoor settings. The connector's ability to resist vibration and shock further enhances its reliability in mobile and industrial applications.
The KS-C30002 N-type RF connector finds extensive use in a diverse range of industries and applications:
Telecommunications: It is widely employed in cellular base stations, microwave links, and fiber-optic communication systems, where reliable and high-performance RF connections are essential for seamless communication.
Aerospace and Defense: In the aerospace and defense sectors, the connector is used in radar systems, satellite communication equipment, and military radios. Its robust construction and high reliability make it ideal for use in mission-critical applications.
Test and Measurement: RF test and measurement equipment, such as network analyzers and signal generators, rely on the KS-C30002 for accurate and stable signal connections. The connector's low signal loss and high precision contribute to the accuracy of test results.
Industrial Automation: In industrial automation systems, where RF communication is used for process control and monitoring, the provides a reliable connection that can withstand the harsh conditions of industrial environments.
The N-type RF connector, specifically the KS-C30002 all-copper female head with a 23MM tooth length, waterproof gasket, and window-opening design, is a high-performance solution for RF communication systems. Its combination of superior electrical performance, robust mechanical construction, and environmental durability makes it an ideal choice for a wide range of applications. Whether in telecommunications, aerospace, defense, test and measurement, or industrial automation, the KS-C30002 delivers consistent and reliable signal transmission, ensuring the smooth operation of critical RF systems. By choosing the KS-C30002, you are investing in a connector that offers exceptional performance, longevity, and value.
