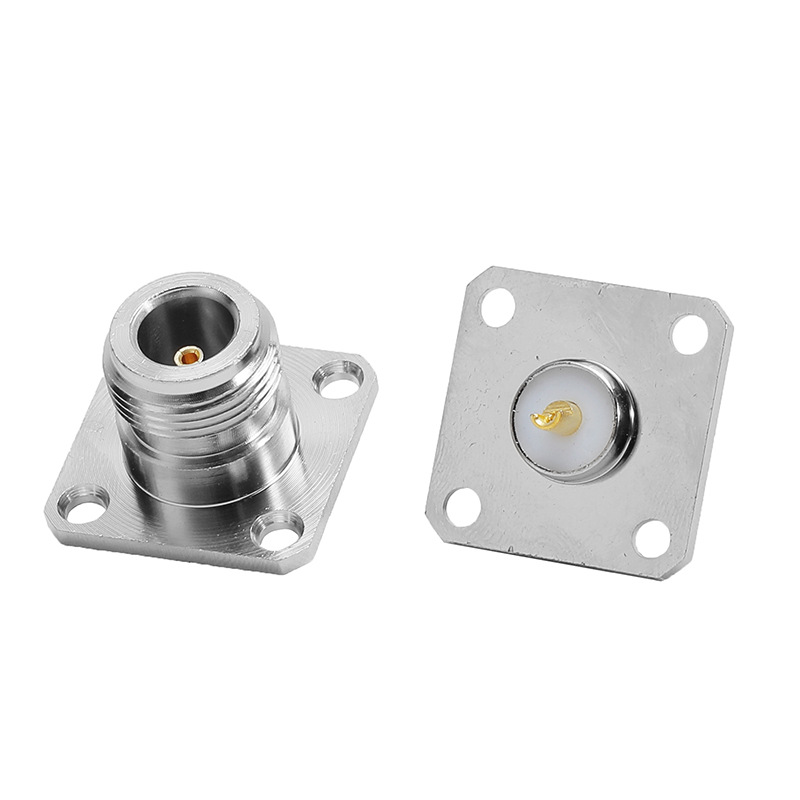

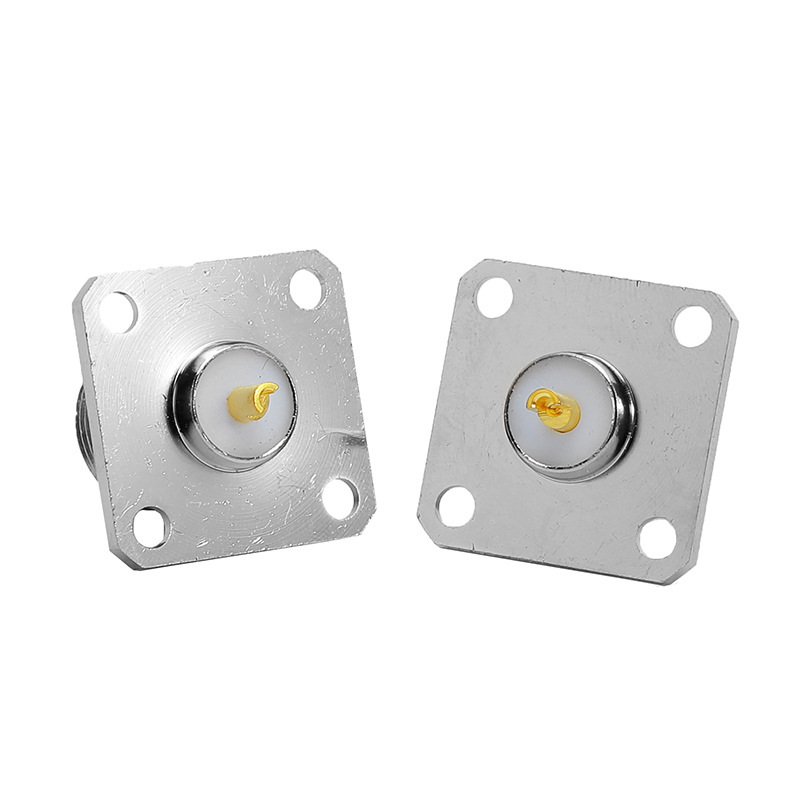

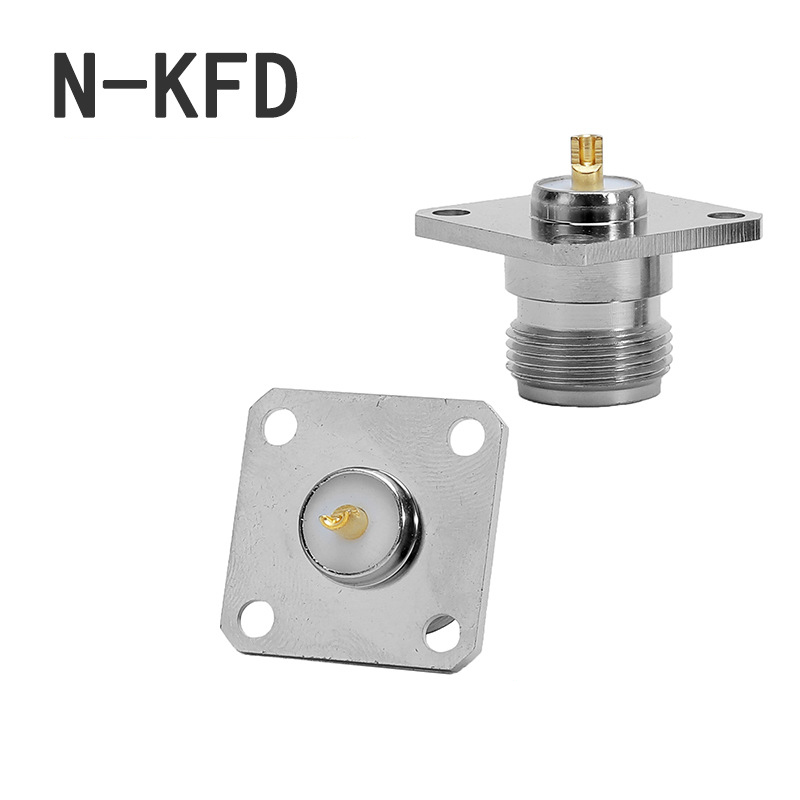

Four - Hole Square Plate Flange: The four - hole square plate flange design provides a stable and secure mounting solution. The square plate with precisely drilled holes allows for easy and accurate installation, ensuring a firm connection to the equipment or panel. This flange design is highly suitable for applications where a rigid and vibration - resistant connection is required.

Welded Head: The welded head construction offers enhanced durability and electrical conductivity. By welding the head, a seamless and reliable connection is achieved, minimizing the risk of signal loss or mechanical failure due to loose connections. This is especially important in high - frequency applications where even the slightest impedance change can affect the performance of the entire system.

All - Copper Construction: The connector is made entirely of copper, which is renowned for its excellent electrical conductivity. Copper ensures low resistance, allowing for efficient signal transfer with minimal power loss. Additionally, copper provides good mechanical strength, making the connector suitable for use in demanding environments.

Nickel - Plated Finish: The copper body is nickel - plated, which offers several advantages. Nickel plating enhances the corrosion resistance of the connector, protecting it from the effects of moisture, chemicals, and other environmental factors. This is crucial for ensuring a long service life, especially in outdoor or industrial applications. Moreover, the nickel - plated finish improves the electrical contact performance, reducing the likelihood of oxidation and improving the overall reliability of the connection.

Impedance: With a standard impedance of 50Ω, this N - type connector is compatible with a wide range of RF systems and cables. The precise impedance matching helps to minimize signal reflections and ensure smooth signal transmission, which is essential for maintaining the integrity of high - frequency signals.

Frequency Range: It can operate effectively over a broad frequency range, typically from DC up to 11GHz (in some cases, it can reach up to 18GHz). This wide frequency coverage makes it suitable for various applications, including wireless communication, radar systems, satellite communication, and test and measurement instruments.

Voltage - Related Performance:

Rated Voltage: The rated voltage of the connector is 1000 VRMS (at maximum sea level), which means it can safely handle high - voltage signals within this limit. This is important for applications where higher - power signals need to be transmitted.

Dielectric Voltage - Resistance: It has a dielectric voltage - resistance of 1500 VRMS (at maximum sea level), ensuring reliable insulation between the conductors and preventing electrical breakdown under normal operating conditions.

Insulation Resistance: The insulation resistance is ≥ 5000 MΩ, which indicates excellent insulation properties. This high value helps to prevent leakage currents and maintain the purity of the transmitted signals.

Contact Resistance:

Center Conductor: The center conductor has a maximum resistance of ≤ 1.5 mΩ, while the outer conductor has a maximum resistance of ≤ 0.5 mΩ. These low resistance values contribute to efficient power transfer and minimize signal attenuation.

Voltage Standing Wave Ratio (VSWR): The VSWR is an important parameter that measures the quality of the impedance match. For this connector, the VSWR is ≤ 1.3, which indicates a very good impedance match and minimal signal reflection. A low VSWR is crucial for ensuring efficient signal transmission and preventing power loss.

Durability: The connector is designed to withstand at least 500 mating cycles without significant degradation in performance. This high durability makes it suitable for applications where frequent connection and disconnection are required, such as in test and measurement setups or equipment maintenance.

Cable Compatibility: It is compatible with different types of RF cables, allowing for flexibility in system integration. Whether it's a standard coaxial cable or a specialized high - performance cable, this connector can provide a reliable connection.

Resilient Contact: The resilient contact is made of phosphor bronze, which offers good elasticity and electrical conductivity. This ensures a secure and stable connection even in the presence of vibrations or mechanical stress.

Aviation and Aerospace: In these industries, reliable and high - performance RF connectors are essential for communication systems, navigation equipment, and radar systems. The rugged construction and excellent electrical characteristics of this N - type connector make it suitable for use in aircraft, satellites, and other aerospace vehicles.

Radar Systems: Radar systems require connectors that can handle high - frequency signals with low loss and high reliability. The wide frequency range and low VSWR of this connector make it an ideal choice for radar applications, ensuring accurate signal transmission and reception.

Microwave and Digital Communications: From base stations to mobile devices, microwave and digital communication systems rely on efficient RF connectors. This N - type connector can support the high - speed data transfer and reliable communication required in these applications.

Test and Measurement Instruments: In laboratories and manufacturing facilities, test and measurement instruments need connectors that can provide consistent and accurate signal connections. The durability and precise electrical characteristics of this connector make it suitable for use in oscilloscopes, network analyzers, and other test equipment.
