The BNC male connector is a crucial component in the realm of RF (Radio Frequency) connectivity, designed to establish a secure and reliable connection with RG58 cables. This connector is engineered with precision to meet the demands of various applications, ensuring optimal signal transmission.
Design and Structure

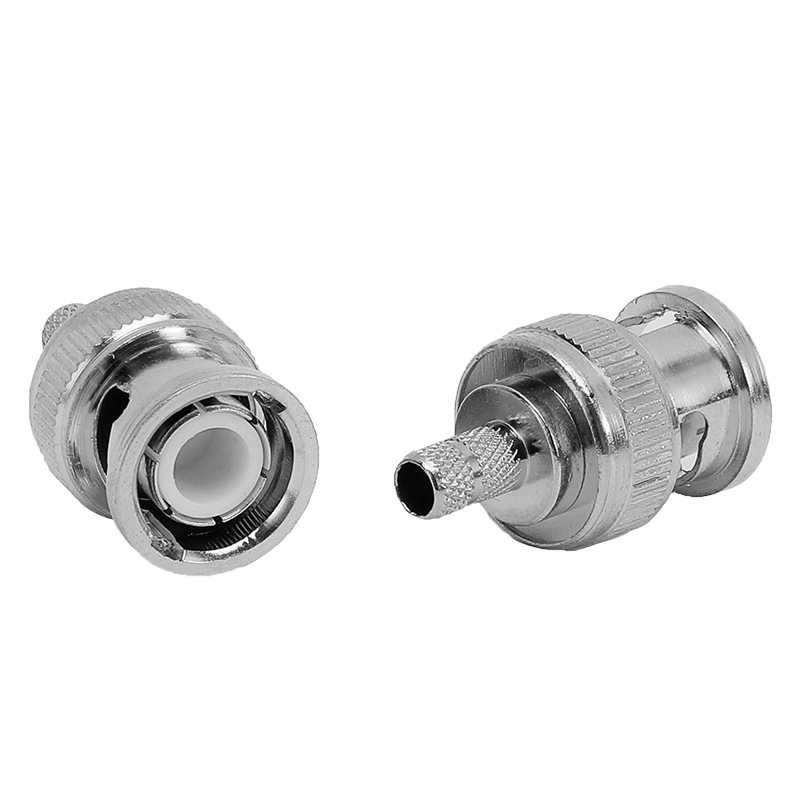

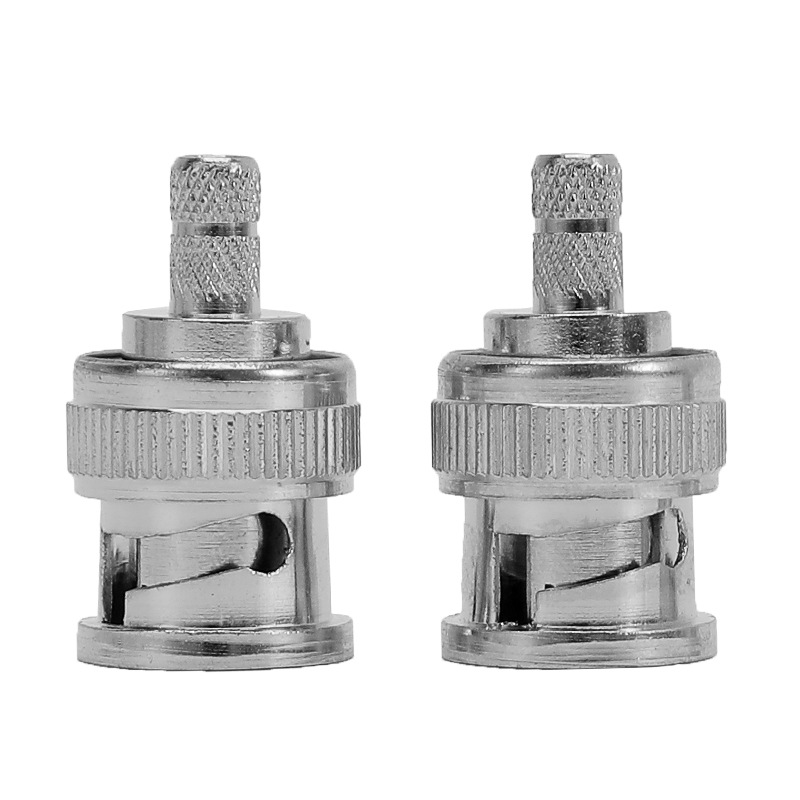

The BNC male connector features a slotted design, which plays a pivotal role in its functionality. The slot is carefully crafted to align with the corresponding features on the mating component, enabling a seamless and accurate connection. This design not only facilitates easy insertion but also contributes to the stability of the connection, preventing accidental disconnection during operation.
Constructed with durability in mind, the connector is made from high-quality materials. The outer body is typically composed of a robust material, such as brass, which provides excellent mechanical strength and resistance to environmental factors. The brass material also offers good electrical conductivity, ensuring efficient signal transfer. Additionally, the connector is often nickel-plated, further enhancing its corrosion resistance and durability, making it suitable for use in a wide range of environments.
At the heart of the BNC male connector is the center pin, which is a critical element for signal transmission. The center pin is designed to make direct contact with the center conductor of the RG58 cable, ensuring a reliable electrical connection. It is precisely engineered to maintain a consistent impedance, minimizing signal loss and distortion. The center pin is also gold-plated in many high-quality connectors, as gold offers superior conductivity and resistance to oxidation, further enhancing the performance of the connector.
Connection with RG58 Cables
The BNC male connector is specifically designed to work in tandem with RG58 cables, a popular choice for RF applications due to its excellent electrical properties. The connection process between the BNC male connector and the RG58 cable involves a combination of crimping and soldering techniques, which are carefully executed to ensure a secure and long-lasting connection.
Crimping Process

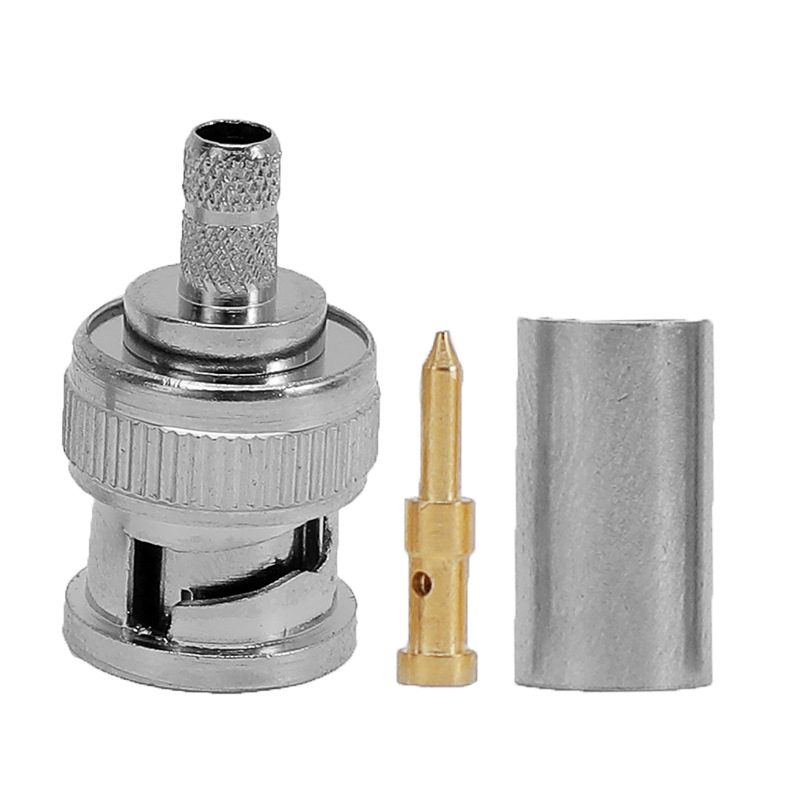

The crimping process is a crucial step in connecting the BNC male connector to the RG58 cable. First, the outer insulation of the RG58 cable is carefully stripped back to expose the inner braided shield and the center conductor. The ferrule, which is an integral part of the BNC male connector, is then placed over the exposed braided shield. A specialized crimping tool is used to apply precise pressure to the ferrule, securely fastening it to the braided shield. This crimped connection provides a strong mechanical bond and also ensures effective electrical shielding, minimizing interference from external sources.
Soldering with a Soldering Needle
After the crimping process, soldering is employed to further strengthen the connection and enhance electrical conductivity. A soldering needle, also known as a soldering iron tip, is used to apply a small amount of solder to the connection points. The center pin of the BNC male connector is soldered to the center conductor of the RG58 cable, ensuring a low-resistance electrical path for signal transmission. The soldering process also helps to prevent oxidation and corrosion at the connection points, further extending the lifespan of the connection. Additionally, soldering the outer shield connection provides an extra layer of security, ensuring that the shield remains intact and effective in protecting the signal from interference.
Performance and Applications
The BNC male connector, when properly connected to the RG58 cable, offers excellent performance in a variety of applications. With its ability to handle frequencies up to a certain range (commonly up to 4GHz in standard applications), it is widely used in RF and microwave systems. In these applications, the connector's low signal loss and stable impedance characteristics are crucial for maintaining the integrity of the transmitted signals.
In the field of test and measurement equipment, BNC male connectors are extensively used. They provide a reliable and repeatable connection, allowing for accurate measurements of RF signals. In telecommunications equipment, these connectors play a vital role in ensuring seamless communication between different components. They are also commonly found in video surveillance systems, where they are used to transmit high-quality video signals over RG58 cables. The quick-connect and disconnect feature of the BNC connector, facilitated by its bayonet-style locking mechanism, makes it convenient for installation and maintenance in these applications.
