The antenna is the "eyes and ears" of any wireless communication system. Its placement and installation technique directly determine the coverage range and transmission quality of your signal. Even with a high-performance high-gain antenna, incorrect installation can lead to significant signal attenuation and a high Voltage Standing Wave Ratio (VSWR).

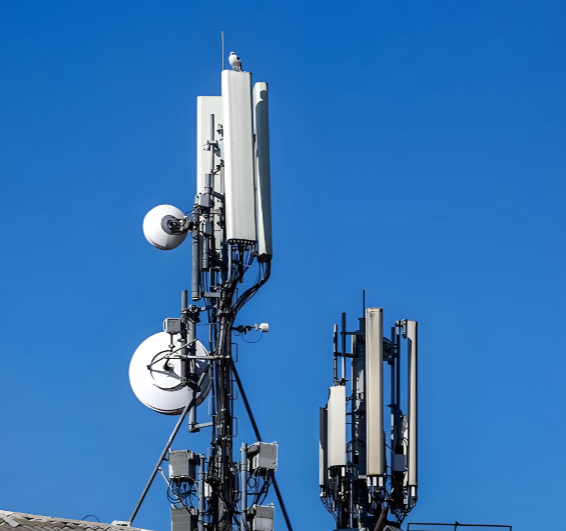

This ultimate guide will break down the crucial principles for selecting the best antenna installation location and share practical antenna signal optimization techniques, helping you achieve peak performance whether you are setting up a WiFi antenna, a 5G base station antenna, or an amateur radio rig.
I. The Four Golden Rules for Optimal Antenna Placement
Choosing the correct location is the first step toward maximizing antenna efficiency.
1. The Height Priority Principle
Core Idea: Maximizing the antenna installation height is crucial for achieving better Line of Sight (LOS) transmission over longer distances.
SEO Keywords: Antenna installation height, Line of Sight (LOS), Fresnel Zone.
Techniques:
Clear Obstacles: Ensure a clear path between your antenna and the target receiver, free from hills, tall buildings, or dense foliage.
Maximize the Fresnel Zone: Avoid obstructions that encroach upon the primary energy area of the signal path, known as the Fresnel Zone, especially the inner 6/10 section.
2. The Distance-from-Interference Principle
Core Idea: Minimize Electromagnetic Interference (EMI) from nearby electronic devices to keep the signal clean.
SEO Keywords: Electromagnetic Interference (EMI), antenna signal noise, metal reflection.
Techniques:
Avoid Power Sources: Do not install the antenna directly near large electric motors, transformers, or high-voltage power lines.
Minimize Reflection: Keep the antenna away from large metallic surfaces, such as metal roofs or air conditioning units, to reduce signal reflection and multipath effects.
3. The Structural Stability and Safety Principle
Core Idea: Ensure the installation structure can withstand wind load and the weight of the antenna for long-term operational safety.
SEO Keywords: Antenna wind load calculation, antenna lightning protection, antenna corrosion resistance.
Techniques:
Secure Mounting: Use high-quality, corrosion-resistant brackets, especially for outdoor antenna installations.
Grounding and Lightning Protection: Install a professional lightning arrestor and grounding system for outdoor setups. This is a critical technique for protecting both equipment and personnel.
4. The Minimize Feeder Loss Principle
Core Idea: The longer the feeder line (the cable connecting the antenna to the device), the greater the signal loss.
SEO Keywords: Feeder loss, low-loss coaxial cable, antenna cable length.
Techniques:
Shortest Path: Choose the shortest feeder path possible without sacrificing height or line of sight.
Use Quality Cable: Employ low-loss, impedance-matched coaxial cables to preserve the maximum antenna gain.
II. Installation Techniques for Specific Antenna Types
Different antenna types require specific installation considerations.
| Antenna Type | Key Installation Technique | Key SEO Keywords |
| Omnidirectional Antenna | Vertical Center: Ensure a balanced radiation pattern by avoiding tall obstacles on the sides. | Omnidirectional antenna setup, 360-degree coverage |
| Directional Antenna (e.g., Yagi) | Precise Alignment: Must be accurately aimed at the target receiver; use a compass or GPS tool for calibration. | Directional antenna alignment, Yagi antenna installation |
| Outdoor WiFi Antenna | Weather Sealing: Ensure all connector joints and the antenna body are properly sealed against water ingress to prevent failure. | Outdoor antenna waterproofing, high-gain WiFi antenna |
| Vehicle/Mobile Antenna | Center Mounting: Mount as close to the center of the vehicle's metal roof as possible to utilize the roof as an effective Ground Plane. | Mobile antenna grounding, magnetic mount antenna |
III. Post-Installation Optimization and Tuning Techniques
Even with the best placement, professional tuning is essential to unleash the antenna's maximum potential.
1. VSWR Measurement and Impedance Matching
Tuning Focus: VSWR is the key metric for antenna system efficiency. A high VSWR indicates that power is being reflected back to the transmitter.
Techniques: Use an SWR Meter to measure the ratio. Tune the system by adjusting the feeder line length or using an antenna tuner to achieve an ideal low value.
SEO Keywords: VSWR measurement, how to lower VSWR, antenna tuner.
2. Polarization Alignment
Tuning Focus: The polarization direction (horizontal or vertical) of the transmitting and receiving antennas must be aligned for optimal reception.
Techniques: Check the polarization orientation of all antennas in your array to ensure both the transmitter and receiver are matched.
Conclusion
Mastering antenna installation placement and techniques is far from a simple plug-and-play process. From selecting a location that prioritizes height and avoids interference, to minimizing feeder loss, and finally, to precise VSWR tuning, every step is critical to the quality of your communication. By following the principles and techniques outlined in this guide, your antenna system will be positioned to deliver its designed performance for reliable and efficient wireless communication.
