In the rapidly evolving landscape of wireless communication, the antenna is no longer a simple metal conductor. With the introduction of the millimeter-wave (mmWave) band, Massive MIMO technology in 5G, and the connection of billions of Internet of Things (IoT) devices, the antenna has evolved from a relatively independent passive component into a highly integrated smart subsystem within the overall Radio Frequency Front-End (RFFE) architecture.
Current antenna design faces three core challenges: achieving multi-band coverage in extremely miniaturized terminals; mitigating high losses at high frequencies; and enabling software-defined dynamic beam control. This article serves as your industry guide, where a professional antenna engineer deeply analyzes these challenges and reveals how the industry is responding with disruptive innovations.
The frequency increase is an inevitable choice for 5G to pursue ultra-high bandwidth, but it introduces extreme physical limitations to antenna design.
The Conflict Between Path Loss and EIRP CompensationPhysical Bottleneck: When the frequency increases from Sub-6GHz to 28 GHz or 39 GHz, the Free-Space Path Loss increases quadratically. Engineers must compensate for this signal attenuation by significantly increasing the Effective Isotropic Radiated Power (EIRP).
Antenna Innovation: Massive MIMO and Beamforming: This is the only effective method to overcome the path loss.
• Massive MIMO utilizes an array of hundreds of antenna elements to concentrate the radiated energy into a narrow Main Lobe, thereby achieving high array gain.

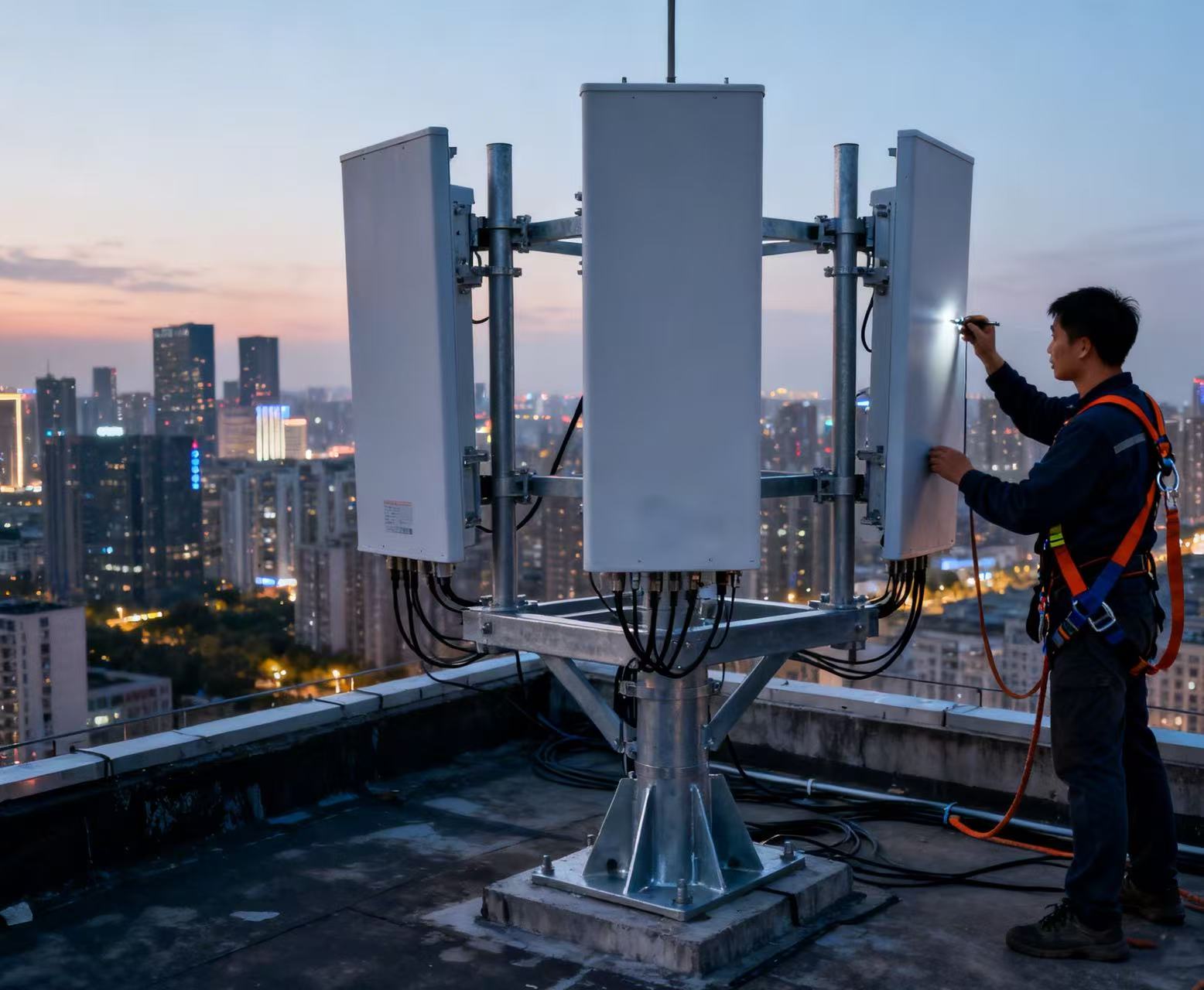

• Industry Trend: This directly led to the widespread adoption of the Active Antenna Unit (AAU), which tightly integrates the Power Amplifier (PA), Transceiver (TRX), and antenna elements. This eliminates the transmission loss introduced by traditional feeders and ensures the system's high Total Radiated Power (TRP) output.
H3: 1.2. Antenna Element Coupling and Heat Dissipation at High Frequencies
• Mutual Coupling: In Massive MIMO arrays, as the spacing between antenna elements shrinks, mutual coupling intensifies. This severely degrades the array's radiation efficiency and beamforming performance. Isolation solutions, such as decoupling networks or Electromagnetic Band Gap (EBG) structures, are required.
• Heat Dissipation Challenge: The large number of RF chips and PAs within an AAU generate substantial heat during high-power operation. High temperatures cause the dielectric constant of the antenna materials to drift,leading to resonance frequency detuningand performance degradation. Precise thermo-electric co-simulation is mandatory.
In space-constrained terminals like smartphones and smartwatches, antennas are required to support over a dozen bands (4G/5G/Wi-Fi/GPS) in minimal volume, creating a classic size-efficiency-bandwidth trilemma.
Miniaturization Techniques: To shrink the antenna size to λ/10 or less, engineers often use techniques like inductive loading or structural bending.
Physical Limitation: According to Chu's Limit, there is a theoretical maximum for the bandwidth and efficiency of small antennas. To maintain resonance, miniaturized antennas often have a very high Quality Factor , which leads to narrow bandwidth and significant conductor ohmic losses. Consequently, the radiation efficiency often falls below 50\%.
To overcome this dilemma, the industry focuses on materials and manufacturing processes:
High-Dielectric Constant Ceramics: Used in GPS/IoT modules. They effectively reduce size by utilizing a high εᵣ while maintaining acceptable efficiency.
LDS/FPC Processes: Laser Direct Structuring (LDS) and Flexible Printed Circuit (FPC) antennas allow the antenna pattern to be laid out along the complex non-planar surfaces inside the device, maximizing the use of peripheral space for multi-band co-existence.
Antenna Tuning Modules (Tuner): These modules employ programmable variable capacitors/inductors to dynamically adjust the antenna's impedance matching and electrical length across different frequency bands. This ensures the VSWR remains within the optimal range (e.g., VSWR < 2:1) despite frequency changes or hand-held user effects.
·
The future communication environment is dynamic and complex. The antenna must evolve from a static piece of hardware into a software-defined component capable of sensing and adapting in real-time.
AiP Definition: Antenna in Package (AiP) technology integrates the antenna elements, RFFE chips (PA, LNA, TRX), and even baseband components within the same package or module. This completely eliminates the high-frequency transmission lines between the chip and the package substrate, minimizing interconnect loss.
Convergence Trend: AiP drives deep collaboration between antenna engineers, chip designers, and packaging engineers, with the ultimate goal of achieving AoC (Antenna on Chip), where the antenna is realized directly on the silicon.
Principle: The Intelligent Reflecting Surface (IRS / RIS) is one of the hottest 6G applications. RIS uses a large-scale Metasurface array where each element's phase reflection is controlled by software programming. This transforms ambient reflectors (like walls and glass) into controllable "signal mirrors."
Value: RIS effectively overcomes the blockage of mmWave signals, steering energy toward areas that are difficult to cover directly. This significantly boosts network energy efficiency and coverage, enabling a Programmable Wireless Environment.
The three core challenges posed by the 5G/IoT era—high-frequency integration, extreme miniaturization, and dynamic control—are accelerating the industry's transition towards intelligence, integration, and software-defined capabilities.
The role of the antenna engineer is transforming from a traditional electromagnetic field solver to an interdisciplinary system integrator. Future success will depend on mastering advanced technologies like AiP and RIS, and possessing comprehensive skills in thermal management, material science, and AI-assisted design.
