A Deep Dive into Our Antenna Tuning & RF Testing Lab

A Deep Dive into Our Antenna Tuning & RF Testing Lab

In the world of wireless communication, the journey from concept to realization is defined by one thing: precision. Our engineering team recently reached a milestone in the development of our high-performance Omni-directional Antenna.

Here is an inside look at the rigorous processes we employ to ensure unparalleled signal reliability and hardware durability.

1. Artisan-Level Precision Assembly

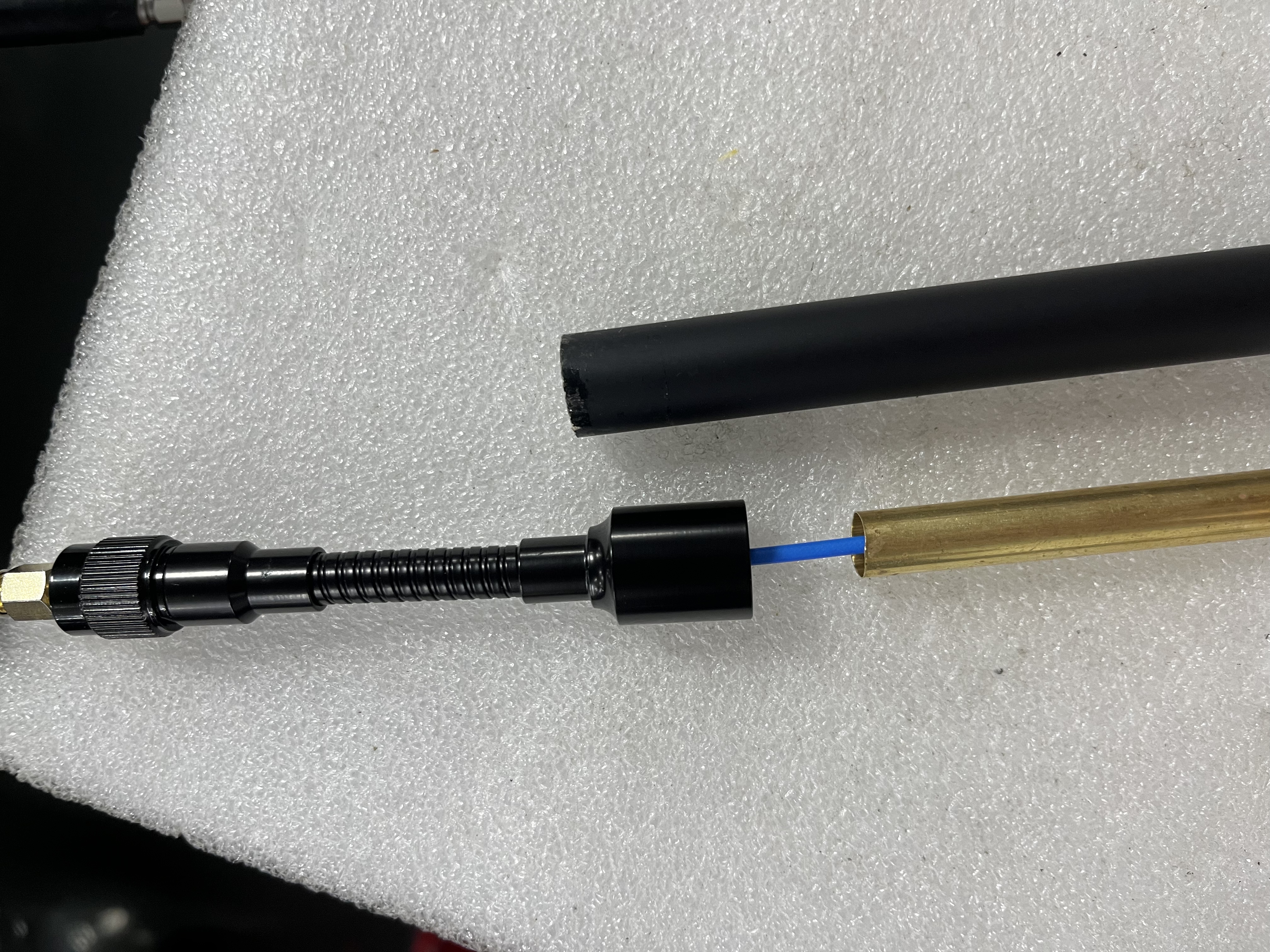

An antenna’s performance is only as good as its physical integrity. Our technicians perform Precision Soldering to connect low-loss coaxial feeders to the antenna elements with microscopic accuracy.

• Premium Materials: We utilize high-conductivity brass sleeves as part of the matching network to ensure maximum power transfer efficiency.

• Mechanical Accuracy: Every connection point is calibrated at the micron level to minimize parasitic capacitance and maintain impedance consistency across the board.

2. Real-Time Impedance Matching via VNA

Without quantifiable data, tuning is just guesswork. We utilize the industry-standard Agilent (Keysight) E5071B Vector Network Analyzer (VNA) to monitor critical electrical parameters in real-time.

• VSWR Optimization: Our goal is to minimize the Voltage Standing Wave Ratio (VSWR) within specific bands (e.g., 870MHz - 940MHz). As shown in our lab results, we achieved a stellar reading of approximately 1.65, indicating minimal signal reflection and highly efficient energy radiation.

• Return Loss Management: By fine-tuning the matching circuits, we ensure the antenna perfectly interfaces with standard 50Ω transmission systems, preventing power loss and protecting transmitter hardware.

3. 3D Verification in an Anechoic Chamber

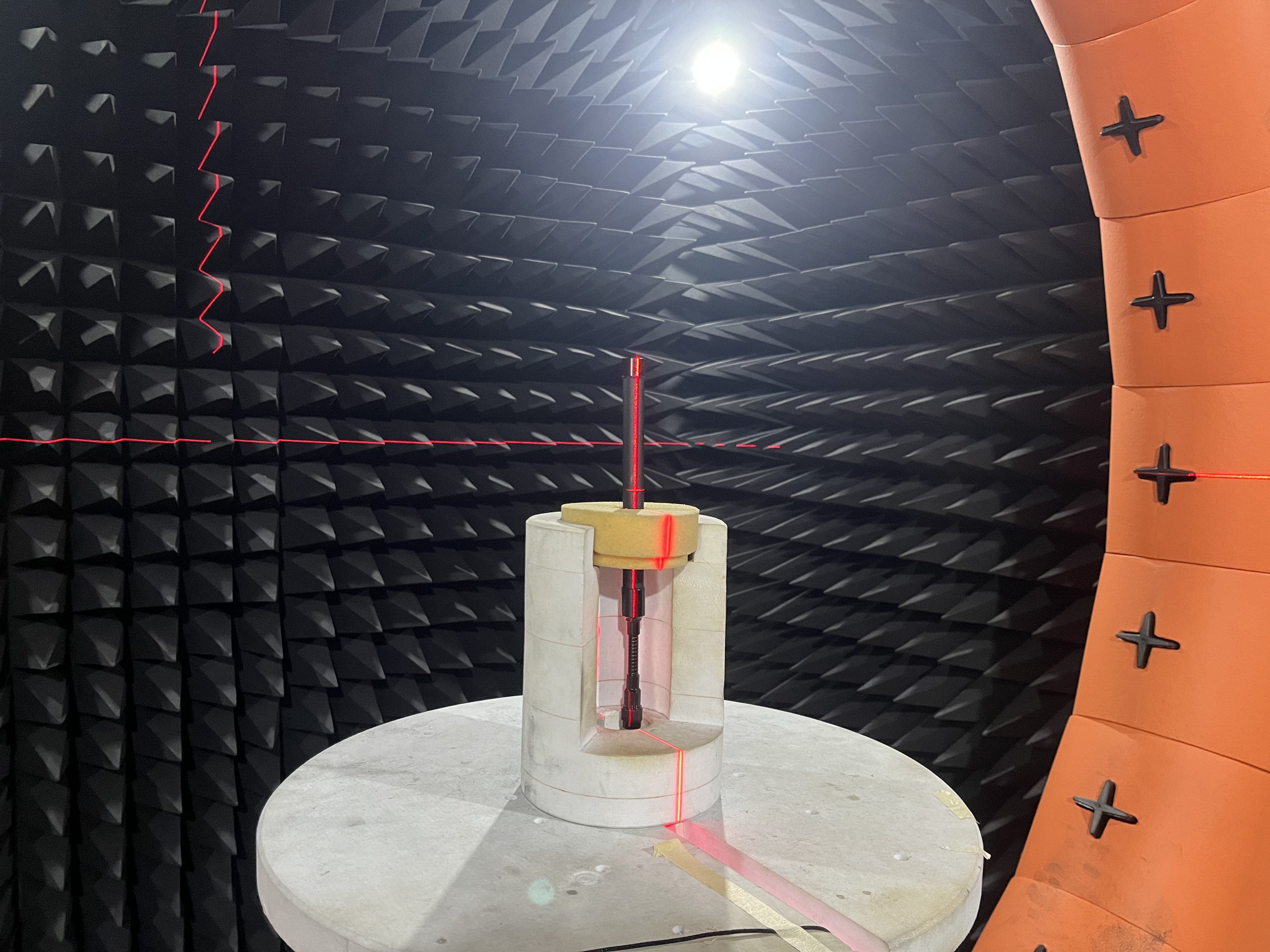

To eliminate external electromagnetic interference and simulate a "free space" environment, final testing is conducted in our state-of-the-art Anechoic Chamber.

• Laser Alignment System: Precision is maintained using laser-guided alignment (as seen in our setup) to ensure the antenna is perfectly vertical on the test turntable. This is critical for capturing accurate Gain and Radiation Patterns.

• Multipath Suppression: The specialized RF-absorbing materials in our chamber eliminate reflections, ensuring that the data we collect represents the antenna’s true radiation performance.

4. Ruggedized Durability for Harsh Environments

Once internal tuning is perfected, the antenna is sealed within a high-performance, UV-stabilized polymer or fiberglass radome. This housing protects the delicate internal resonators from moisture, dust, and temperature extremes, ensuring long-term stability in the field.

Why Choose Our Wireless Solutions?

We don’t just manufacture antennas; we engineer connectivity. By combining master craftsmanship with cutting-edge RF measurement technology, we guarantee that every product we ship delivers superior performance in the most complex radio environments.
