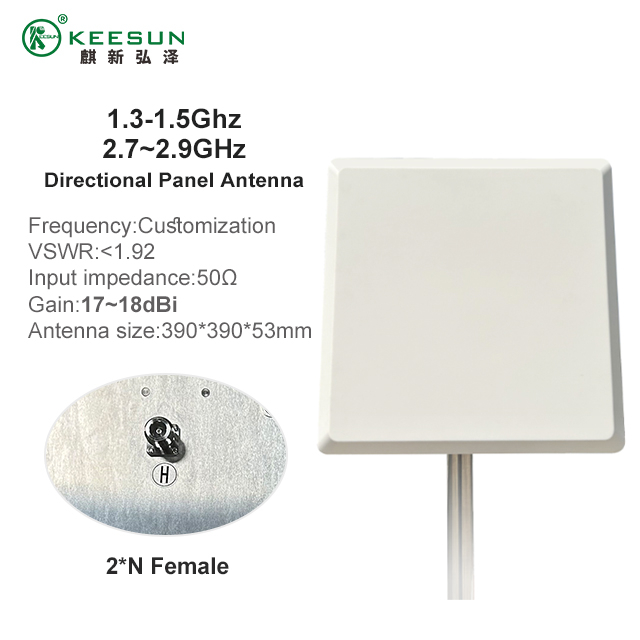

Product Overview: Engineered for Professional Wireless Applications
This high-performance MIMO Directional Panel Antenna is specifically designed for professional-grade wireless communication systems requiring high gain, a narrow beamwidth, and reliable connectivity. Utilizing advanced MIMO (Multiple-Input Multiple-Output) technology, it supports Vertical + Horizontal Dual Polarization, ensuring exceptional signal stability and data throughput in complex environments.
With its compact yet robust design (Dimensions: 390 x390 x 53mm, it is built to withstand various harsh outdoor conditions, making it an ideal choice for deploying Point-to-Point (PtP) and Point-to-Multipoint (PtMP) wireless links, video surveillance backhaul, and mission-critical Unmanned Aerial Vehicle (UAV) Data Links.
Core Performance Highlights and Technical Specifications
| Feature | Parameter | Advantage |
| Gain | 17 to 18dBi | Achieves long-distance transmission and high signal strength. |
| Beamwidth | Horizontal (H): 20°, Vertical (V): 20° | Precisely focuses energy, effectively suppresses interference, and improves link quality. |
| MIMO/Polarization | Dual Polarization (Vertical V + Horizontal H) | Enhances spectral efficiency and fading resistance for higher data rates. |
| Frequency Range | Customizable (Covers multiple bands from 1.3GHz to 2.9GHz | Flexible adaptation for 4G/5G in-fill, private network communication, ISM bands, and more. |
| Connector | N-Female | Industry-standard interface for reliable, low-loss connections. |
| Dimensions | 390x 390x 53mm | Compact design for easy installation and integration. |
Featured Applications: Pushing the Boundaries of Connectivity
This directional panel antenna is widely applied in several demanding fields due to its superior performance:
1. Unmanned Aerial Vehicle (UAV) Data Links
Key Application: Many customers successfully use this antenna for data transmission between the UAV ground station and the aerial drone.
Advantage: The narrow beamwidth and high gain ensure that the ground station receives stable and clear video transmission and control signals, even during long-range or high-altitude UAV operations. The MIMO technology guarantees the necessary bandwidth for high-definition video backhaul and synchronized real-time control commands.
2. High-Speed Broadband Wireless Backhaul
Application Scenarios: Communication coverage in remote areas, temporary network deployment, outdoor video surveillance, oil/gas field data acquisition, etc.
Advantage: The precise 20° beam makes it an ideal choice for medium-to-long-range Point-to-Point (PtP) or sector coverage (PtMP), effectively overcoming geographical obstacles and long-distance transmission loss.
3. Private Network and Internet of Things (IoT) Communication
Custom Frequency Support:Can be customized to operate within the 1.3GHz to 2.9GHzrange (e.g. 1.3GHz ~ 1.5GHz,1.6GHz ~ 1.8GHz,1.9GHz ~ 2.1GHz,2.2GHz ~2.4GHz,2.5GHz~ 2.6GHz,2.7GHz~ 2.9GHz),perfectly matching variouscustomized private network frequency bands.
Why Choose Our Directional Panel Antenna?
Exceptional Directionality and Anti-Interference: The 20H 20Vbeamwidth concentrates energy in a specific direction, significantly increasing the effective communication range and reducing interference from non-target directions.
Professional-Grade MIMO Design: Vertical and Horizontal polarization configuration maximizes link capacity and reliability.
Flexible Frequency Customization: From 1.3GHz to 2.9GHz, we can optimize and customize the antenna to your exact project requirements, offering the 17 ~ 18dBi high-gain version.
Upgrade Your Wireless Link Today!
Whether you are looking for a more reliable data link antenna for your UAV system or need to deploy a high-bandwidth, long-range wireless backhaul link, this high-gain 20MIMO directional panel antenna is the key component to achieving your goals.
[Contact Us] for customized frequency solutions, detailed technical specifications, and quotes, and let your wireless communication system reach unprecedented performance levels!
