With the rapid expansion of the low-altitude economy, Unmanned Aerial Vehicles (UAVs) have evolved from simple aerial cameras into essential industrial tools for power line inspection, precision agriculture, and emergency rescue. In this evolution, the antenna—the "final centimeter" of signal transmission—directly determines the operational radius and flight safety of the drone.
Recently, our R&D engineering team addressed the communication challenges of UAVs in complex environments through a series of breakthroughs in antenna design and rigorous testing. Here is a deep dive into our latest R&D practices and technical milestones.
1. The "Anchor" of Signal Stability: High-Gain Omnidirectional Design
During flight, a drone’s constant tilting, pitching, and high-speed rotation continuously shift the antenna's polarization. Standard vertical polarization often results in signal "fades" or dropouts.
R&D Breakthrough: We have implemented Circular Polarization (CP) technology, specifically for FPV and long-endurance industrial models. By precisely calculating the phase difference of the radiating elements, our new generation of antennas effectively suppresses Multi-path Interference.
The Result: Testing shows a 30% reduction in video transmission jitter when flying through urban canyons or dense forests.

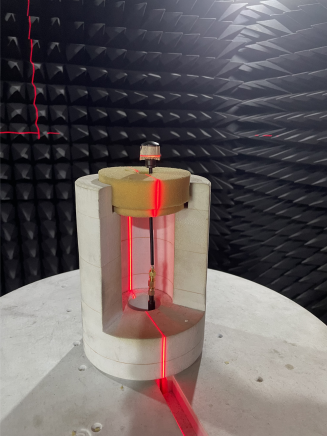

To ensure peak performance, every design undergoes extensive testing in our standard Anechoic Chamber. By simulating real-world electromagnetic interference, we optimize axial ratios to ensure seamless connectivity at long ranges.
2. The Art of Integration: Multi-Band Synergy
Modern industrial drones require simultaneous integration of GNSS (Positioning), 4G/5G (Data Link), and Image Transmission. Installing multiple independent antennas increases wind resistance and causes severe Electromagnetic Interference (EMI).
Engineering Strategy: Our team utilized Fractal Antenna structures to achieve wideband coverage from 1.2 GHz to 5.8 GHz within a compact footprint of just $60\text{ mm}$.
Isolation Technology: By integrating high-isolation notch filters, we ensure that high-power data transmission does not desensitize the weak GNSS signals, maintaining centimeter-level RTK positioning accuracy.
3. Precision Engineering: VSWR and Power Efficiency
For a UAV antenna, efficiency isn't just a metric—it’s about protecting the hardware and extending battery life. High reflection loss can cause the onboard transmitter to overheat or even fail.

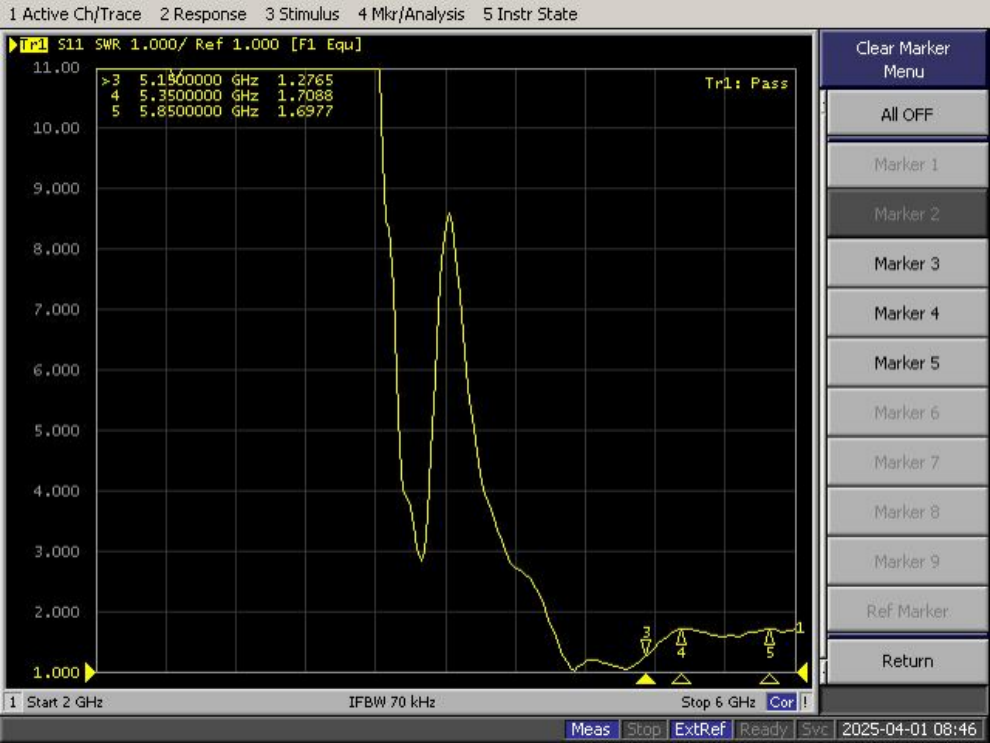

Technical Data: As shown in the test plot, our 5.8GHz UAV antenna maintains a VSWR below 1.8 (Return Loss < -10dB). This ensures maximum power transfer to the air, significantly increasing transmission range while protecting the drone’s internal RF circuitry.
Looking Ahead: The Foundation of Low-Altitude IoT
UAV antenna R&D is more than just hardware assembly; it is a profound understanding of the electromagnetic environment. Moving forward, we are committed to the miniaturization of Millimeter Wave (mmWave) and Satellite Link antennas to provide more stable and efficient connectivity for our global partners.
If you are looking for customized antenna solutions for your UAV project, contact our engineering team today to explore the possibilities.
