Low Loss RF Cable Selection Guide: RG58 Vs. LMR200 Vs. LMR400

In Radio Frequency (RF) system design, the choice of coaxial cable often determines the signal integrity of the entire system. Many engineers face a common dilemma in the early stages of a project: should they stick with the budget-friendly RG58 or upgrade to the high-performance LMR series?

This article provides an in-depth analysis of the performance differences, attenuation data, and optimal application scenarios for these three mainstream cables to help you find the perfect balance between cost and performance.

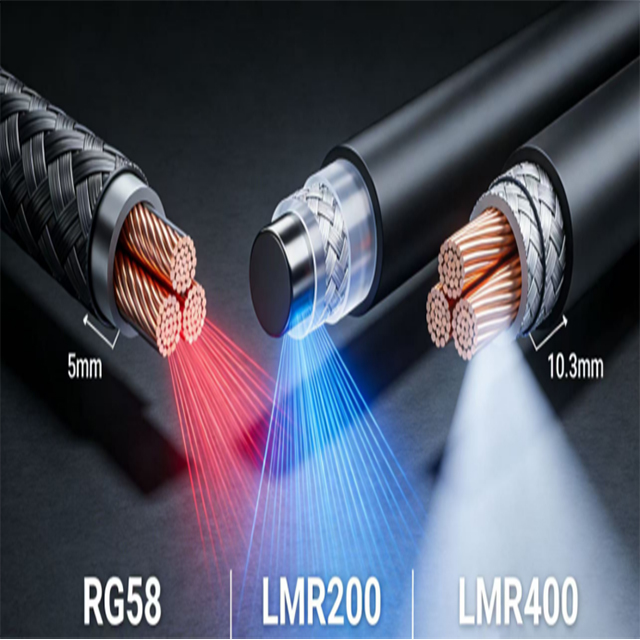

1. Core Parameters: Physical Structure and Electrical Characteristics

Before diving into applications, it is essential to understand the fundamental structural differences between these cables.

Why Shielding Efficiency Matters

While RG58 typically features a single braided shield, the LMR series utilizes a "foil + braid" double-shielding design. This results in much higher Shielding Effectiveness (SE)—often >90dB—significantly reducing EMI (Electromagnetic Interference) in high-frequency environments.

2. Attenuation Comparison: Hard Data on Signal Loss

"Attenuation" is the most critical metric for RF engineers. The table below shows the typical power loss in dB per 100 feet (approx. 30 meters) at various frequencies:

Key Takeaways:

RG58 suffers from massive signal loss above 1GHz, making it unsuitable for modern Wi-Fi or 5G applications.

LMR-400 offers extremely low loss, providing an irreplaceable advantage in long-distance transmissions (e.g., base station to antenna).

3. RG58: Cost-Effective Solution for Short Distances

RG58 is a veteran in the RF world. Thanks to its stranded center conductor, it offers excellent flexibility.

Pros: Highly affordable, very flexible, easy to route in tight spaces (like vehicle dashboards).

Cons: High attenuation; not suitable for long runs or high-frequency bands.

Best For: Mobile radio (VHF/UHF), short lab jumpers, and low-frequency signal testing.

4. LMR-200: The Sweet Spot Between Performance and Size

If you find RG58 too "lossy" but LMR-400 too bulky, LMR-200 is the ideal middle ground. It shares a similar diameter with RG58 but offers a significant leap in performance.

Pros: Nearly half the loss of RG58; compatible with standard SMA connectors.

Cons: Slightly larger bend radius than RG58.

Best For: Indoor Wi-Fi antenna extensions, IoT gateway jumpers, and short-to-medium outdoor low-power nodes.

5. LMR-400: The Industry Standard for Long-Range Transmission

When high performance is non-negotiable, LMR-400 is the recognized gold standard.

Pros: Ultra-low attenuation, superior interference rejection, rugged for long-term outdoor use.

Cons: Thick diameter (~10mm), large bend radius, higher installation cost.

Best For: Outdoor base stations, satellite receivers, 5G RRU connections, and any run exceeding 10 meters.

6. Expert Selection Tips: Avoiding Common Pitfalls

As professional RF connectivity experts, we recommend considering these three factors:

Link Budget: Calculate how much loss (dB) your system can tolerate. If your cable run exceeds 5 meters and operates above 2.4GHz, go with LMR-400.

Installation Environment: For applications requiring frequent movement or extreme tight spaces, consider "UltraFlex" versions of LMR-240 or LMR-200.

Connector Matching: Ensure your connectors (SMA, N-Type, TNC) are precisely rated for the specific cable model. LMR-400 requires specialized large-format connectors.

Conclusion: Which One Should You Buy?

Short distance (<2m) & Low frequency: Choose RG58 to save costs.

Medium distance or Wi-Fi applications: Choose LMR-200 for stability.

Long distance (>5m) or Maximum signal integrity: Choose LMR-400.
