In wireless communication product development, engineers frequently face a frustrating reality: a significant discrepancy between "simulation results" and "real-world performance." An antenna design that performs flawlessly in an ideal simulation can often see its performance severely degraded once deployed.
The core of this problem lies in the test environment. Measurements taken in the wrong environment will lead to misleading test results, ultimately impacting market performance and user experience.
Therefore, selecting the correct test environment is the critical first step in ensuring your product performs as designed and meets customer expectations. This guide will provide an in-depth comparison of the two main wireless testing environments: the Anechoic Chamber and the Reverberation Chamber, helping you make an informed decision.

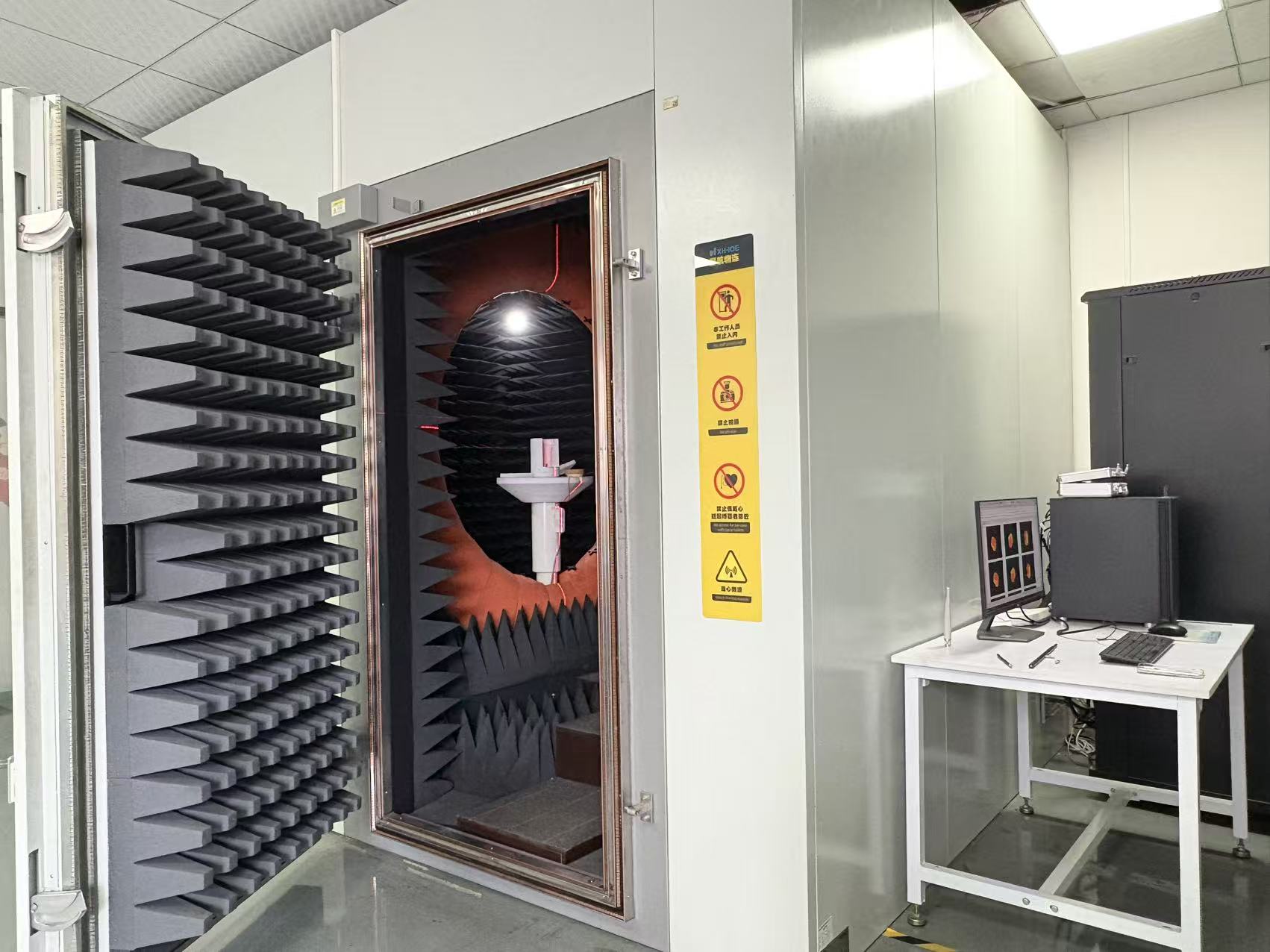

The Anechoic Chamber: The King of Precision Measurement
The Anechoic Chamber is the recognized gold standard for high-precision measurement in wireless testing.
Working Principle and Structure
The chamber's core principle is to simulate a Free Space environment. It achieves this by covering all surfaces with absorbent materials (typically pyramidal or wedge-shaped) to eliminate all potential electromagnetic reflections, ensuring the Device Under Test (DUT) only receives the direct signal from the transmitting probe.
Structural Features: Chambers are typically categorized as Full Anechoic (all six surfaces covered) or Semi-Anechoic (the floor is a conductive reflective plane, often used for EMC and OTA testing).
Advantages: When to Choose It?
If you require precise spatial information and detailed radiation characteristics, the Anechoic Chamber is indispensable:
If you require precise spatial information and detailed radiation characteristics, the Anechoic Chamber is indispensable:
High-Precision Patterns: It is the only environment capable of providing detailed spatial distribution information such as the Antenna Radiation Pattern, Beamwidth, and Side Lobe Levels.
High Controllability and Isolation: Allows for precise isolation and control of the transmit and receive paths, making it the authoritative standard for both Active Tests (TRP and TIS) and Passive Tests.
Key Metrics Analysis: Essential for tests demanding high angular fidelity, such as complex MIMO channel capacity validation and accurate performance assessment of 5G Beamforming capabilities.
Limitations and Challenges
Cost and Maintenance: Chamber construction involves high initial costs and requires strict dimensional adherence (especially for low-frequency testing). Maintenance is also a specialized expense.
Time-Consuming: Obtaining complete spatial data requires multiple scans and rotations of the DUT, resulting in longer test times.
Far-Field Condition Limits: Measurements must satisfy the Far-Field Condition , which imposes stringent size requirements, particularly for high-frequency or large-aperture antennas.
The Reverberation Chamber: The Accelerator for Efficiency and System Performance
The Reverberation Chamber offers a fundamentally different approach, focusing on the statistically averaged system performance in complex environments.
Working Principle and Structure
The core purpose of the Reverberation Chamber is to simulate a complex scattering environment. It is a highly conductive metal cavity that uses an internal mechanical stirrer or frequency sweeping to create an electromagnetic field that is statistically uniform and randomly polarized. This perfectly replicates the signal scattering that occurs in urban or indoor settings.
lStructural Features: Consists of a metallic cavity and at least one large mechanical stirrer.
Advantages: When to Choose It?
When your goal is rapidly assessing and optimizing the system-level average performance, the Reverberation Chamber is your ideal choice:
High Efficiency and Speed: Extremely fast testing, as it bypasses lengthy angular scanning. It is especially suitable for omni-directional metrics requiring a large statistical sample.
System-Level Performance Assessment: Perfect for measuring average metrics like Total Radiated Power ($TRP$) and Total Isotropic Sensitivity ($TIS$). These directly reflect the device’s average communication ability in a real, fading environment.
Cost and Flexibility: Compared to an anechoic chamber, the Reverberation Chamber typically has lower construction and maintenance costs and offers more flexibility in DUT placement.
Limitations and Challenges
Lack of Spatial Information: The statistical uniformity of the Reverberation Chamber comes at the cost of directional information. It cannot measure precise antenna patterns or beamforming details.
Low-Frequency Limits: The chamber must be sufficiently large to achieve adequate field uniformity at the lowest operating frequency.
Field Uniformity Challenges: The presence of the DUT can affect field uniformity, requiring advanced techniques (such as multiple stirrers or frequency averaging) to ensure result accuracy.
The Decision Matrix: Selecting the Right Environment
The correct choice hinges on balancing your product type with your core testing objective:
Product / Test Goal | Anechoic Chamber
| Reverberation Chamber | Google's Recommendation |
Mobile/IoT Devices (Omni-directional performance) | Used for precise pattern, isolation, and MIMO channel capacity tests. | Optimal choice for fast, statistically accurate TRP/TIS average performance verification. | Reverberation Chamber for rapid average performance; Anechoic Chamber for critical design validation. |
Base Stations/Directional Antennas | Mandatory use for precise measurement of Beamwidth, Gain, and Beamforming precision. | Not suitable, as it eliminates directional information.
| Anechoic Chamber (Large format). |
EMI/EMC Testing | Semi-Anechoic Chamber is the standard for emissions testing. | Reverberation Chamber can be used for radiated immunity/susceptibility testing efficiently. | Depends on specific regulatory standards. |
Google's Testing Philosophy: Combination and Optimization
At Google, we recognize the limitations of a single environment. We employ a combined testing strategy to ensure our products meet the highest standards for performance and reliability:
Rapid Iteration (Reverberation Chamber): In the early stages of product development, we utilize the Reverberation Chamber for rapid iteration and TRP/TIS optimization. This efficiently filters and selects the best hardware designs.
Ultimate Validation (Anechoic Chamber): Before product finalization, we transition to the Anechoic Chamber for high-precision pattern, isolation, and complex MIMO performance validation, ensuring design details are perfectly executed.
We invest in world-class anechoic and reverberation facilities, combined with automated testing and AI data analysis, to ensure antenna performance across our entire portfolio—from Pixel phones to data center equipment—meets the industry's highest standards. Only through correct and comprehensive testing can we guarantee your product delivers the best possible wireless experience to the end-user.
Conclusion and Call to Action
Choosing the right test environment is essential for balancing your testing goals (precision vs. speed) with your product characteristics (directional vs.omni-directional).
Are you looking for customized testing solutions to ensure superior performance for your next-generation high-frequency product in a complex wireless world?
