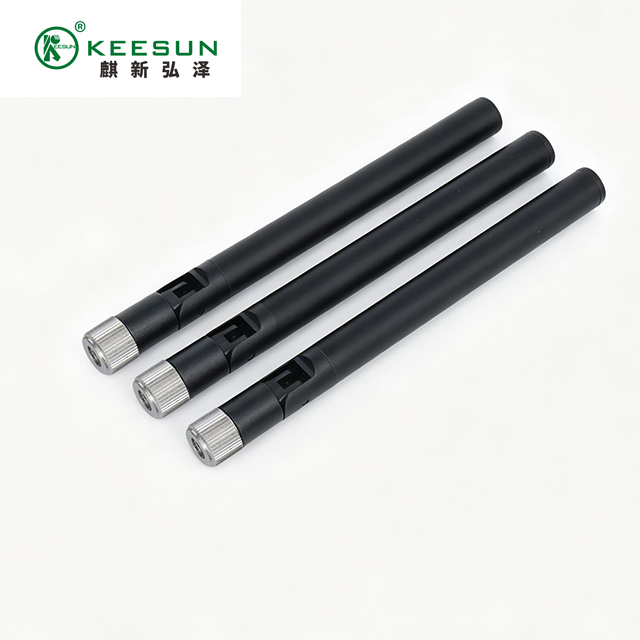

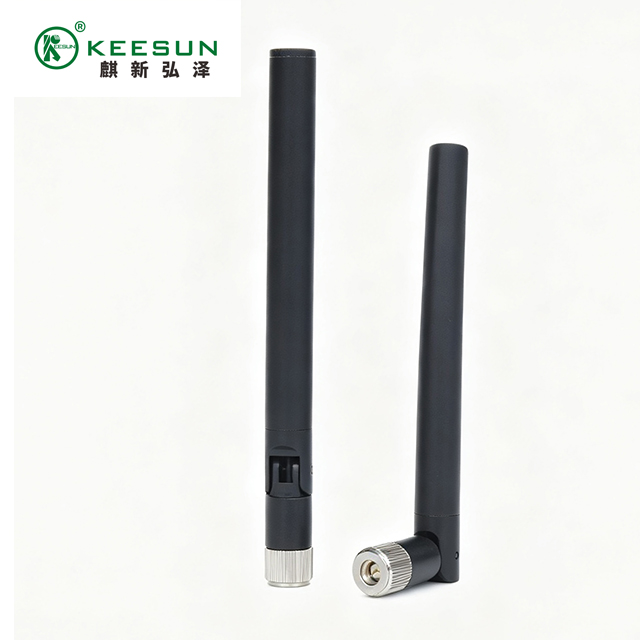

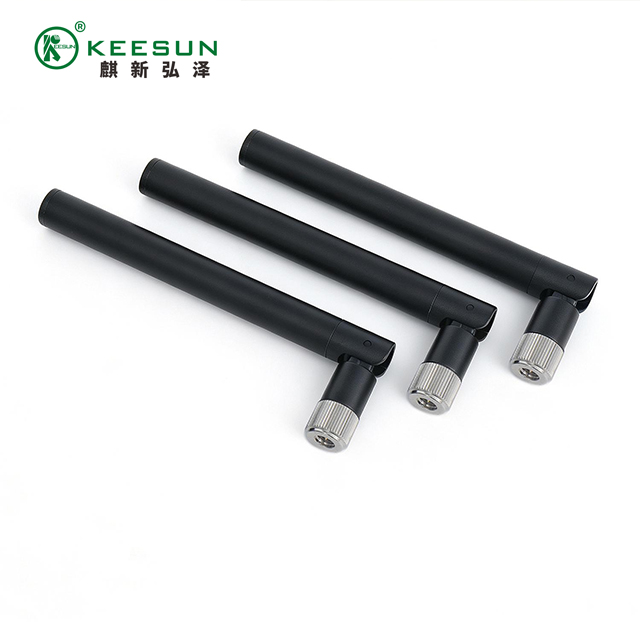

Designed for mission-critical unmanned aerial vehicles (UAVs), tactical drones, and long-range wireless data transmission, our 1300–1500MHz 2dBi Fiberglass Omni-Directional Antenna delivers ultra-reliable 360-degree signal coverage. Operating within the 1.3GHz to 1.5GHz band—commonly used for private networks, video telemetry, and government drone channels—this lightweight antenna ensures seamless connectivity in challenging flight environments.
Built with a high-strength, weatherproof fiberglass radome, it protects the internal radiation elements against severe wind load, UV radiation, and moisture, making it an essential upgrade for professional drone systems.
Key Features & Product Highlights
Wide Frequency Range (1300–1500 MHz): Optimized for continuous operation across the 1.3GHz – 1.5GHz telemetry and video transmission spectrum.
True 360° Omnidirectional Coverage: Features a stable 2dBi gain with low VSWR, preventing signal dead zones regardless of the drone's tilt or orientation.
Rugged Fiberglass Radome: High-density fiberglass construction provides exceptional rigidity and impact resistance while maintaining a lightweight profile for UAV payloads.
IP67 Waterproof & UV-Resistant: Sealed against rain, dust, and corrosive environments, ensuring multi-weather reliability for outdoor deployments.
Low Wind Resistance: Slim cylindrical housing minimizes drag, preserving battery life and flight stability.
Factory Direct & Customization Ready: Available directly from our ISO-certified manufacturing facility in China with customizable connectors (SMA, N-Type, TNC) and pigtail lengths.
Technical Specifications

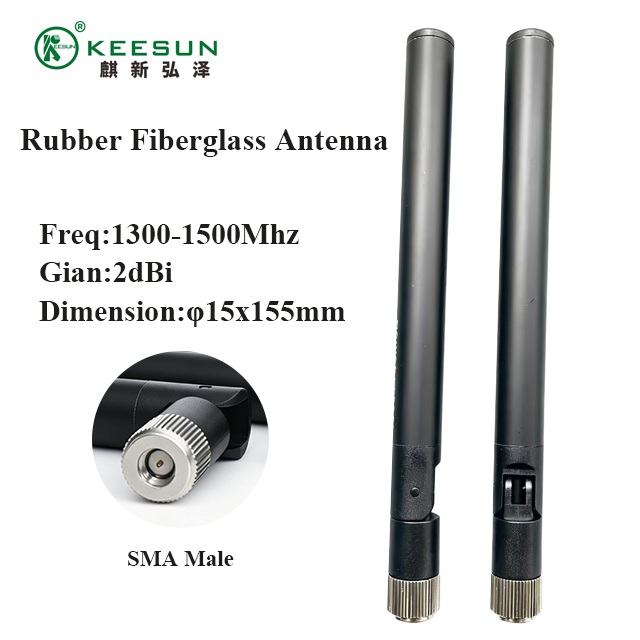

Frequency Range: 1300 – 1500 MHz
Gain: 2 dBi
VSWR: ≤ 1.5
Polarization: Vertical
Radiation Pattern: Omnidirectional (360°)
Impedance: 50 Ω
Max Power Input: 50 W
Radome Material: High-Grade Fiberglass

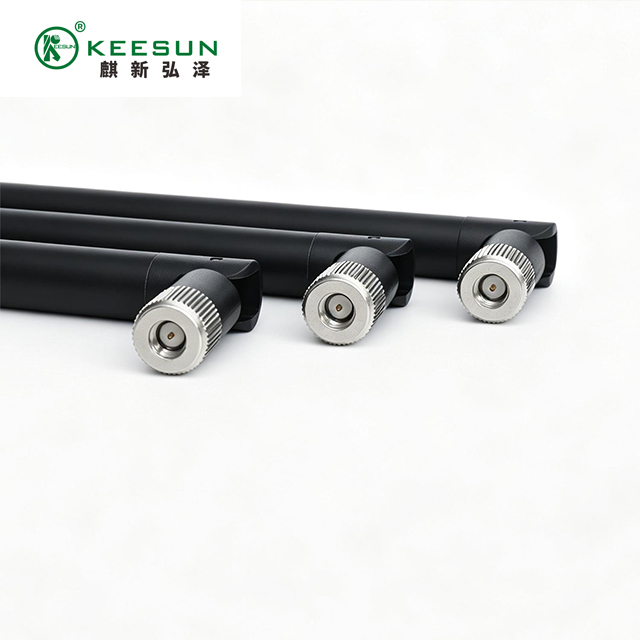

Connector Type: SMA Male / N-Female / Custom
Operating Temperature: -40°C to +85°C
Ingress Protection: IP67 Waterproof
Target Applications
Commercial & Industrial UAV Data Links: Reliable telemetry and real-time control link communication.
FPV & Long-Range Drone Video Transmitters (VTX): Delivers clean video feeds with zero directional blind spots.
Ground Control Stations (GCS): Serves as an omnidirectional base antenna for ground-to-air telemetry receivers.
Private Network & Tactical UAVs: Ideal for security patrols, agricultural mapping, and emergency monitoring.
Why Source Antenna Solutions from Our China Factory?
Strict Quality Assurance: 100% tested with vector network analyzers (VNA) prior to shipping to ensure low VSWR and exact resonance.
OEM/ODM Customization: Flexible frequency tuning, custom cable lengths, housing colors, and logo printing.
Competitive Wholesale Pricing: Direct factory supply eliminates middlemen margins, maximizing your profit margins.
Fast Global Shipping: Rapid prototyping and scalable bulk production capacity to meet tight project deadlines.
Request a Custom Quote or Sample Today
Upgrade your UAV communication system with high-durability fiberglass antennas. Contact our engineering team today for technical datasheets, bulk wholesale pricing, or sample requests!
