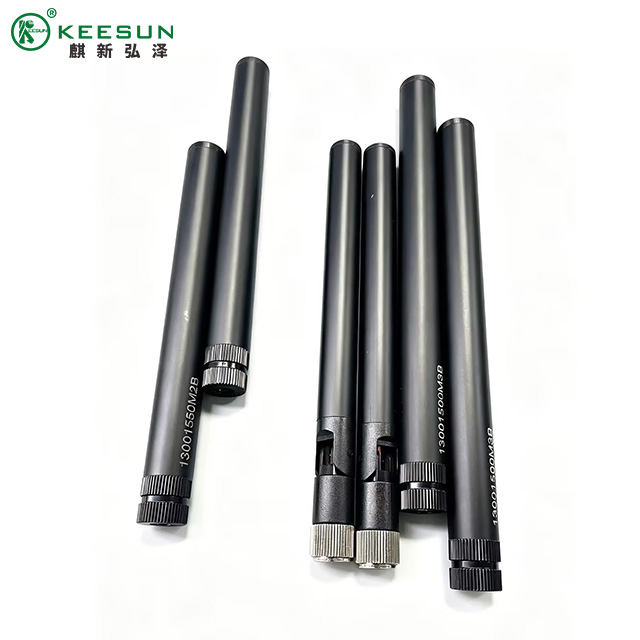

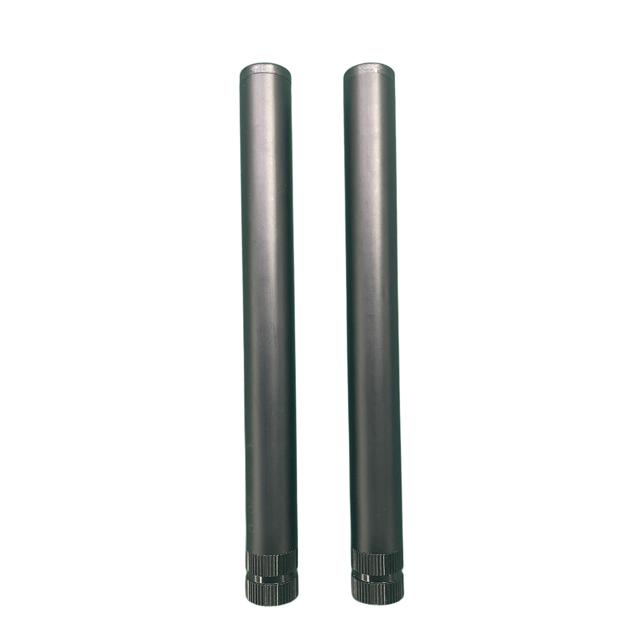

This premium 1300-1500MHz external omnidirectional antenna is engineered for critical outdoor wireless communication. Delivering a stable 3dBi gain within a compact Φ15×170mm form factor, this rugged antenna is the ideal choice for drone (UAV) ground control stations, unmanned ground vehicles (UGV), tactical data links, and specialized IoT networks requiring robust, long-range RF performance.
Built to withstand the harshest environments, its fully waterproof and weatherproof design ensures uninterrupted signal transmission in field operations, defense applications, and industrial monitoring.
Key Features & Product Highlights
Optimized 1.3GHz - 1.5GHz Frequency Band
Tailored specifically for the 1300-1500MHz spectrum, this antenna minimizes signal loss and maximizes throughput for tactical data links, video transmitters, and private RF networks.
️ IP67 Waterproof & Ruggedized Build
Constructed with a heavy-duty, UV-resistant radome and a sealed base, this antenna boasts superior waterproof and dustproof capabilities. It operates flawlessly under extreme outdoor conditions, including heavy rain, snow, and intense sunlight.
Compact & Low-Profile Form Factor
Measuring just 15mm in diameter and 170mm in length, its sleek, lightweight cylindrical design reduces wind resistance and physical footprint, making it perfect for mobile mast setups or vehicle-mounted terminals.
360° Omnidirectional Coverage
The 3dBi gain provides an optimized omnidirectional radiation pattern, ensuring consistent, dependable horizontal coverage without the need for precise directional alignment.

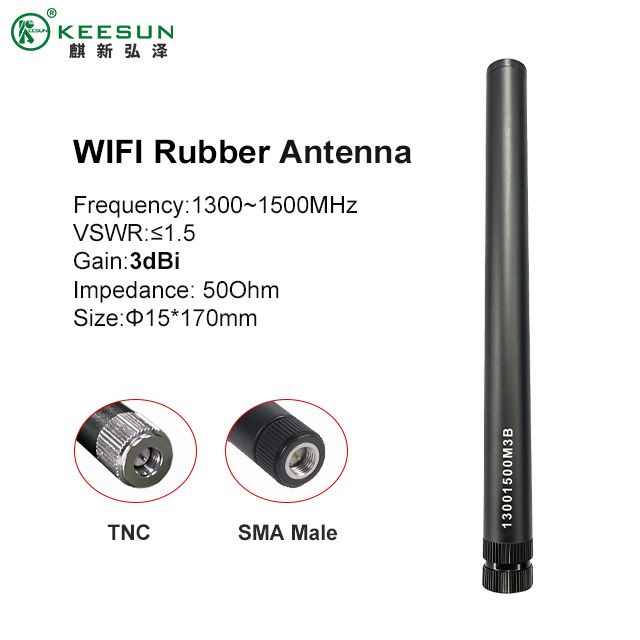

Technical Specifications
| Parameter | Specifications |
| Frequency Range | 1300 - 1500 MHz |
| Gain | 3 dBi |
| Radiation Pattern | Omnidirectional (360°) |

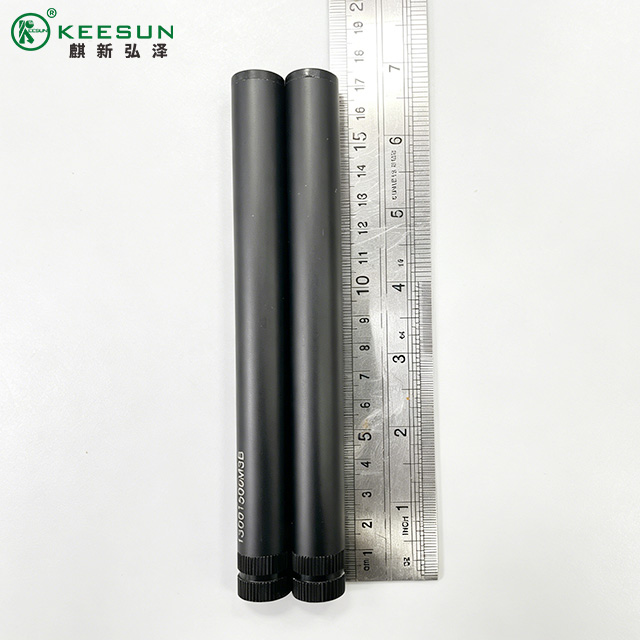

| Dimensions | Φ15mm × 170mm |
| Impedance | 50 Ω |
| VSWR | ≤ 1.5 (Typical) |
| Waterproof Rating | IP67 Compliance |
| Operating Temperature | -40°C to +85°C |
| Connector Type | Customizable (N-Male / SMA-Male / TNC available) |
Typical Application Scenarios

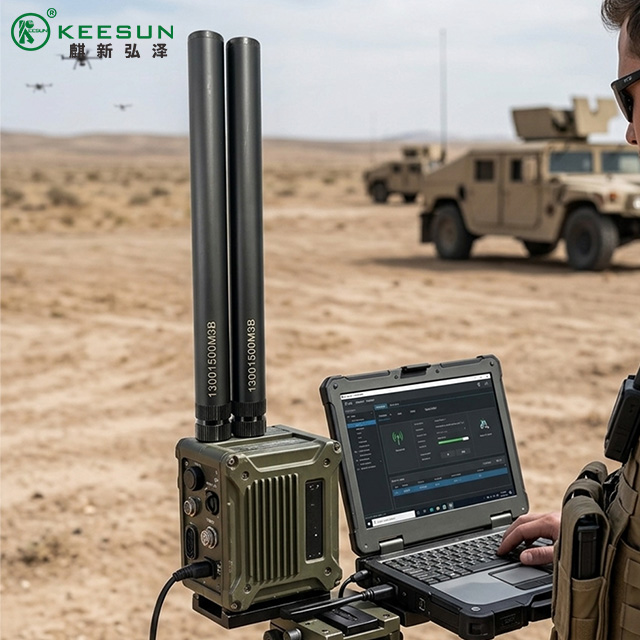

UAV & Drone Ground Stations: Enhances the command and control (C2) link and long-range video telemetry at 1.4GHz bands.
Tactical Mesh Networks: Ideal for man-pack radios, military-grade communication boxes, and mobile command centers.
UGV & Robotics: Provides reliable, low-latency telemetry for unmanned ground vehicles operating in rough terrains.
Outdoor Industrial IoT: Perfect for remote monitoring, oil & gas telemetry, and smart grid infrastructure.
Why Choose Our 1300-1500MHz External Antenna?
When mission-critical connectivity is on the line, standard consumer antennas fail. Our Φ15*170mm tactical antenna undergoes rigorous RF testing and environmental screening to guarantee stable VSWR and excellent structural integrity. Whether you are deploying a defense grid or upgrading a commercial drone system, this antenna delivers the durability and range your project demands.
Contact us today for bulk pricing, custom connector options, or RF testing reports.
