Yagi, Horn, and Parabolic Antennas

In wireless communication systems, an antenna does more than transmit or receive radio frequency signals. Its radiation pattern determines how energy is distributed in space, influencing signal coverage, link performance, and the suitability of the antenna for a particular application.

Directional antennas are designed to concentrate radiation toward a preferred direction. Compared with antennas intended to provide broad coverage, they can offer higher gain in a specific direction and help support point-to-point communication links.

In this article, KEESUN introduces three common directional antenna types: Yagi, horn, and parabolic reflector antennas.

1. Yagi Antennas: Directional Reception and Transmission

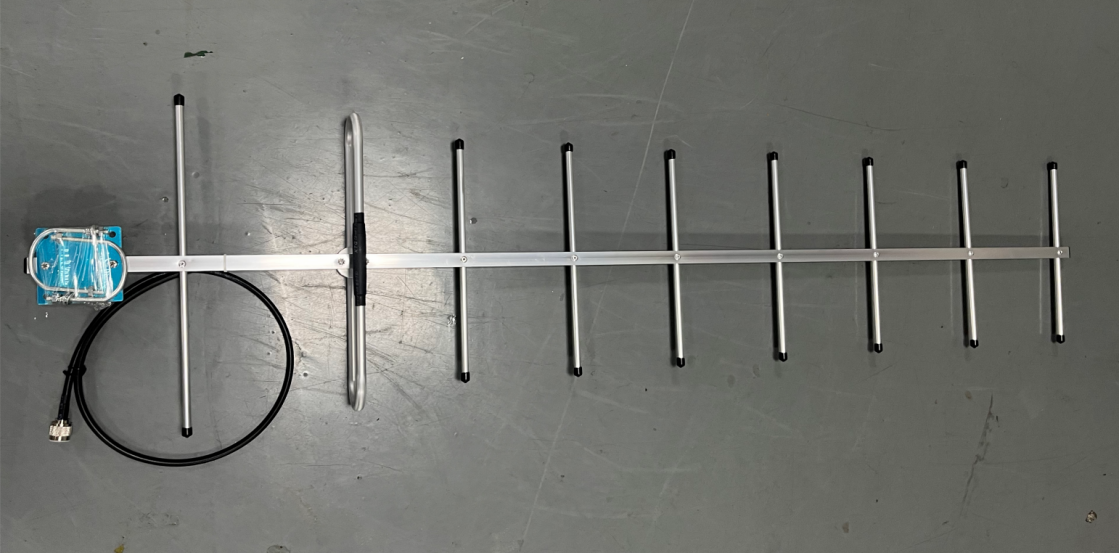

A Yagi-Uda antenna typically consists of a driven element, a reflector, and one or more directors arranged in a line.

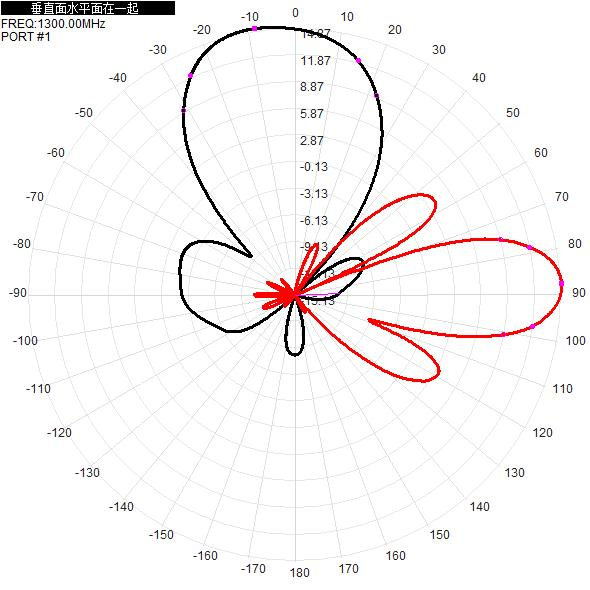

The interaction between these elements creates a directional radiation pattern with a main lobe pointing toward the intended direction.

Key Characteristics

Directional radiation pattern

Gain influenced by element count, dimensions, and spacing

Relatively straightforward directional mounting

Performance dependent on frequency and installation conditions

Yagi antennas are commonly used in television reception, amateur radio, and certain point-to-point radio applications.

For effective operation, the antenna should be oriented appropriately toward the intended signal source or communication endpoint.

2. Horn Antennas: Directional Performance at Microwave Frequencies

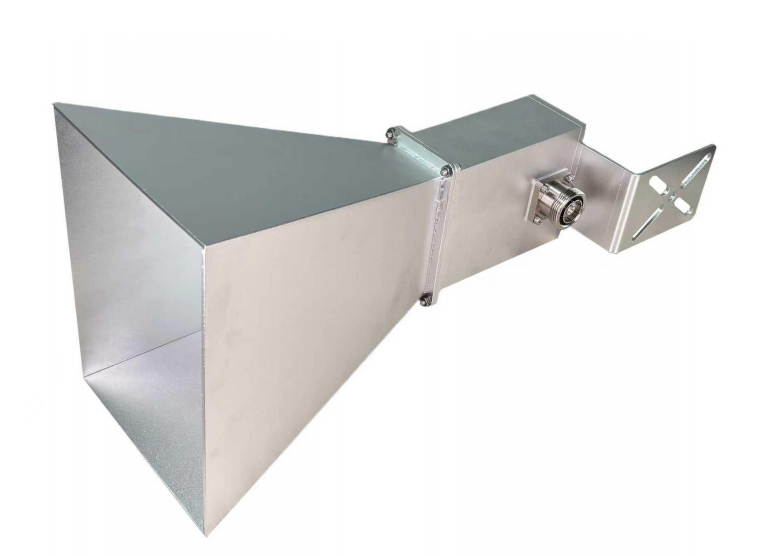

Horn antennas use a flared waveguide structure to guide electromagnetic energy into free space.

Their geometry helps control the radiation pattern and can provide good directivity, making them useful in microwave communication, radar, and RF measurement applications.

Key Characteristics

Directional radiation

Performance determined by aperture geometry and operating frequency

Useful in microwave systems and measurement environments

Suitable for applications requiring controlled radiation characteristics

The aperture size and horn geometry influence the beamwidth and directivity. The antenna should be selected according to the frequency range and performance requirements of the system.

3. Parabolic Antennas: High Gain for Focused Communication Links

Parabolic reflector antennas use a curved reflector and a feed antenna to produce a concentrated radiation beam.

Their relatively large aperture, compared with the operating wavelength, can provide high gain and a narrow beamwidth.

Key Characteristics

High directivity

Narrow radiation beam

Suitable for long-distance links when the system link budget permits

Requires accurate alignment and suitable mounting

Parabolic antennas are commonly used in satellite communication, radar, and radio astronomy.

The reflector dimensions, feed design, surface accuracy, and alignment all influence the resulting antenna performance.

4. How to Compare Directional Antennas

The best antenna depends on the application rather than on gain alone.

Consider the following factors:

Gain and beamwidth: Higher directivity generally produces a narrower beam, which may require more accurate alignment.

Frequency range: Confirm that the antenna is designed for the operating band.

Installation environment: Nearby structures and mounting hardware can affect performance.

Mechanical requirements: Size, weight, wind loading, and mounting options may influence the final selection.

RF connection requirements: The antenna interface, connector type, cable assembly, and routing should be compatible with the connected equipment.

5. Why RF Connectors and Coaxial Cables Matter

Directional antennas are often connected to transmitters, receivers, radios, or other RF equipment through coaxial cables and RF connectors.

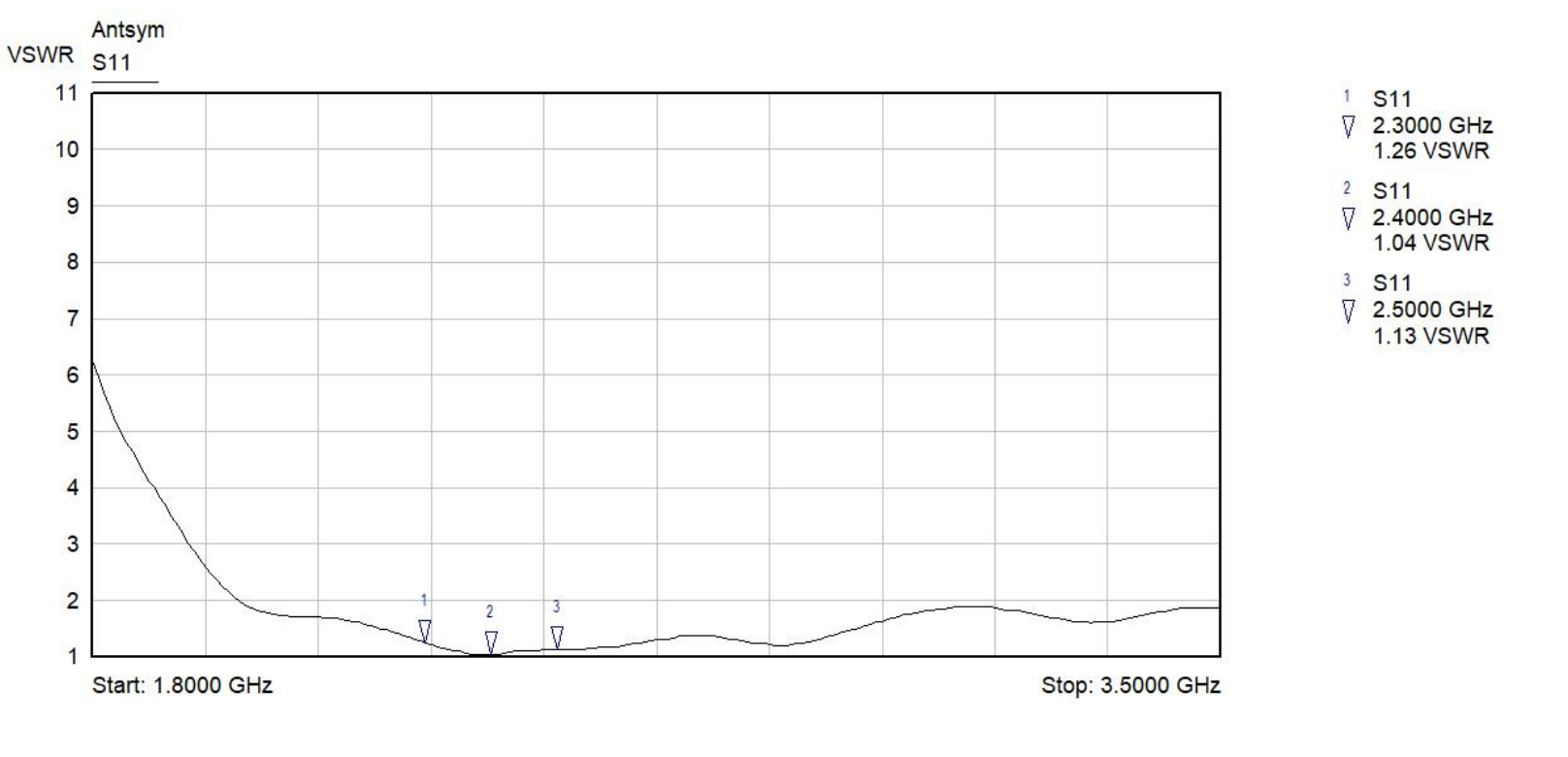

The antenna's specifications alone do not determine the performance of the complete connection. Cable attenuation, connector quality, impedance compatibility, and the operating frequency all need to be considered.

For example, a long cable run may introduce more signal loss than a short run using an otherwise comparable cable. Connector selection and proper installation also matter when maintaining a consistent RF connection.

When designing a directional communication link, evaluate the antenna, cable, and connectors as a complete RF path.

KEESUN RF Connectivity Solutions

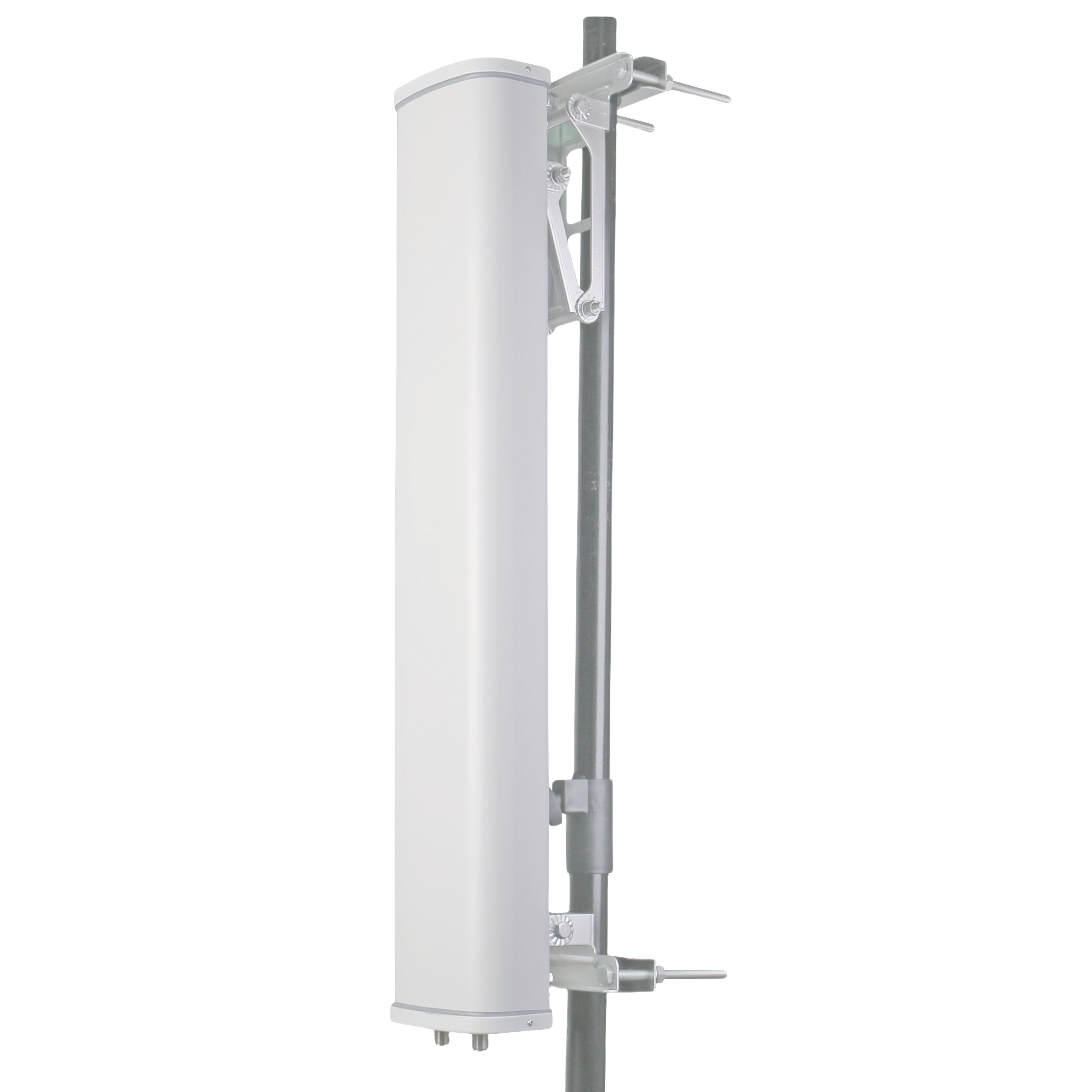

KEESUN focuses on antennas, RF connectors, and coaxial cables for RF connectivity applications.

When evaluating components for a directional antenna system, engineers should consider the operating frequency, required gain, cable length, connector interface, installation environment, and mechanical constraints.

Choosing compatible components can help simplify system integration and support the intended RF performance.

Conclusion

Yagi, horn, and parabolic antennas provide different approaches to directional RF communication. Each offers advantages depending on frequency, gain requirements, physical dimensions, and installation conditions.

A complete system evaluation should also include the RF connectors and coaxial cables linking the antenna to the communication equipment.
