Have you ever had this experience? You've signed up for a gigabit broadband service, yet the signal remains erratic. Streaming HD videos stutters, gaming suffers from lag, and in certain corners of your home, the Wi-Fi signal seems to vanish as if by magic. Your first instinct might be to blame the provider or suspect your router is faulty, but the truth is both simpler and more complex than you might imagine—the issue lies in those seemingly ordinary antennae protruding from your router. As an antenna engineer, I'll take you deep into the heart of wireless communication to unveil a crucial secret: antenna gain. You'll discover that choosing an antenna isn't about selecting the highest gain available, but rather matching it to your specific needs.
Unravelling Antenna Gain: The “Focusing” and “Diffusion” of Energy
In the specifications of routers or antenna products, you will invariably encounter a familiar unit: dBi. This value represents the antenna gain. But what exactly does it signify?

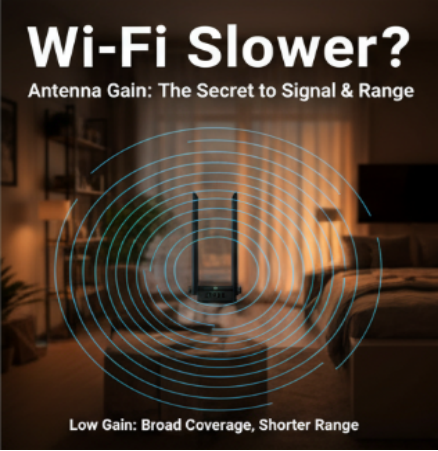

You might conceive of antenna gain as akin to an optical lens. A low-gain omnidirectional antenna resembles an exposed light bulb without a shade, scattering light (signal) uniformly in all directions, yet with insufficient intensity in any particular direction. Such antennas suit small flats or single-storey homes, offering broad coverage with no significant signal dead zones.
A high-gain antenna, however, resembles a spotlight torch. It concentrates all light (signal) into a single direction, forming a powerful yet narrow beam. Though its range is limited, the light intensity (signal strength) within this direction becomes exceptionally high. Such antennas are suitable for point-to-point long-distance communication or penetrating thick walls.
Therefore, antenna gain does not amplify the signal but redistributes its energy. Its function is to make finite signal energy appear more potent in a specific direction. This is a zero-sum game—increasing gain in one direction inevitably comes at the expense of gain in others.
How to Choose the Right Router Antenna: Say Goodbye to Choice Paralysis
Having grasped the principle of gain, you will realise that selecting an antenna requires a tailored approach rather than blindly pursuing high gain.
If you live in a small flat or a single-storey house:
Opt for an omnidirectional router antenna with low gain (2-5 dBi). This ensures signal coverage is evenly distributed throughout every corner of your home, eliminating significant dead zones. Excessively high gain, conversely, causes the signal to concentrate too heavily on the horizontal plane, resulting in weaker reception on upper and lower floors.
If you reside in a multi-storey villa:
In such circumstances, a single high-gain router may prove ineffective, as signals struggle to penetrate through multiple storeys. The optimal solution involves employing a multi-antenna router or a mesh network. Multi-antenna routers typically utilise intelligent algorithms to optimise signal distribution, ensuring vertical coverage. Mesh networks, meanwhile, comprise multiple routers working in concert to form a seamless, comprehensive coverage network.

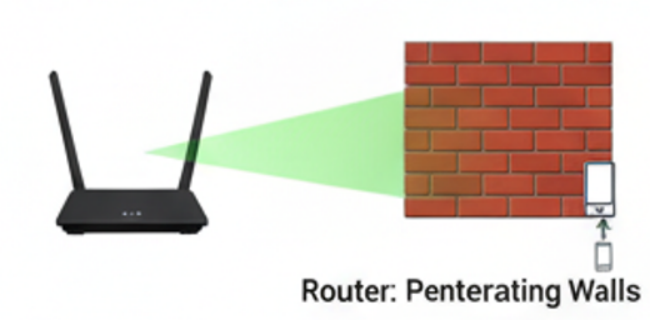

If you require signal penetration through walls:
When thick walls obstruct the path between your router and devices, consider employing high-gain antennas. These antennas concentrate the signal in a specific direction, thereby enhancing penetration capabilities. However, it is important to note that you must adjust the antenna to the correct orientation to ensure the signal traverses the walls and reaches your devices.
The Hidden Skills of Antennas: Beyond Gain, These Crucial Parameters Matter
The performance of an antenna is not solely determined by its gain; certain invisible parameters are equally significant. Together, these parameters constitute the antenna's “capability model”.
Voltage Standing Wave Ratio (VSWR): A parameter measuring the energy matching between an antenna and its equipment. One might visualise it as a ‘leaky pipe’. Poor matching causes signal backflow during transmission to the antenna, akin to water encountering an obstruction. The closer the VSWR approaches 1, the lower the internal energy dissipation and the more efficient the signal transmission. High-quality router antennas typically maintain a VSWR below 1.5.
Efficiency: Measures an antenna's ability to convert input power into effective radiated power. If an antenna is inefficient, a significant portion of the router's emitted energy is absorbed by the antenna itself and converted into heat, resulting in wasted energy. A high-efficiency antenna delivers stronger signals and extended communication ranges at equivalent power levels. In antenna design, efficiency and miniaturisation present a challenging trade-off; achieving high efficiency within compact dimensions constitutes truly masterful engineering.
Radiation Pattern: This represents the antenna's signal distribution across three-dimensional space, akin to its ‘fingerprint’. A well-designed antenna's radiation pattern should perfectly match its application scenario. For instance, a router antenna requires a uniform, doughnut-shaped radiation pattern to ensure comprehensive signal coverage in all directions.
Conclusion
Antenna gain is not a panacea; it is merely one aspect of antenna performance. An excellent antenna represents a perfect balance of multiple parameters, including gain, standing wave ratio, efficiency, and radiation pattern. It works tirelessly, both visibly and invisibly, to construct the ubiquitous wireless world around us.
