Are you looking to achieve a stronger, more reliable wireless connection? In a world that depends on constant connectivity, understanding the right tools can give you a significant advantage, and a panel antenna is a cornerstone of modern communication systems. But what exactly is this device, and why is it so crucial for everything from your home Wi-Fi to advanced cellular networks?
This guide will help you understand what a panel antenna is all about. We'll explore how it works, its key features, and its many applications. At Antenna Experts, we believe in empowering users with knowledge, offering world-class military and commercial antenna solutions designed for 100% connectivity and reliability. This comprehensive guide will cover everything you need to know, from basic principles to installation, providing a clear blueprint for unlocking new levels of wireless performance.
Decoding the Panel Antenna: What Is It, Exactly?
A panel antenna is a type of directional antenna, meaning it is designed to focus on transmitting and receiving signals in a specific direction. Its fundamental design is simple yet highly effective, typically consisting of a dipole element placed in front of a flat-panel reflector. This structure is pivotal for enhancing signal strength and direction in a vast number of applications, from cellular networks to wireless broadband.
These antennas are typically flat and rectangular or square in shape. This design is not just for aesthetics; the larger surface area helps to increase the antenna's gain, which is its ability to focus a signal in a particular direction. The higher the gain, the more focused and powerful the signal becomes. This directional capability makes the panel antenna an intermediate solution in modern systems that provides a stable, long-distance connection.
How Do Panel Antennas Actually Work?
The operational principle of a panel antenna is centered on its ability to direct radio waves precisely. A panel antenna is made up of several radiating elements arranged in a specific array or grid pattern on a flat panel. These elements, often rectangular or square, are connected to a feed network that supplies power to the antenna. The specific arrangement and configuration of these elements determine the antenna's overall performance and directionality.
This design enables the antenna to focus its radiation power, creating a narrow beam of radio waves. Unlike an omnidirectional antenna that spreads its signal in all directions, a panel antenna concentrates its power in a specific area. This directional feature allows users to send and receive signals more efficiently. By capturing signals from a desired direction and sending them back along the same path, it effectively reduces interference from other sources and other electrical devices. This focused approach is what makes a panel antenna ideal for long-distance communication and applications requiring a stable, high-quality connection.
Key Features and Characteristics of a Panel Antenna
When selecting an antenna, understanding its features is crucial. At Antenna Experts, we design our products with performance and reliability at the forefront. A panel antenna stands out for several key characteristics that make it a versatile and powerful choice for many systems.
High Gain for Superior Performance
Gain refers to an antenna's ability to amplify a signal in a specific direction.
A panel antenna typically has high gain due to its narrow, focused beamwidth.
Gain levels can range from as low as 6 to 10 dB to as high as 23 dB.
This high-gain capability makes the antenna more resistant to interference, which is ideal for point-to-point communication systems, even over long distances.
Directional Coverage and Narrow Beamwidth
A panel antenna is a highly directional antenna, designed to radiate and receive signals in a specific direction.
This is achieved through a narrow beamwidth, which helps minimize interference from other signals and improve the overall performance and range of the wireless system.
This focus allows a panel antenna to transmit and receive signals over longer distances with minimal interference and consistent signal strength.
The trade-off is that its coverage area is limited, and multiple antennas may be needed to cover a 360-degree area.
Versatile Polarization Options
A panel antenna is available in different polarizations to meet various performance requirements.
These options include vertical polarization, horizontal polarization, or a combination of the two (dual polarization).
Vertical polarization is the most common type used in traditional communication systems.
Horizontal polarization is often used to avoid interference with vertically polarized systems.
Dual polarization supports both and is commonly used for advanced MIMO (Multiple Input Multiple Output) systems.
Compact and Low-Profile Design
One of the most user-friendly features of a panel antenna is its simple, flat, and compact design.
Unlike bulkier Yagi or parabolic dish antennas, a panel antenna is less obtrusive and occupies less space.
This flat design reduces wind load, making it suitable for mounting on roofs or poles.
Some are even printed directly onto printed circuit boards (PCBs), making it possible to integrate them into small electronic devices like mobile phones and GPS devices.
Common Applications: What Is a Panel Antenna Used For?
The versatility and robust design of a panel antenna make it essential for a wide array of applications. From strengthening cellular signals to enabling high-speed Wi-Fi, these antennas play a major role in modern wireless infrastructure. Antenna Experts provides specialized panel antenna solutions for numerous industries, ensuring reliable connectivity where it matters most.
Cellular Communication (4G/5G Networks)
A panel antenna is a common sight at cellular base stations, where it is used to provide coverage to a specific area or sector. They are often mounted on towers or buildings and pointed in the direction where coverage is needed. The high gain and directionality of the panel antenna allow the base station to deliver a strong and reliable signal to users within that area. They are also used to transmit signals between base stations with high quality and precision.
Wi-Fi Networks and Wireless Broadband
In broadband wireless networking, a panel antenna is used to provide connectivity to a specific location. They are frequently used in point-to-point or point-to-multipoint connections to transmit and receive data over long distances. For Wi-Fi networks in homes, offices, or larger venues like stadiums, a panel antenna can be used with wireless access points to focus the signal, providing better bandwidth and a more reliable connection for all users.
RFID and IoT Systems
A flat panel antenna is also used in radio frequency identification (RFID) systems. They can be integrated into access control systems, inventory management, and electronic toll collection. Their compact design and reliable communication capabilities are also ideal for many Internet of Things (IoT) applications, where they enable fast and stable data transmission for smart devices.
Other Key Uses
Broadcasting: The high gain and directivity of a panel antenna make it suitable for broadcasting networks, as it can withstand interference and transmit signals across a wide frequency band.
Public Safety Networks: For emergency response systems, a panel antenna provides consistent communication over large areas, even in remote or challenging environments.
Satellite Communications: The ability to handle high frequencies and provide high-speed connectivity makes the panel antenna a key component in satellite systems and devices used in aerospace and defense.
A Breakdown of the Different Types of Panel Antennas
The term "panel antenna" covers a family of designs, each tailored for specific goals and applications. Understanding the different types can help you select the perfect solution for your needs. At Antenna Experts, we offer a diverse portfolio of antennas, including various panel antenna models, to meet the unique challenges of any communication system.
Flat Panel / Patch Panel Antennas
These are perhaps the most well-known type, also called patch antennas. They are thin, compact, and lightweight with a flat shape, making them easy to mount on various surfaces. A flat panel antenna typically operates at very high frequencies and is commonly used in Wi-Fi networks and other wireless systems to provide directional coverage and facilitate high-speed, reliable connections.
Sector Panel Antennas
A sector panel antenna is designed to cover a specific sector or angle, such as 60, 90, or 120 degrees. These antennas are long and narrow with high gain, and they usually consist of an array of dipoles in front of a reflector. Their directional radiation pattern makes them a perfect fit for cellular base stations, where they are used to divide a large area into smaller, more manageable sectors for targeted coverage.
Microstrip Panel Antennas
Also known as patch antennas, microstrip antennas are one of the most compact designs available. They are printed directly on a flat substrate made of a dielectric material, commonly a printed circuit board (PCB). Because of their compact size and lightweight nature, this type of panel antenna is easily integrated into electronic devices like smartphones, GPS units, drones, and wireless routers.
Phased Array Panel Antennas
This advanced type of panel antenna consists of multiple individual radiating elements that can be electronically steered to change the direction of the signal beam without physically moving the antenna. This beamforming capability makes them essential for sophisticated applications like radar systems, modern satellite communications, and advanced 5G wireless systems.
Panel Antenna vs. The Competition: A Head-to-Head Comparison
Choosing the right antenna requires comparing the options. A panel antenna is often weighed against other directional and omnidirectional antennas. Here's how it stacks up against two common alternatives.
Panel Antenna vs. Yagi Antenna: Which is Better?
| Feature | Panel Antenna | Yagi Antenna |
| Design | Flat and rectangular or square, with radiating elements inside a single housing. | Composed of multiple linear elements: a driven element, a reflector, and one or more directors. |
| Beamwidth | Broader radiation pattern with a wider beamwidth, allowing it to cover a larger area. | Narrow radiation pattern with a highly focused beamwidth, designed for longer-range communication. |
| Gain | Typically has lower gain compared to a Yagi antenna. | Designed for higher gain, enabling signals to travel over longer distances. |
| Best Use Case | More suitable for indoor use and point-to-multipoint applications like Wi-Fi networks in homes and offices. | Often used for outdoor, long-range point-to-point communication, cellular base stations, and TV reception. |
Panel Antenna vs. Dome Antenna: Directional vs. Omni-Directional
| Feature | Panel Antenna | Dome Antenna |
| Signal Pattern | Directional: directs the signal in a specific direction. | Omni-directional: provides coverage in all directions (360 degrees). |
| Gain & Beamwidth | Higher gain and a narrow beamwidth, concentrating the signal. | Lower gain and a wide beamwidth, distributing the signal over a wide area. |
| Interference | More resistant to interference due to its focused beam. | More subject to interference from unwanted directions. |
| Best Use Case | Ideal for providing targeted coverage and reducing interference. | Best for providing general, even coverage in open spaces where the signal needs to be distributed in all directions. |
How to Install a Panel Antenna: A General Guide
Proper installation is key to getting the best performance from your panel antenna. While you should always consult the specific instructions provided by the manufacturer, here is a general guide to the process.
Pre-Installation Checklist
Always unpack and assemble the antenna according to the manufacturer's instructions first.

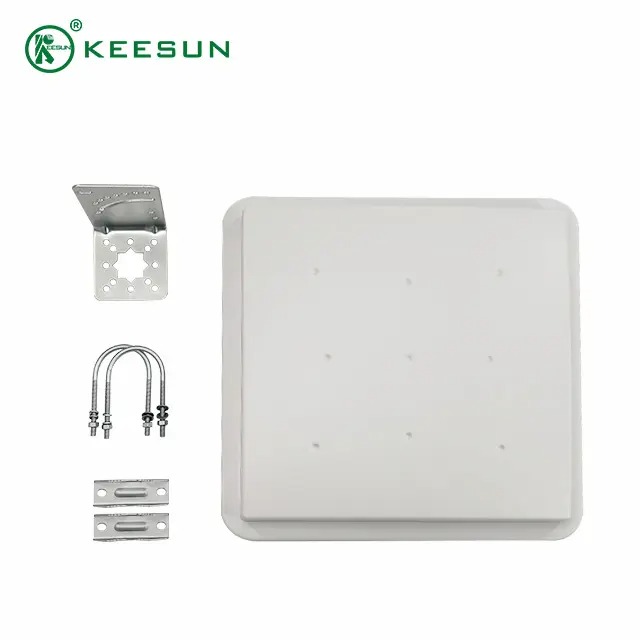

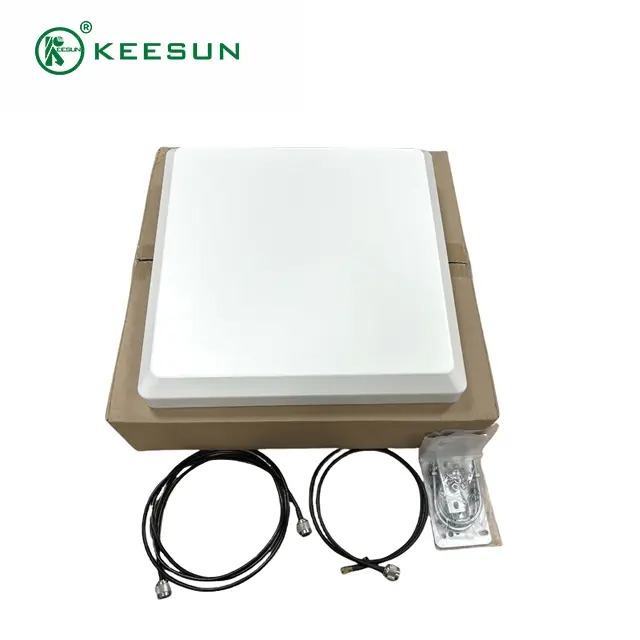

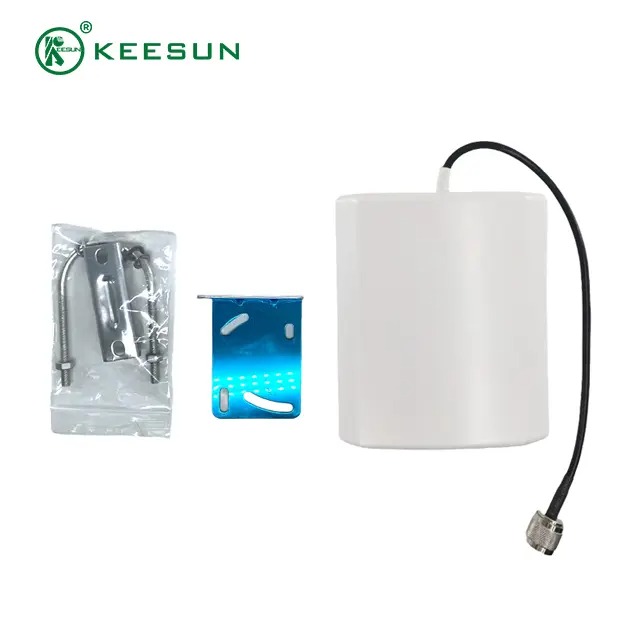

Gather your tools, including the mounting bracket and hardware (usually provided), a coaxial cable of the appropriate length, and cable clips or ties.
Step-by-Step Installation Process
Select the Best Location: Choose a suitable, elevated location for the panel antenna where it has a clear line of sight to the area you want to cover. Ensure the location is stable enough to hold the antenna securely. For an outdoor panel antenna, consider environmental factors like wind and weatherproofing.
Mount the Antenna: Use the provided mounting bracket and hardware to securely attach the panel antenna to your chosen location, such as a pole, wall, or rooftop. Make sure it is firmly fixed and stable.
Connect the Cable: Use a coaxial cable to connect the panel antenna to your device, which could be a router, access point, or signal booster. Insert one end of the cable into the antenna’s connector and the other into the correct port on your device.
Aim and Optimize: Once connected, you may need to adjust the position and orientation of the panel antenna to achieve the best signal strength. This can involve tilting or rotating the antenna to optimize its alignment with the desired area. This alignment is crucial for maximum performance.
Secure and Test: Use cable clips or ties to secure the coaxial cable along its route to prevent it from being damaged or accidentally disconnected. After installation, test the antenna to ensure it is working correctly, checking the signal strength and coverage in the target area.
Frequently Asked Questions (FAQ)
Q1: Is a panel antenna directional?
Yes, a panel antenna is highly directional. It focuses its signal in a specific direction using a narrow beamwidth, making it ideal for point-to-point links and for reducing interference from unwanted sources.
Q2: What is the difference between an indoor and outdoor panel antenna?
An outdoor panel antenna is built to be durable and weather-resistant for mounting on rooftops or poles. An indoor panel antenna is designed for use inside a building, often mounted on a wall or placed on a shelf to boost signals in a targeted area.
Q3: Can I use a panel antenna to improve my home Wi-Fi?
Yes, you can. Connecting a panel antenna to your Wi-Fi router allows you to focus the signal towards a specific area in your home with a weak connection. This is a great way to improve signal strength and quality where you need it most.
Q4: How much gain do I need from a panel antenna?
The required gain depends on your application. For short distances or covering a broader area, lower gain (6-10 dB) works well. For long-distance point-to-point links, you should opt for a high-gain panel antenna (up to 23 dB or more) for a strong, stable connection.
Q5: What does MIMO mean for a panel antenna?
MIMO stands for Multiple-Input Multiple-Output, meaning the panel antenna uses multiple antennas to send and receive data simultaneously. This results in higher data rates, better signal quality, and more reliable coverage for demanding applications.
