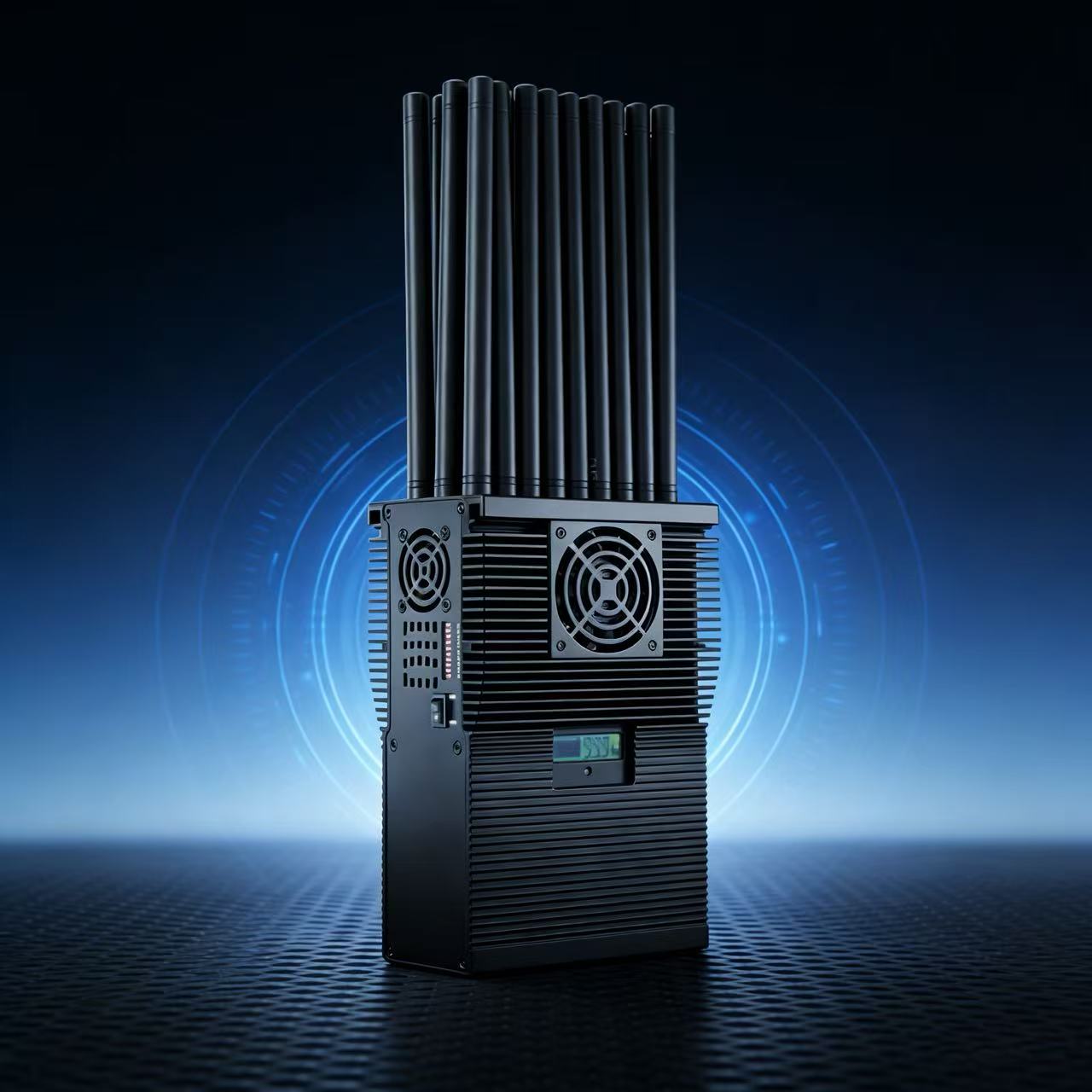

In the era of the Internet of Everything (IoE), Radio Frequency (RF) signals permeate every corner of our living space. However, the free flow of signals also brings security risks. Jamming antennas, as the core of Electromagnetic Spectrum Operations (EMSO) and signal security, have become increasingly vital. This article provides an in-depth analysis of the working mechanisms, classification standards, and future technical trends of this complex technology.
1. Fundamental Theory and Core Terminology
1.1 What is Jamming?
Jamming is essentially a "power competition." A jammer antenna functions by transmitting strong noise at the same frequency as the target signal, artificially reducing the Signal-to-Noise Ratio (SNR) at the receiving end. When the noise power significantly exceeds the useful signal power, the communication link is disrupted.
1.2 Analysis of Key Physical Quantities
Frequency Range: The antenna must cover the target communication bands (e.g., 2.4GHz to 5.8GHz).
Gain: Measured in dBi. High-gain antennas concentrate energy in a specific direction, extending the effective jamming distance.
VSWR (Voltage Standing Wave Ratio): A measure of energy transmission efficiency. High-efficiency antennas prevent the transmitter from damaging itself due to overheating caused by reflected power.
2. Deep Dive: How Jamming Antennas Work
2.1 Signal Generation and Transmission Chain
The process begins with a Frequency Synthesizer generating the base signal, which is then boosted by a Power Amplifier (PA). Finally, the antenna converts these electrical signals into electromagnetic waves in free space.
2.2 Jamming Strategies: Spot, Sweep, and Smart Jamming
Spot Jamming: Concentrates all available power on a single frequency for maximum efficiency against a specific target.
Sweep Jamming: Rapidly cycles through a frequency band, ideal for disrupting frequency-hopping communications.
Smart Jamming: Identifies protocol characteristics and transmits interference only during critical time slots, offering high stealth and low power consumption.
2.3 The Importance of Polarization
Polarization matching is critical for effectiveness. While Vertical Polarization is typically effective against standard mobile signals, Circular Polarization (CP), often provided by helical antennas, is the gold standard for disrupting GPS/GNSS satellite signals due to their inherent signal orientation.
3. Classification and Performance Comparison of Mainstream Antennas
3.1 Omni-directional Antennas
Structure: Usually made of fiberglass for durability.
Advantages: Provides 360°horizontal coverage; ideal for vehicle-mounted applications.
Limitations: Energy is dispersed in all directions, resulting in a relatively short jamming range.
3.2 Directional Panel Antennas
Principle: Uses a reflector plate to confine signal radiation within a specific angle (e.g., 60°).
Applications: Perimeter security and directional defense of critical infrastructure.
3.3 Log-periodic Antennas
Features: Supports ultra-wideband coverage (e.g., 400MHz to 6000MHz).
Value: Replaces multiple antennas with a single unit, simplifying system architecture.
3.4 Helical Antennas
Applications: A star product in Counter-UAS (C-UAS) systems. Its high gain and circular polarization characteristics effectively sever the navigation and control links between drones and satellites.
4. Advanced Technical Challenges and Engineering
4.1 Heat Dissipation and High-Power Handling
Jammers often require hundreds of watts of power. The heat resistance of antenna materials and the power-handling capacity of connectors (such as N-type or SMA) are critical design factors.
4.2 Antenna Arrays and Beamforming
By combining multiple antenna elements into an array, engineers can use phase control to achieve Beamforming. This allows the jamming energy to be steered electronically for more precise and efficient interference.
5. Industry Application Scenarios
Counter-UAS Systems: Protecting sensitive airspace from unauthorized drone incursions.
VIP Convoy Protection: Preventing the detonation of Remote Controlled Improvised Explosive Devices (RCIEDs).
Secure Meeting Facilities: Providing physical-layer isolation against wireless eavesdropping and data leaks.
Border and Prison Security: Blocking unauthorized communication tools and contraband devices.
6. Compliance, Legal Boundaries, and Ethics
Spectrum Regulation: The radio spectrum is a national resource, strictly managed by agencies such as the ITU and FCC.
Legal Risks: The unauthorized operation of jamming equipment is illegal in most jurisdictions and can lead to severe criminal charges.
Authorized Procurement: Corporations and government agencies must procure equipment through suppliers with the necessary legal certifications.
Conclusion: The Future of Jamming Technology
As 6G and satellite internet (like Starlink) evolve, jamming antennas will move toward millimeter-wave (mmWave) frequencies, miniaturization, and Software-Defined Radio (SDR) integration. The "cat and mouse game" within the electromagnetic spectrum will continue indefinitely.
