Every field technician knows that even the best hardware can underperform if the installation is not handled correctly. Small mistakes during setup or later handling can cause a dramatic increase in noise, poor signal quality, or even complete link failure. This article focuses on practical ways to minimize loss with an rf coaxial cable. By following clear installation checks, handling guidelines, and troubleshooting steps, you can keep systems running at their intended performance levels. At Shenzhen Keesun Technology, we engineer low loss coax cable assemblies designed for reliability, but field practices remain the key to long-term stability.
Pre-install checklist: what to verify before laying cable
Confirm impedance, connector type, max frequency & intended length
The first step in any installation is confirming that the rf coaxial cable matches the system’s requirements. Impedance is critical — most RF systems are either 50Ω or 75Ω. Using the wrong impedance introduces reflections, raising VSWR and lowering efficiency. Connector compatibility is another frequent oversight; SMA, N-type, TNC, or IPEX must be chosen based on both device port and environmental demands. Frequency rating is equally important — low loss coax cable types like LMR-200 or RG316 can maintain stable performance up to several gigahertz, but every option has a limit. Finally, always calculate the intended cable length against acceptable insertion loss. A simple pre-install form that records these values helps avoid costly rework.
Inspect cable for kinks, correct part number, and factory test reports
Even a high-grade cable can fail if it was mishandled before installation. Check the outer jacket for kinks, flattening, or crush marks. Ensure the reel matches the ordered part number — a mix-up between RG174 and RG316, for example, can double your expected loss. Always request factory test reports when available; at Keesun, assemblies are shipped with verification data to confirm attenuation, return loss, and continuity. Recording these details before use builds a traceable record for future troubleshooting.
Routing, bending and mechanical best practices
Minimum bend radius rules by cable diameter; avoid crush points
Every rf coaxial cable has a recommended minimum bend radius, usually about ten times the outer diameter. Bending tighter than this can deform the dielectric, altering impedance and causing higher reflection. When routing inside racks or enclosures, avoid sharp corners and tight cable ties. Cables should flow in smooth curves, secured loosely enough to prevent crushing. Field technicians often underestimate this — yet bend-related failures are one of the most common hidden causes of high loss.
Separation from power lines/EMI sources; use proper clips and strain relief
Electromagnetic interference is another major concern. Never route coaxial runs parallel and close to AC power lines. Instead, keep at least several inches of separation or use physical barriers. In industrial environments, separation from motors, transformers, or switching power supplies is also critical. For mechanical stability, use clips designed for coaxial diameter rather than generic clamps. Strain relief should be applied near connectors so that bending forces do not stress the termination point. A low loss coax cable is only as good as the way it is supported in the field.
Connector quality, termination and weatherproofing
Crimp vs soldered vs pre-assembled connectors — recommended use cases

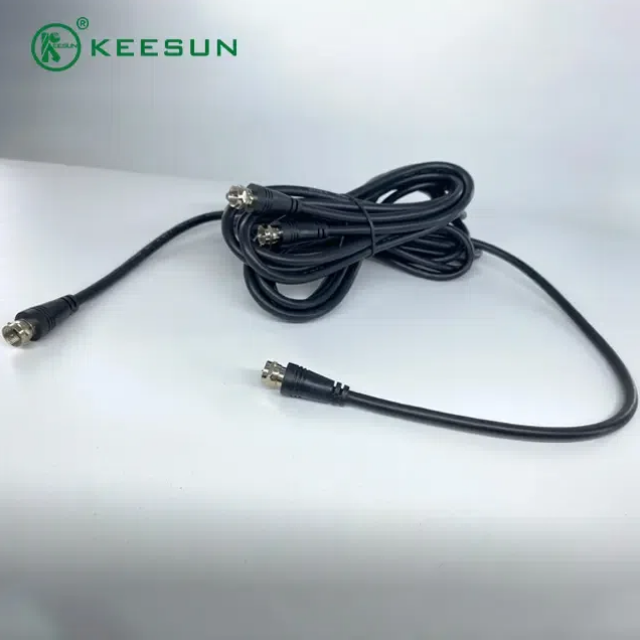

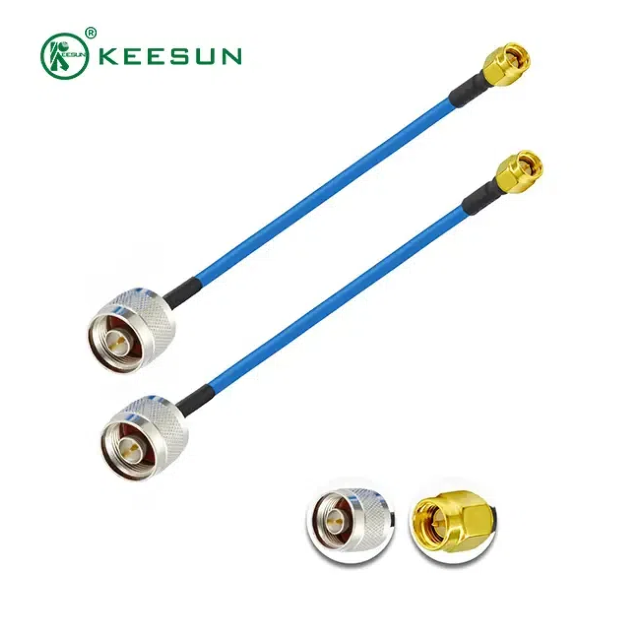

Connectors are often the weakest link in an RF chain. Crimped connectors are quick and consistent when done with the proper tooling, making them suitable for high-volume installations. Soldered connectors, while requiring more skill, provide excellent conductivity and are reliable in lab setups. Pre-assembled connectors, supplied as part of complete assemblies, remove human error from the equation and are ideal when long-term reliability is the priority. Keesun offers pre-tested assemblies with SMA, N-type, TNC, and IPEX options to cover diverse applications.
Steps to seal outdoor connectors and maintain low reflections
Outdoor installations introduce another variable: moisture ingress. Water in the dielectric causes dramatic increases in attenuation. Every outdoor connector should be sealed with weatherproof tape or heat-shrink sleeves. Grease or protective gels can also be applied to prevent corrosion. For high-frequency applications, even a small gap or poorly seated connector can raise reflections, so torque wrenches and proper alignment tools are recommended. Taking a few minutes to secure connectors against weather can extend service life by years.
Measuring and diagnosing performance (SWR, insertion loss)
Simple tools: VNA, return-loss meter, directional coupler — what each shows
Diagnosis starts with measurement. A vector network analyzer (VNA) provides the most complete view of cable performance, showing both insertion loss and VSWR across frequency. For field checks, return-loss meters or directional couplers offer simpler ways to detect mismatches and reflections. While not as detailed, they quickly reveal if the installation has a major fault. For technicians without advanced equipment, many handheld testers can still measure insertion loss at a fixed frequency.
How to perform a quick “bench” verification and what acceptable numbers look like
Before finalizing any installation, perform a short bench verification. Connect the rf coaxial cable between a signal generator and analyzer, measuring the loss at the intended frequency. For most low loss coax cable types, a few dB of loss per 100 feet is expected, depending on frequency and diameter. VSWR should remain below 1.3:1 in most professional applications. Any abnormal spikes or unexpected dips suggest connector issues or hidden bends in the line. Document these numbers for future reference.
Common faults and fixes
High VSWR causes (bad connector, bend, impedance mismatch) and how to isolate them
A high VSWR is a red flag. Begin isolation by checking connectors: are they fully seated, properly torqued, and free from dirt? Next, inspect the routing for any severe bends or crushed sections. If the fault persists, confirm that the cable’s impedance matches the device. Substitution testing — swapping in a short known-good cable — is a quick way to narrow down whether the problem is cable-related or equipment-related.
Signs of shielding failure or moisture ingress and replacement criteria
Shielding failures often show up as intermittent noise or sensitivity to nearby EMI sources. Visual cues include frayed braiding, cuts in the jacket, or discolored dielectric. Moisture ingress can be detected by milky or cloudy dielectric material at the connector ends. Once a cable shows these symptoms, replacement is the only reliable fix. Trying to repair a compromised coaxial run often costs more in downtime than installing a new pre-tested assembly.
Maintenance & lifecycle: when to replace cables
Age, repeated flex cycles, and environmental damage as replacement signals
No rf coaxial cable lasts forever. Over time, UV exposure, temperature cycling, or repeated flexing degrade the jacket and dielectric. In mobile or aerospace applications where cables are moved frequently, flex cycles may define lifespan more than calendar years. Environmental damage like rodent bites, abrasion, or chemical exposure should trigger immediate replacement. A proactive approach prevents failures during critical operations.
Best practice: keep spares and log installation/test data
Keeping spares of common lengths and connector types reduces downtime dramatically. Just as importantly, logging installation details and initial test data gives a baseline for future comparison. At Keesun, we recommend that every site maintains a small inventory of pre-tested assemblies for rapid swap-in. This approach ensures system uptime and reduces the temptation to continue using a questionable cable.
Conclusion
Consistent performance in RF systems depends on careful installation, measurement, and timely replacement of the rf coaxial cable. A simple troubleshooting flow applies in nearly every case: inspect the cable, measure with available tools, isolate the problem, and replace if needed. By combining high-quality low loss coax cable assemblies from Shenzhen Keesun Technology with disciplined field practices, you can ensure long-term reliability in any environment. To learn more about our customizable assemblies and precision-engineered products, contact us today.
