In the era of high-frequency dominance—spanning millimeter-wave (mmWave), 5G-Advanced infrastructure, LEO satellite constellations, and Level 4 autonomous driving radars—Signal Integrity (SI) has transitioned from a design consideration to the ultimate benchmark of hardware excellence.
As critical nodes within the RF signal chain, connectors are the most vulnerable points for impedance fluctuations, phase shifts, and energy dissipation. At frequencies exceeding 28GHz, even microscopic material defects or a 0.01mm mechanical misalignment can lead to catastrophic link failure. This article explores how to push RF connector loss to its physical limits through advanced material science, rigorous physical modeling, and precision manufacturing control.
1. Impedance Continuity Modeling: Eliminating Return Loss at the Source
In high-frequency transmission, any change in physical dimensions or dielectric environment is "perceived" by electromagnetic waves as an impedance discontinuity. These discontinuities trigger reflections, quantified as Return Loss (RL), which degrades the total power delivered to the antenna or receiver.
Tapered Transition and Step Compensation
The interface where the inner conductor meets the dielectric support is a notorious "high-risk zone" for impedance jumps. To mitigate this, expert RF engineers utilize Tapered Transition designs. By employing microscopic gradient changes in the conductor diameter or dielectric geometry, the transition buffers the impedance fluctuation.
Achieving this requires high-fidelity HFSS (High-Frequency Structure Simulator) modeling during the R&D phase. Engineers must perform iterative sweeps to ensure a stable Voltage Standing Wave Ratio (VSWR) across the entire operating bandwidth, ensuring that the transition remains electrically "invisible."
Precision Control of Air Gaps and Parasitics
During the mating process of two connectors, any longitudinal air gap between the center contacts creates parasitic inductance. At mmWave frequencies, a gap as small as 0.05mm can degrade Return Loss by 5–10dB, effectively creating a "bottleneck" in the system. To combat this, high-performance connectors implement elastic contact mechanisms or calibrated pre-load designs to maintain constant physical and electrical contact pressure, regardless of thermal expansion or mechanical vibration.
2. Dielectric Material Innovation: Overcoming Dielectric Loss
As operating frequencies climb into the GHz and THz ranges, dielectric materials begin to act like "sponges," absorbing electromagnetic energy through molecular friction and converting it into heat. This is known as Dielectric Loss.
The Shift to Expanded PTFE (ePTFE)
While traditional solid PTFE (Polytetrafluoroethylene) has long been the industry standard due to its low Dissipation Factor (Df), it reaches its physical limits in the mmWave spectrum. Modern high-performance interconnects utilize Expanded PTFE (ePTFE). By introducing air micropores into the fluoropolymer matrix, the effective Dielectric Constant (Dk) is reduced from approximately 2.1 toward the ideal value of 1.0 (air). This significantly minimizes polarization attenuation and allows for faster signal propagation speeds.
Thermo-mechanical Stability and CTE Matching
Connectors generate localized heat during high-power operation. If the Coefficient of Thermal Expansion (CTE) of the dielectric does not match that of the metal conductor (usually brass or beryllium copper), physical displacement occurs. This "pumping" effect destroys the impedance balance over time. Selecting thermally stabilized, cross-linked materials ensures consistent electrical performance across extreme environments, typically ranging from -55°C to +125°C.
3. Surface Physics: Addressing Skin Effect and PIM
As frequency increases, the current flow is restricted to an extremely thin layer on the conductor's surface, a phenomenon known as the Skin Effect. At 30GHz, the skin depth of copper is less than 0.4 micrometers.
The Criticality of Surface Roughness (Ra)
If the microscopic "peaks and valleys" on the metal surface are larger than the skin depth, the actual signal path length increases as the current "climbs" over the surface topography. This results in a sharp spike in resistive loss. Consequently, the inner conductors of premium RF connectors undergo chemical polishing or mirror grinding to keep surface roughness (Ra) below 0.4μm, ensuring the most direct path for signal travel.
Non-magnetic Plating and Passive Intermodulation (PIM)
In multi-band, high-power applications like cellular base stations, Passive Intermodulation (PIM) is a critical failure mode where non-linearities create interference. To reduce loss and suppress PIM, the use of ferromagnetic materials like Nickel as an underplating must be strictly avoided. Instead, Ternary Alloy (White Bronze) or Thick Silver Plating processes are adopted. Silver, possessing the highest electrical conductivity of any element, provides the lowest possible resistive loss at the skin layer.
4. Manufacturing Process and Connection Stability
A flawless theoretical design can be easily compromised by poor fabrication or assembly techniques. Precision at the micron level is the only way to realize the simulated performance.
Termination Technology (Crimp vs. Solder): Soldering provides superior hermeticity and electrical continuity but carries the risk of "solder wicking." If solder flows into the dielectric zone, it alters the local capacitance and ruins the impedance match. Crimping, while more efficient for mass production, requires extreme tool precision to ensure no burrs or deformations are generated at the joint.

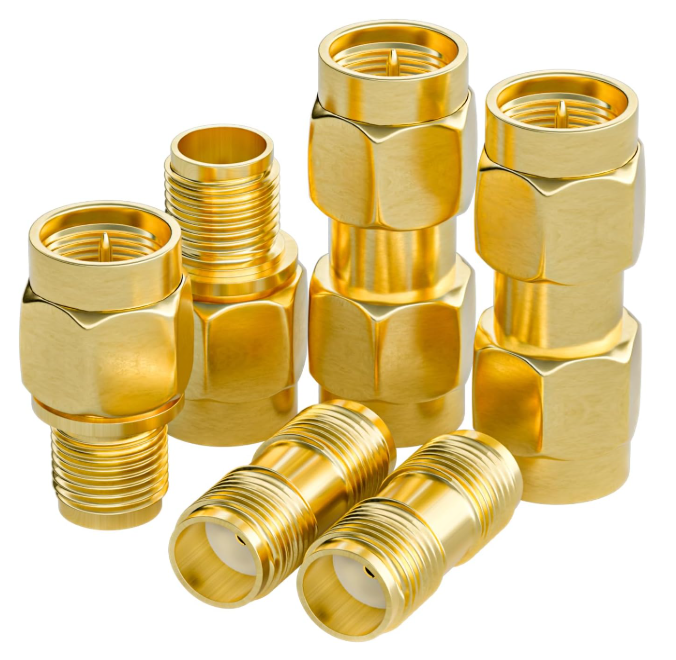

Shielding Effectiveness: High-frequency signals are highly susceptible to leakage (EMI). Threaded coupling mechanisms (e.g., SMA, Type N, 2.92mm) offer significantly better Shielding Effectiveness—often exceeding -100dB—compared to push-on types (e.g., SMP, MCX), which may suffer from RF leakage at the mating plane.
5. Scientific Validation: How to Accurately Measure RF Loss?
You cannot optimize what you cannot measure. Validating low-loss performance requires sophisticated metrology.
VNA Calibration and De-embedding
A Vector Network Analyzer (VNA) is the primary tool for measuring Insertion Loss and Return Loss. However, the cables and adapters used to connect the device under test (DUT) to the VNA introduce their own losses. Engineers must use full port calibration (SOLT or TRL) to "de-embed" the test fixture. For SMT (Surface Mount) connectors, TRL (Thru-Reflect-Line) calibration standards are used to subtract the PCB trace loss, isolating the true performance of the connector itself.
6. Conclusion: Achieving the Balance of Performance and Cost
Reducing RF loss is not merely about selecting the most expensive materials; it is about the holistic integration of physics, chemistry, and mechanical engineering.
When designing your next high-frequency system, consider these three pillars:
Define the Cut-off Frequency: If your application operates at 18GHz, an 18GHz-rated high-precision SMA is more cost-effective and often more robust than a 40GHz 2.92mm connector.
Focus on Link Integrity: The impedance matching between the connector, the cable, and the PCB transition is more critical than the standalone specifications of a single component.
Environmental Resilience: Ensure your material choices account for the thermal and mechanical stresses of the end-use environment.
