How to Choose the Right Antenna for Your Application

Antennas are essential components of modern wireless communication systems. They transmit and receive radio frequency (RF) signals in applications ranging from wireless networking and mobile communications to satellite systems, GPS, and industrial equipment.

However, not all antennas are designed for the same purpose. Different antenna structures offer different characteristics in terms of gain, radiation pattern, bandwidth, size, and installation requirements.

At KEESUN, we understand the importance of choosing suitable RF components for reliable communication systems. In this guide, we introduce several common antenna types and explain the key factors to consider when selecting an antenna for your application.

1. Dipole Antennas: A Simple and Versatile Design

Dipole antennas are among the most fundamental antenna designs. They typically consist of two conductive elements arranged along a common axis and fed at the center.

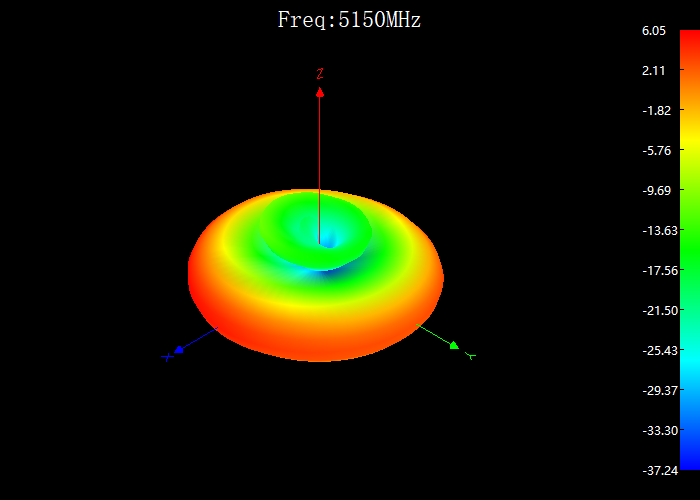

A typical half-wave dipole produces a broadside radiation pattern, with maximum radiation perpendicular to the antenna axis. Its relatively simple structure makes it useful in RF experiments, radio systems, and antenna performance comparisons.

Dipole antennas are suitable for applications where a straightforward antenna structure and predictable radiation characteristics are important.

2. Monopole Antennas: Compact Solutions for Wireless Devices

A monopole antenna typically uses a single radiating element mounted above a ground plane. This configuration can provide a compact alternative to a dipole, making it suitable for many mobile and embedded communication applications.

Monopole antennas are commonly used in vehicle communication equipment, portable devices, and wireless systems.

Their performance depends on the radiating element, ground plane, operating frequency, and surrounding installation environment.

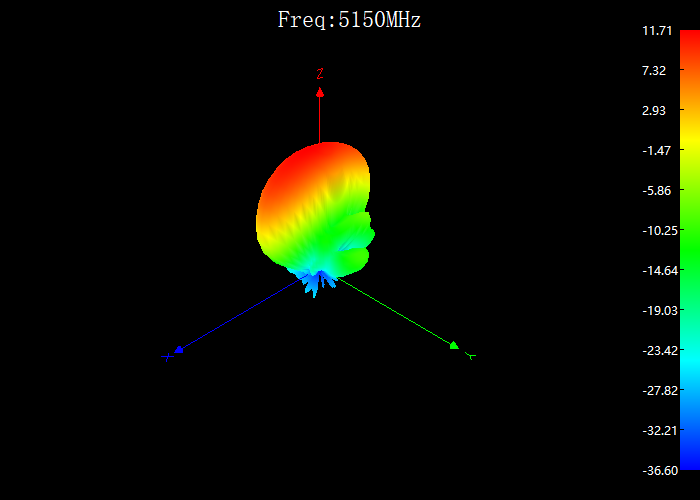

3. Patch Antennas: Low-Profile Antenna Technology

Patch antennas, also known as microstrip antennas, generally consist of a conductive patch mounted on a dielectric substrate above a ground plane.

Their flat structure and compatibility with printed circuit board manufacturing make them suitable for compact electronic devices and integrated wireless systems.

Depending on the design, patch antennas can support applications such as GPS, Wi-Fi, and other RF communication systems.

4. Loop Antennas: Designed for Specific RF Applications

Loop antennas use a conductive loop to transmit or receive electromagnetic signals. Their performance depends on the loop dimensions relative to the operating wavelength.

Small loop antennas can be particularly useful in magnetic-field coupling and near-field applications, while larger designs may provide different radiation characteristics.

Selecting the appropriate loop geometry and operating frequency is important for achieving the intended performance.

5. Key Factors When Selecting an Antenna

When choosing an antenna for an RF communication system, consider the following factors:

Operating frequency: Ensure that the antenna supports the required frequency band.

Gain and radiation pattern: Determine whether broad coverage or directional radiation is required.

Bandwidth: Check that the antenna can operate across the intended frequency range.

Size and installation: Consider available space, mounting requirements, and nearby materials.

Impedance matching: Ensure compatibility between the antenna and the connected RF equipment.

RF interconnections: Select suitable coaxial cables and RF connectors for the frequency, power, and environmental requirements of the system.

An antenna should be evaluated as part of the complete RF system rather than as an isolated component.

How KEESUN Supports RF Connectivity Requirements

A reliable RF communication system depends on more than antenna selection alone. The cables and connectors linking the antenna to the radio, receiver, transmitter, or other RF equipment also influence overall system performance.

KEESUN focuses on three important product categories: antennas, RF connectors, and coaxial cables. Understanding how these components work together can help engineers and equipment manufacturers make better-informed decisions when designing RF connections.

When selecting components, consider the required frequency range, impedance, connector interface, cable length, installation environment, and mechanical compatibility.

Conclusion

Understanding different antenna types is the first step toward selecting an appropriate solution for a wireless communication application.

By evaluating frequency, gain, radiation pattern, bandwidth, and installation constraints, engineers can narrow down the antenna options that best match their system requirements.

KEESUN provides antennas, RF connectors, and coaxial cables for RF connectivity needs. Contact KEESUN to discuss your application requirements and identify suitable component options.
