As drones become increasingly accessible and versatile, the need for effective countermeasures to mitigate security risks has never been greater. Area anti-drone signal jammer antennas stand out as a critical defense technology, capable of neutralizing unauthorized drones by disrupting their core operational signals. But for security professionals, facility managers, and policymakers, a fundamental question remains: How exactly do these antennas work? This comprehensive guide breaks down the underlying principles, key components, operational processes, and critical factors that determine the effectiveness of anti-drone jammer antennas, providing a clear understanding of their role in drone defense systems.
Core Principle: Disrupting Drone Signal Ecosystems

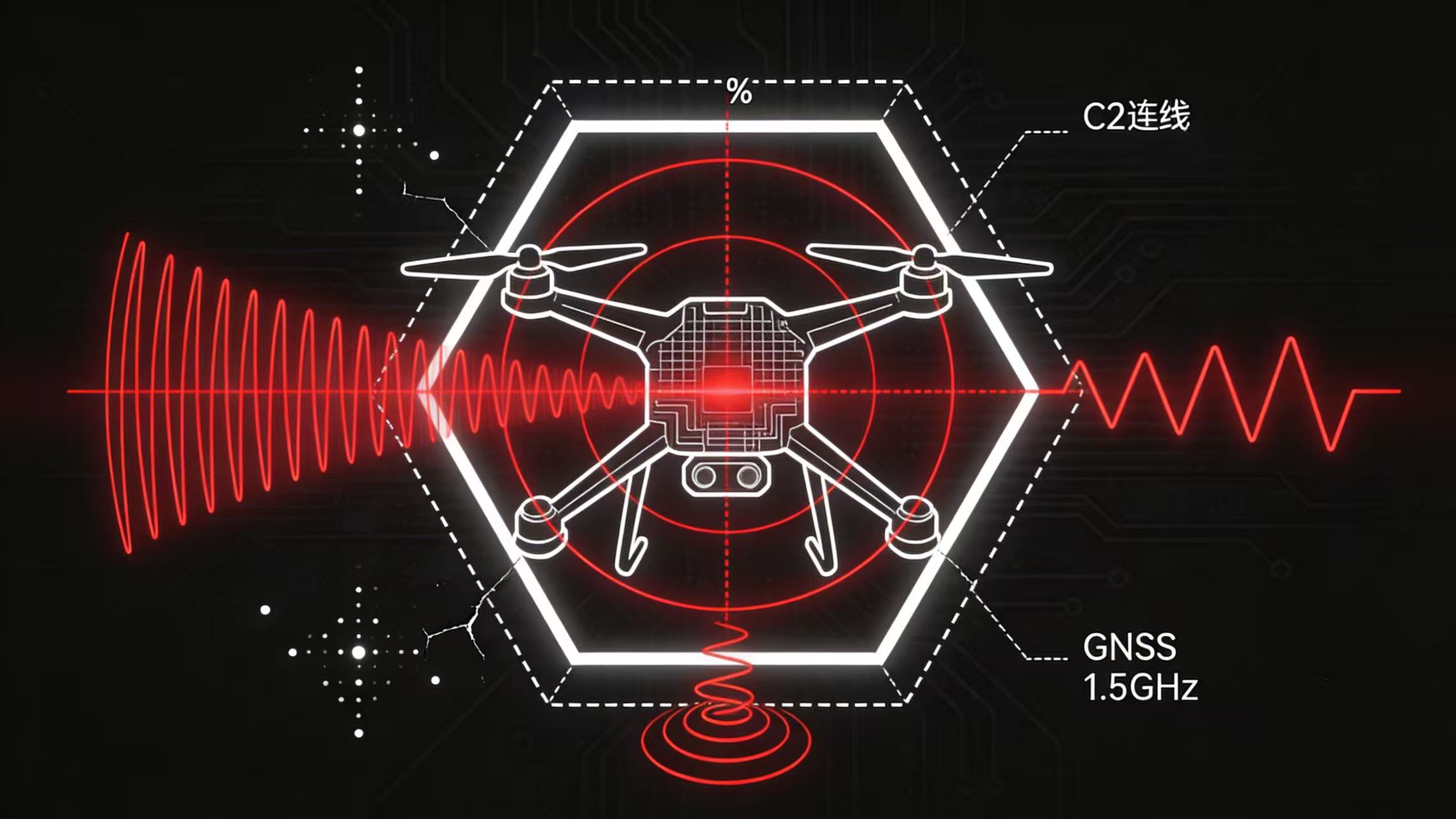

At its heart, an area anti-drone signal jammer antenna operates on a simple yet precise principle: radio frequency (RF) interference. Drones rely on a complex ecosystem of wireless signals to function—primarily control and command (C2) signals (between the drone and its remote controller) and navigation signals (from GNSS satellites like GPS or BeiDou). These signals are transmitted at specific, predictable frequencies, and jammer antennas are engineered to emit targeted RF energy at these same frequencies, overwhelming the drone’s on-board receivers and rendering the original signals unintelligible.
Unlike brute-force signal blocking, modern jammer antennas use "selective jamming" to avoid interfering with legitimate communication systems (e.g., cellular networks, emergency radios). This precision is achieved by tuning the antenna to focus only on the frequency bands critical to drone operation—such as 2.4 GHz, 5.8 GHz (for C2 and video transmission), and 1.5–1.65 GHz (for GNSS navigation). By matching the frequency, modulation, and bandwidth of the drone’s signals, the jammer’s RF energy effectively "drowns out" the drone’s ability to receive and process valid commands or navigation data.
Key Components of Anti-Drone Jammer Antennas
A functional area anti-drone jammer antenna is part of a larger system, with several core components working in tandem to deliver effective interference. Understanding these components is essential to grasping how the antenna operates:
1. Antenna Unit
The antenna itself is the interface between the jammer system and the airwaves, responsible for radiating the interference signal. Two common antenna types are used: omnidirectional antennas (radiate RF energy in all directions, ideal for wide-area coverage) and directional antennas (focus energy in a specific direction, enabling longer-range jamming and reducing unintended interference). The antenna’s design—including its size, shape, and material—dictates its frequency range, gain (signal strength), and beamwidth (coverage angle).
2. RF Transmitter
The RF transmitter generates the interference signal, converting electrical energy into high-frequency RF waves. It is calibrated to produce signals at the exact frequencies targeted (e.g., 2.4 GHz, 5.8 GHz, GNSS bands) and can adjust parameters like power output (measured in watts) and modulation type (e.g., amplitude modulation, frequency modulation) to match the drone’s signal characteristics. Higher-power transmitters extend jamming range but require stricter regulatory compliance to avoid collateral interference.
3. Signal Processor
The signal processor is the "brain" of the system, responsible for detecting, analyzing, and targeting drone signals. Advanced jammer systems use spectrum analysis to scan the surrounding RF environment, identify active drone frequencies, and distinguish them from legitimate signals. Some modern processors also support adaptive jamming—adjusting the interference signal in real time to counter drone anti-jamming technologies like frequency hopping (where drones switch frequencies to avoid interference).
4. Power Supply
Area jammer antennas require a stable power source to operate, with options ranging from AC power (for fixed installations like airports or government facilities) to rechargeable batteries (for portable systems used at events or remote sites). The power supply’s capacity directly impacts operational duration and transmitter power output—critical factors for long-term security deployments.
Operational Process of Area Anti-Drone Jammer Antennas
The workflow of an area anti-drone jammer antenna is a sequential process that combines detection, analysis, interference, and verification. Here’s a step-by-step breakdown:
1. Signal Detection and Analysis
The process begins with the signal processor scanning the RF spectrum for signs of drone activity. This involves identifying characteristic signals such as C2 transmissions (between the drone and controller) or GNSS navigation signals. The processor analyzes key signal parameters—frequency, modulation, bandwidth, and signal strength—to confirm the presence of a drone and classify its type (e.g., consumer vs. professional, fixed-wing vs. multi-rotor).
2. Target Frequency Locking
Once a drone is identified, the system locks onto the specific frequencies it is using. For example, if a consumer drone is operating on the 2.4 GHz band for C2 and 5.8 GHz for video transmission, the jammer will focus on both bands simultaneously. This locking ensures that the interference energy is directed only at the target, minimizing waste and reducing the risk of interfering with other devices.
3. Interference Signal Transmission
The RF transmitter generates the interference signal based on the analyzed parameters, and the antenna radiates this signal into the air. The interference works by one of two primary mechanisms: carrier suppression (overwhelming the drone’s receiver with a strong signal at the same frequency) or signal corruption (transmitting a distorted version of the drone’s signal to confuse the receiver). In either case, the drone’s on-board systems can no longer accurately interpret commands from the controller or navigation data from GNSS satellites.
4. Drone Neutralization and Verification
When its signals are disrupted, the drone typically activates a preprogrammed fail-safe mode. Common responses include hovering in place, returning to the takeoff point (if navigation signals are only partially disrupted), or executing an emergency landing. The jammer system may continue to monitor the RF environment to verify that the drone has been neutralized and to ensure no new drone signals are detected.
Types of Jamming Technologies Used by Antennas
Anti-drone jammer antennas employ different jamming technologies depending on the target signal and operational requirements. The three most common types are:
1. Barrage Jamming
Barrage jamming (also known as broad-spectrum jamming) emits a wide range of frequencies simultaneously, covering all common drone bands. This is a simple, effective method for countering multiple drones at once but is less efficient and carries a higher risk of interfering with legitimate signals. It is typically used in high-threat environments where rapid neutralization is prioritized over precision.
2. Sweep Jamming
Sweep jamming involves scanning a range of frequencies at a rapid pace, emitting short bursts of interference at each frequency. This is more efficient than barrage jamming, as it focuses energy on specific bands rather than wasting it on unused frequencies. It is ideal for environments where drone threats are diverse and may use different frequencies.
3. Deception Jamming
Deception jamming is a more advanced technique that generates fake signals mimicking the drone’s legitimate C2 or GNSS signals. For example, a GNSS deception jammer might transmit false satellite coordinates, causing the drone to miscalculate its position and fly off course. This method is highly precise but requires detailed knowledge of the drone’s signal protocols and is often used in military or high-security applications.
Factors Affecting the Effectiveness of Jammer Antennas
Several factors influence how well an area anti-drone jammer antenna performs, including:
l Antenna Gain and Beamwidth: Higher gain antennas transmit stronger signals, extending jamming range, while narrower beamwidths focus energy more precisely. Omnidirectional antennas have lower gain but wider coverage, while directional antennas offer higher gain but require accurate targeting.
l Transmitter Power: Higher power output increases jamming range but may violate regulatory limits. Most commercial jammer systems are limited to low-to-moderate power levels (1–10 watts) to avoid interfering with critical infrastructure.
l Environmental Conditions: Obstacles like buildings, trees, and terrain can block or weaken RF signals, reducing jamming effectiveness. Weather conditions (e.g., rain, fog) can also attenuate signals, particularly at higher frequencies (e.g., 5.8 GHz).
l Drone Anti-Jamming Capabilities: Advanced drones may use frequency hopping, spread-spectrum communication, or redundant navigation systems (e.g., combining GNSS with inertial navigation) to resist jamming. This requires jammer antennas with adaptive or multi-band capabilities to maintain effectiveness.
Regulatory and Safety Considerations
It is critical to note that RF jamming is heavily regulated worldwide. Unauthorized use of anti-drone jammer antennas is illegal in most countries, as they can interfere with essential services like air traffic control, emergency communications, and cellular networks. Licensed users (e.g., government agencies, military, certified security firms) must comply with strict rules regarding frequency use, power output, and operational range to minimize collateral damage. Additionally, jammer systems must be designed to avoid harming humans or wildlife, as high-power RF energy can pose health risks at close range.
Conclusion
Area anti-drone signal jammer antennas work by leveraging targeted RF interference to disrupt the critical signals drones rely on for control and navigation. Their operation depends on a coordinated system of components—including the antenna unit, RF transmitter, signal processor, and power supply—that work together to detect, analyze, and neutralize drone threats. By employing techniques like barrage jamming, sweep jamming, or deception jamming, these antennas can counter a wide range of drone models, from consumer-grade quadcopters to professional industrial drones. However, their effectiveness is influenced by factors like antenna design, transmitter power, and environmental conditions, and their use is strictly regulated to protect legitimate communication systems. For security professionals, understanding how these antennas work is essential for selecting and deploying the right anti-drone solutions to protect critical infrastructure, public events, and sensitive facilities.
