As 5G networks continue to roll out globally, the challenge of providing robust, high-speed connections in diverse environments has become more apparent. While 5G antennas are designed to deliver faster speeds, lower latency, and higher capacity, topography—the physical features of the earth's surface—plays a significant role in determining the effectiveness of these antennas. This article will explore how terrain influences 5G antenna performance, the strategies used to overcome topographical challenges, and why careful planning is essential in ensuring optimal 5G coverage, especially in areas with complex landscapes.
The Basics of 5G Antennas
What Is a 5G Antenna?

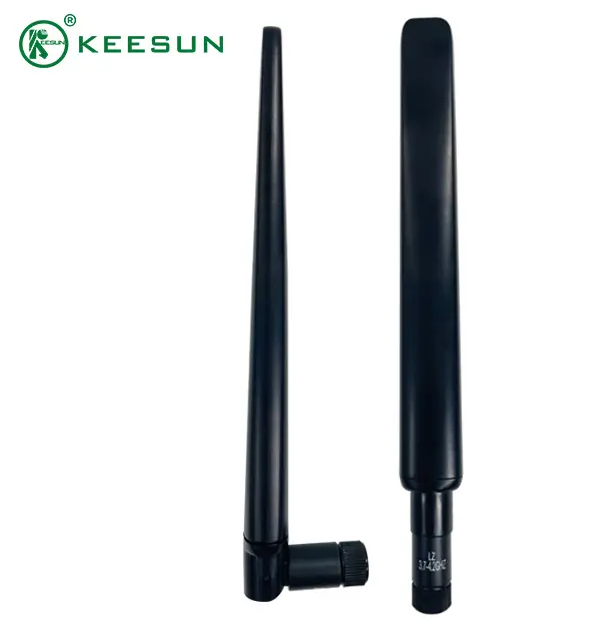

A 5G antenna is a critical component of the 5G wireless communication network, responsible for transmitting and receiving radio signals. These antennas are designed to support the new 5G frequency bands, including the mmWave (millimeter-wave) spectrum, which provides ultra-fast data speeds but comes with challenges such as limited range and signal attenuation. 5G antennas are far more advanced than their 4G counterparts, using technologies like massive MIMO (Multiple Input, Multiple Output) and beamforming to enhance the quality of service, increase capacity, and reduce interference.
How 5G Antennas Differ from 4G Antennas
While traditional 4G antennas are optimized for lower-frequency bands and wider coverage, 5G antennas operate across a broader range of frequencies, including high-frequency mmWave bands. These higher frequencies enable faster data rates but face limitations like reduced range and poor penetration through physical obstacles, such as buildings, trees, and hills. The result is that 5G networks require a denser infrastructure with smaller cells to ensure consistent coverage, particularly in urban environments.
How Topography Affects Wireless Signals
Signal Propagation and Path Loss
Topography significantly impacts how 5G signals propagate. The physical features of the landscape—such as hills, valleys, buildings, and forests—can affect the distance a signal travels, as well as the signal strength received at the antenna. When radio waves travel over the earth’s surface, they encounter obstacles that cause them to either be absorbed, reflected, refracted, or diffracted.
Path loss is the reduction in the strength of the signal as it travels from the transmitting antenna to the receiving antenna. The amount of path loss varies depending on the topography. For example, a signal traveling through a valley may encounter different levels of attenuation compared to a signal traveling over a flat plain. This is especially problematic for high-frequency 5G signals, which are more susceptible to path loss than lower-frequency 4G signals.
Line-of-Sight (LOS) vs. Non-Line-of-Sight (NLOS)
One of the most crucial concepts in understanding how topography affects 5G antenna performance is line-of-sight (LOS) versus non-line-of-sight (NLOS) propagation. LOS occurs when there is a clear, unobstructed path between the transmitting and receiving antennas, which ensures optimal signal strength. However, in many cases, especially in urban and rural environments with hilly or mountainous terrain, NLOS propagation occurs, meaning that obstacles block the direct path of the signal.
NLOS conditions can lead to signal reflection, where the signal bounces off objects like buildings or hills, and diffraction, where the signal bends around obstacles. While these phenomena can help signals reach areas that might otherwise be out of range, they can also introduce interference and reduce signal quality. 5G networks, especially those utilizing mmWave frequencies, are more sensitive to NLOS conditions than 4G, making terrain a crucial factor in network design.
Specific Terrain Effects on 5G Antenna Performance
Hills and Elevation Changes
Hilly terrain poses a significant challenge for 5G antennas. The elevation changes in mountainous or hilly regions can block or reflect 5G signals, reducing coverage and signal quality. When radio waves encounter hills, they are absorbed or reflected, creating shadow zones where the signal cannot reach or is significantly weakened. This is particularly problematic for mmWave frequencies, which have a shorter range and higher susceptibility to attenuation compared to lower-frequency signals.
For example, in mountainous areas, the line-of-sight path between antennas can be interrupted by hills or ridges, leading to dead zones. To overcome this, network planners may need to deploy additional small cells or use higher antennas to ensure that the signal can bypass obstructions.
Valleys and Low Areas
Valleys and low-lying areas can also create challenges for 5G networks. The terrain in these areas can cause signals to travel along different paths, such as through diffraction or reflection, leading to multi-path interference. This phenomenon occurs when multiple versions of the same signal arrive at the receiver at slightly different times, causing signal distortion or fading.
In addition to multi-path interference, the physical features of valleys can increase the signal attenuation. As signals travel through valleys, they may encounter additional losses due to obstacles, such as trees or buildings, which block or absorb the signal. In some cases, it may be necessary to deploy additional antennas to improve coverage and ensure reliable signal quality in these regions.
Vegetation and Ground Roughness
Vegetation, such as forests, trees, and large plants, can have a significant impact on 5G signal strength. Trees and plants absorb and scatter radio waves, leading to increased path loss. The extent of signal attenuation depends on the density and type of vegetation, with thicker forests causing more significant signal degradation.
Ground roughness also plays a role in signal propagation. Uneven terrain, such as fields with varying soil types and structures, can cause additional signal scattering, leading to faded coverage in areas where the ground is particularly irregular.
Urban vs. Rural Terrain Scenarios
The impact of topography on 5G antenna performance varies greatly between urban and rural areas. Urban environments, with their dense buildings, streets, and infrastructure, create what is known as urban canyons. These narrow, tall corridors between buildings reflect and scatter 5G signals, often resulting in multipath interference and delayed signal arrival.
In contrast, rural areas with more open space and fewer obstructions can have a more predictable signal propagation, but challenges still arise due to natural terrain features such as hills and valleys. The lack of dense infrastructure in rural areas also means that fewer antennas are available, making it more challenging to provide consistent 5G coverage.
Planning and Deployment Strategies
Terrain-Aware Site Surveys
To mitigate the effects of topography on 5G antenna performance, network planners must conduct terrain-aware site surveys. These surveys involve collecting detailed geographical data to analyze how terrain features affect signal propagation in the target area. By understanding the terrain, planners can position antennas more effectively and choose the optimal antenna types for specific locations.
For instance, in hilly areas, planners may opt to deploy higher-mounted antennas or use small cell networks to reduce the impact of obstructions. In flat, open areas, traditional macro base stations may be sufficient.
Antenna Height and Tilt Optimization
Adjusting the height and tilt of antennas is another crucial strategy in overcoming topographical challenges. By increasing antenna height, it is possible to extend the signal's range and reduce interference caused by obstructions. Electronic downtilt allows the antenna's beam to be directed more precisely toward the ground, optimizing coverage in areas with a lot of vegetation or buildings.
Small Cell vs. Macro Cell Deployment
In areas with complex topography, small cells are often preferred over traditional macro cells. Small cells are compact, low-power base stations that can be placed on existing infrastructure like streetlights, utility poles, or rooftops. They are particularly effective in areas with challenging terrain, as they can provide localized coverage and reduce the impact of signal attenuation.
In contrast, macro cells are larger base stations used to provide wide-area coverage, often on taller towers or other elevated structures. While macro cells are still essential for large-scale coverage, they are less effective in densely packed urban environments or areas with significant elevation changes.
5G Antenna Technologies Mitigating Terrain Impact
Beamforming Adaptability
Beamforming is a technology that allows 5G antennas to adjust the direction of their signal beams to optimize coverage. In areas with complex terrain, beamforming enables the antenna to direct the signal toward specific users or regions, improving signal strength and reducing interference. This adaptability helps overcome the challenges posed by topographical features like hills and valleys.
Massive MIMO Resilience
Massive MIMO technology, which uses multiple antennas to serve multiple users simultaneously, helps 5G networks overcome terrain challenges. By allowing antennas to adjust dynamically to changing conditions, massive MIMO ensures that users in difficult-to-reach areas still receive strong and stable signals.
Network Simulation and Optimization Tools
Network simulation tools are essential for predicting how terrain will affect 5G antenna performance. These tools use geographical data to simulate signal propagation and identify potential problem areas. By using these simulations, network planners can optimize antenna placement and design strategies to improve coverage and reliability in challenging topographies.
Real-World Applications of 5G Antennas
Rural Mountainous Deployments
In rural mountainous areas, 5G networks often face significant coverage challenges due to elevation changes and physical obstructions. However, using small cells and high-altitude antennas can help extend the network’s range and improve connectivity in these regions. For example, deploying antennas on hilltops or mountain peaks can help ensure better coverage in valleys below.
Urban Canyon Effects
In urban areas with dense infrastructure, 5G antennas need to navigate the challenges posed by urban canyons. These narrow streets between tall buildings can cause signals to reflect and scatter, leading to coverage gaps. To overcome this, network planners use advanced technologies like beamforming and massive MIMO to provide better directional coverage and reduce interference in these environments.
Conclusion
Topography plays a critical role in the performance of 5G antennas. From hills and valleys to urban canyons, terrain features can significantly impact signal propagation, coverage, and overall network performance. However, with careful planning, advanced antenna technologies, and terrain-aware deployment strategies, these challenges can be mitigated. 5G networks are the future of wireless communication, and understanding the importance of topography is crucial in ensuring that these networks deliver fast, reliable, and widespread connectivity.
At Keesun, we are committed to providing advanced 5G antenna solutions that overcome topographical challenges, ensuring optimal performance for both urban and rural deployments. With cutting-edge technologies like massive MIMO, beamforming, and terrain-aware network planning, we help businesses build resilient, high-performance 5G networks. Reach out today to learn how our solutions can enhance your network.
FAQ
Does topography really matter for 5G antenna performance?
Yes, topography significantly impacts the propagation of 5G signals, especially at higher frequencies like mmWave. Terrain features like hills, valleys, and urban canyons can block or scatter signals, reducing coverage and quality.
How does hilly terrain affect 5G coverage?
Hilly terrain can obstruct the direct path between antennas, leading to signal reflection or absorption. This can create coverage gaps, especially in areas that require mmWave frequencies.
Why are small cells important in rural areas with uneven terrain?
Small cells are low-power, compact base stations that can be deployed in challenging environments like rural areas with hills or forests. They help ensure reliable coverage by providing localized, high-performance signals.
How does beamforming help overcome topographical challenges?
Beamforming allows antennas to focus their signal in specific directions, improving coverage and reducing interference. This is especially useful in areas with uneven terrain or obstacles that would otherwise block the signal.
What strategies can improve 5G performance in urban areas with complex terrain?
In urban areas with many obstacles, strategies like massive MIMO, beamforming, and small cell deployment are used to enhance coverage and optimize performance, ensuring stable connections even in urban canyons or narrow streets.
