High-Performance RF Signal Integrity

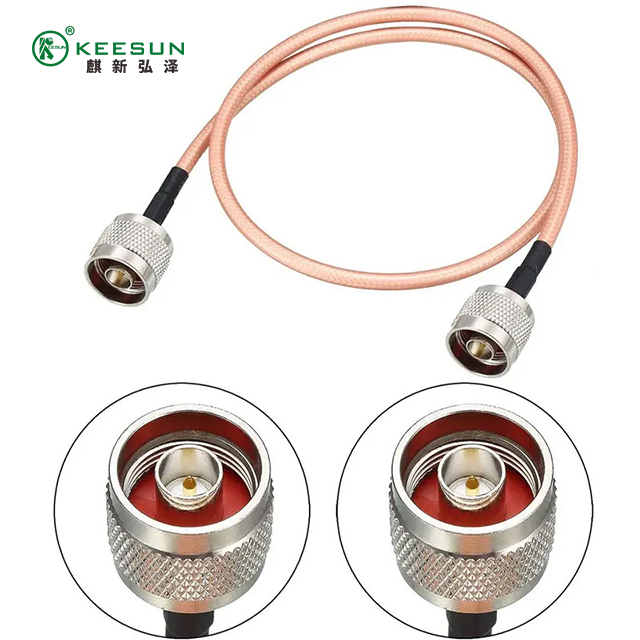

Engineered for precision, this N-Male to N-Male RG316 coaxial patch cable is designed to provide a low-loss bridge for high-frequency RF applications. By utilizing high-purity brass connectors and silver-plated conductors, it ensures minimal signal attenuation and maximum shielding effectiveness. Whether you are connecting a cellular booster, a professional radio transmitter, or laboratory testing equipment, this cable maintains a stable 50 Ohm impedance to prevent standing waves and signal reflection.
Durable RG316 Teflon (PTFE) Construction
Unlike standard PVC cables, our assembly features the RG316 military-grade cable standard. The jacket is made of high-temperature resistant PTFE (Teflon), allowing it to operate reliably in extreme environments ranging from -55°C to +200°C. Its 2.5mm slim profile offers exceptional flexibility, making it the ideal choice for tight cabinet wiring, drone FPV systems, and internal equipment interconnects where space is at a premium but performance cannot be compromised.
Precision-Engineered N-Type Connectors
The "N-Type" interface is the industry standard for durable, weather-resistant outdoor and indoor RF connections. Both ends feature N-Male (Plug) connectors with high-quality knurled grips for easy manual tightening. The inner pins are gold-plated to prevent oxidation and ensure a low-contact resistance interface, while the heavy-duty nickel-plated brass shells provide superior physical protection against physical impact and corrosion.
Versatile Industry Applications
This RF jumper cable is a versatile solution for a wide range of professional and hobbyist wireless infrastructures, including:
Wireless Networking: Connecting WiFi antennas, Access Points, and Routers.
Telecommunications: 4G/5G LTE signal boosters and base station internal patching.
SDR & Testing: Interfacing Software Defined Radios (SDR) with external filters or amplifiers.
Marine & Aviation: Reliable communication links in salt-spray or high-vibration environments.
Technical Specifications at a Glance
To help you ensure total system compatibility, here are the key parameters:
Feature | Specification
Connector :Type |N-Male to N-Male (J-J)
Cable Type :RG316 Coaxial (Silver-Plated Copper)
Impedance: 50Ω
Frequency Range :DC to 3 GHz (Supports up to 6 GHz)
Jacket Material:PTFE (Teflon)
Color:Transparent Brown / Rose Gold
Why Choose KEESUN RF Assemblies?
We focus on "Quality-First" manufacturing. Every cable assembly undergoes rigorous VSWR (Voltage Standing Wave Ratio) testing before shipment to guarantee that your network remains at peak efficiency. Our commitment to using 100% genuine RG316 materials ensures your equipment stays protected from signal interference and power loss.
