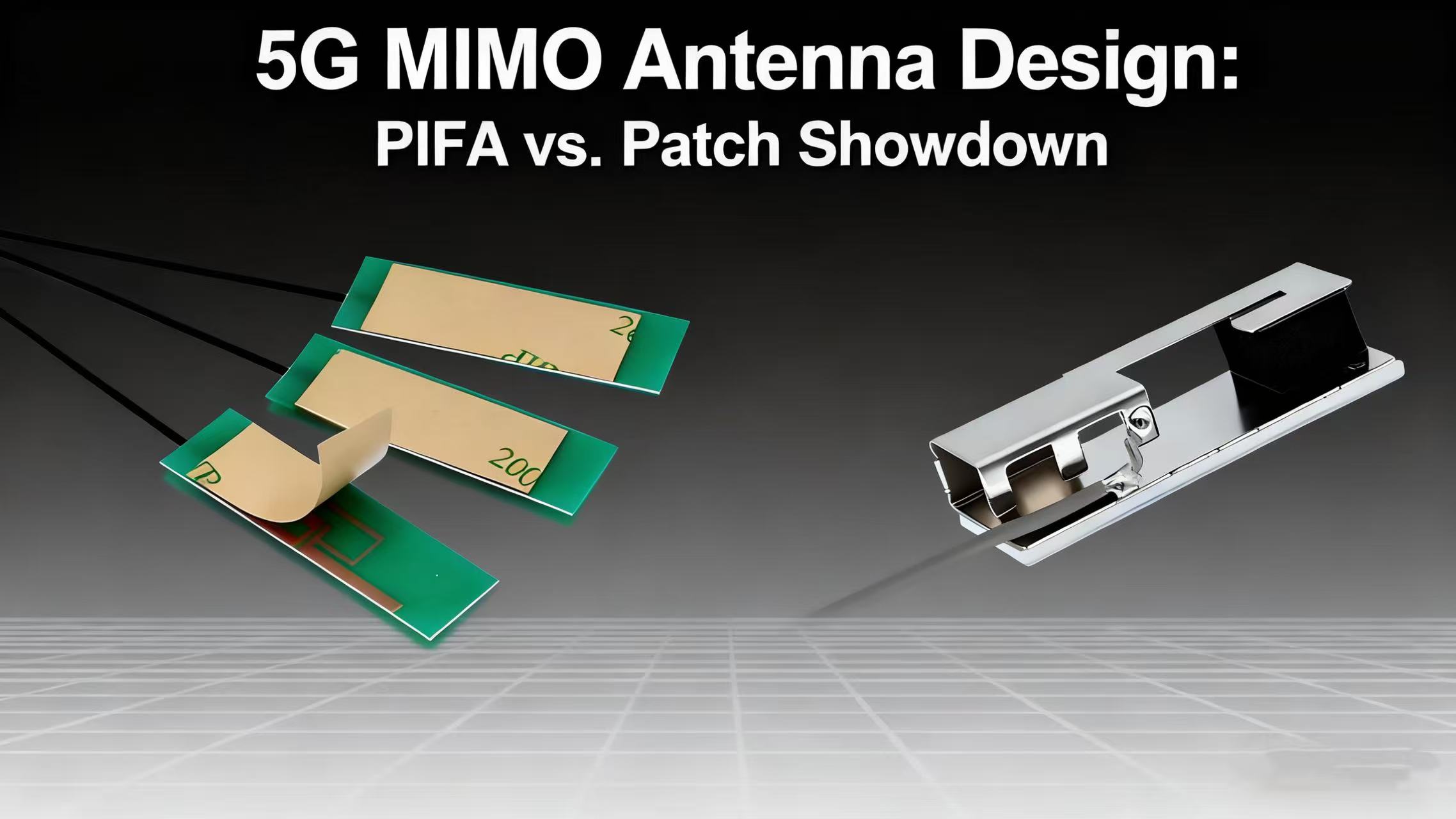

In the era of 5G, Multiple-Input Multiple-Output (MIMO) technology is the key to achieving extremely high data rates, requiring the integration of multiple high-isolation antenna elements (4, 8, or more) within terminal devices. In severely constrained spaces, antenna selection becomes the primary challenge for system engineers. This article focuses on two major integrated antenna technologies: Planar Inverted-F Antenna (PIFA) and Microstrip Patch Antenna. Through detailed comparison of key performance indicators and application scenarios, we provide professional insights to help you make the best 5G antenna design decision.
I. Integrated Antenna Fundamentals: Structure and Electromagnetic Characteristics Analysis
Understanding the structural differences between PIFA and Patch is the starting point for assessing their 5G MIMO potential.
1.1 Planar Inverted-F Antenna (PIFA): The Edge of Compactness and Low Mutual Coupling
PIFA is one of the most widely used antennas in mobile communications.
Structural Profile: It connects the radiating element to the ground plane via a shorting pin, utilizing inductive and capacitive components to achieve resonance. This structure gives PIFA its low-profile characteristic, making it easy to integrate close to device enclosures or on the PCB edge.
MIMO Advantage: PIFA's radiation is primarily concentrated in the upper hemisphere. Its inherent electromagnetic field distribution helps to suppress surface waves, leading to higher element isolation (i.e., lower mutual coupling) in closely spaced MIMO arrays. This makes it a preferred solution for high-density integration challenges.
1.2 Microstrip Patch Antenna: The Balance of High Gain and Manufacturability
Patch antennas are favored for their simple geometry.
Structural Profile: It consists of a metal patch (printed on a dielectric substrate) over a ground plane. This is a classic and easily analyzed microstrip antenna structure.
Performance Characteristics: Patch antennas are easy to design for high antenna gain and excellent directionality. They serve as the foundational element for building large phased array antennas. Their manufacturing process is fully compatible with standard PCB fabrication, resulting in high cost-effectiveness.
II. Deep Dive into 5G MIMO Key Performance Indicators (KPIs)
In complex and dynamic 5G environments, the practical performance of an antenna array must be measured by a set of rigorous KPIs.
Performance Indicator (KPI)
PIFA
Patch Antenna
5G MIMO Selection Analysis
Size & Integration
Excellent. Small footprint, ideal for compact integration on the edge and inside terminal devices
Typically requires a larger ground plane for performance, posing challenges for terminal integration.
PIFA Wins: Best for space-constrained handheld devices.
Antenna Gain
Moderate to Good. Suitable for broad coverage, but achieving high gain in wideband designs is challenging.
Superior. Easy to design for high directivity, making it ideal for high Effective Isotropic Radiated Power (EIRP).
Patch Wins: Best for base stations or CPE requiring long range/high power.
Mutual Coupling & Isolation
Excellent. Structure inherently reduces coupling between elements, resulting in low Envelope Correlation Coefficient (ECC).
Challenging. Elements are prone to surface wave coupling; achieving high isolation requires complex decoupling structures.
PIFA Wins: Performs better in high-density MIMO arrays.
Bandwidth
Narrowband. Widening the bandwidth requires complex multi-resonance or wideband matching techniques.
Relatively Wide. Easier to achieve broader frequency coverage by adjusting dielectric thickness or using multi-layer structures.
Patch Slightly Wins: Better suited for devices covering multiple 5G frequency bands.
Cost & Process
Requires extra feed/grounding elements; manufacturing is slightly more complex, cost slightly higher.
Can be mass-produced using standard printing technology; highly cost-effective.
Patch Wins: Preferred for large-scale, low-cost manufacturing.
III. Application Scenario Matching: Technology Roadmaps and Strategic Positioning
The choice between PIFA and Patch ultimately depends on the strategic balance required for the product's size, performance, and cost.
3.1 PIFA’s Crucial Role: Smart Terminals and the IoT Ecosystem
PIFA is irreplaceable in scenarios requiring high integration density and user proximity operation:
Mobile Device MIMO Arrays: PIFA's low mutual coupling is essential for maintaining high throughput in 5G/6G mobile phones, which require demanding 4x4 or 8x8 MIMO systems.
Wearables and Small IoT Modules: In battery-powered, size-limited devices, PIFA provides reliable connectivity without significantly sacrificing power efficiency.
3.2 Patch’s Dominance: Fixed Access and High-Precision Communication
Patch antennas, due to their superior directivity and gain, lead in infrastructure and specialized fields:
5G Base Stations and CPE: Patch arrays are used to build Beamforming systems with high gain, enabling directional coverage to specific users and improving spectrum efficiency.
Vehicular Communication & Satellite Terminals: In phased array antenna systems demanding precise tracking and high reliability, Patch antennas are the preferred choice for building millimeter-wave radar and LEO satellite user terminals.
IV. Industry Frontier: AI-Driven Breakthroughs in Integrated Antennas
Whether using PIFA or Patch, the increasing challenges of higher frequencies and smaller sizes have made Artificial Intelligence (AI) and Machine Learning (ML) essential tools for breaking performance limits.
Google Research Trends: Google is actively exploring the use of ML models for real-time adaptive tuning of antenna arrays in complex electromagnetic environments. For example, AI algorithms can quickly predict and compensate for antenna resonant frequency drift caused by factors like user handling or temperature changes, ensuring impedance matching remains optimal for PIFA antennas across all usage scenarios. This transforms the antenna from a static component into a "software-defined" smart interface.
