The 470–510 MHz 3 dBi Rubber Antenna is a highly efficient, rugged solution engineered for dependable wireless connectivity within the critical sub-GHz frequency spectrum. This specific band is widely utilized for telemetry, industrial monitoring, long-range M2M (Machine-to-Machine) communications, and proprietary low-power wide-area networks (LPWAN), including specialized applications like LoRa. Designed to deliver a consistent 3 dBi of gain with an omni-directional radiation pattern, this antenna excels at maximizing signal coverage across vast distances or complex indoor environments. It provides an immediate, durable upgrade over standard low-gain antennas, offering the perfect blend of performance, flexibility, and robust construction for mission-critical low-frequency applications.
Precision Engineering and Technical Specifications
The effectiveness of a sub-GHz antenna is heavily reliant on its physical size and electrical tuning. This rubber antenna balances compact design with the necessary physical dimensions for peak performance at 470 MHz.
Frequency and Gain Optimization
The antenna’s internal structure is optimized for a narrow, high-performance bandwidth, which is key for reliability in the targeted spectrum.
Dedicated Frequency Range: The antenna is precisely tuned for the 470 MHz to 510 MHz band. This specific range is commonly used for ISM applications, utility meter reading (AMI), supervisory control and data acquisition (SCADA), and long-distance, low-data-rate communications in regions where this spectrum is allocated.
Optimal Gain for Range: With a stable 3 dBi gain, the antenna is designed to efficiently focus the radiated energy along the horizon. This moderate gain is ideal for maximizing range in line-of-sight scenarios, while still offering sufficient vertical beamwidth to handle uneven terrain or multi-floor installations, without introducing the complexity of a directional high-gain antenna.
Omni-Directional Pattern: The omni-directional 360-degree radiation pattern ensures equal coverage in all horizontal directions. This makes it the perfect solution for central access points (gateways) and mobile devices that require connectivity regardless of their physical orientation relative to the receiver.
Low VSWR: Engineered for an excellent impedance match (50 Ohms), the antenna maintains a low VSWR (Voltage Standing Wave Ratio), typically ≤2.0:1. This is essential for ensuring maximum power transfer from the radio to the antenna, thus maximizing effective communication range.
Physical and Mechanical Durability
The "rubber duck" format provides both necessary flexibility and superior protection for the internal antenna element.

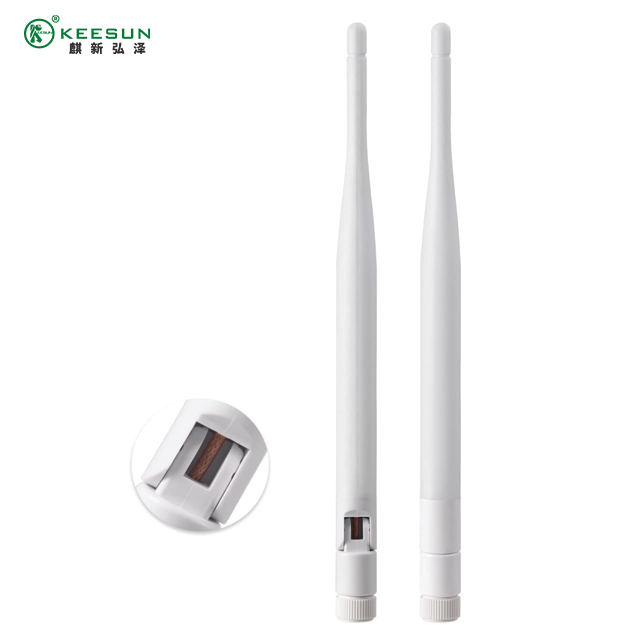

Robust Rubber Casing: The exterior features a durable, flexible rubberized jacket (often TPE or high-grade plastic), which protects the radiating element from moisture, dust, and physical impact. This construction ensures the antenna can withstand the rigors of industrial environments and repeated handling.

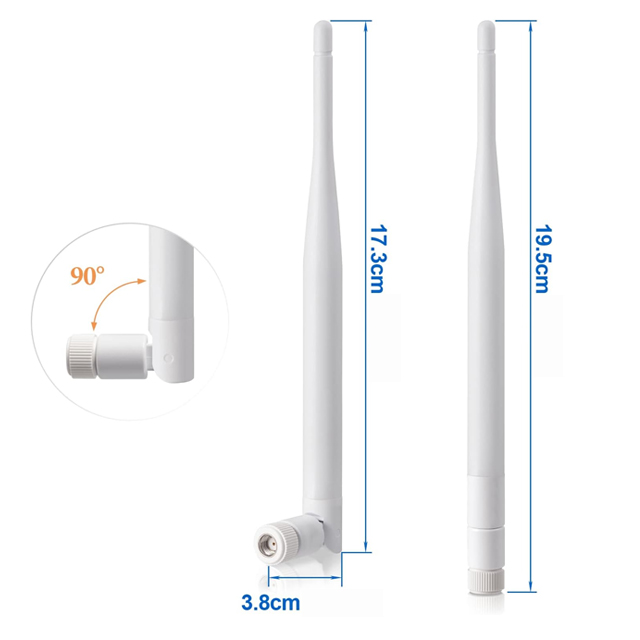

Flexible Swivel Joint: A key mechanical feature is the 90-degree adjustable swivel joint and 360-degree rotation capability. This allows for optimal vertical positioning to maximize signal polarization, which is critical for long-range communications. It also permits the antenna to be folded parallel to the host device for secure transport or storage.

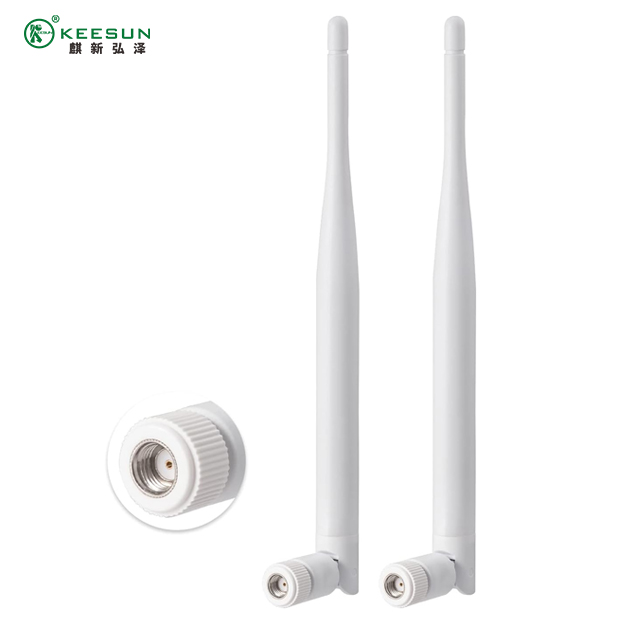

Standard Connector Interface: The antenna is typically terminated with a standard threaded RF connector, such as SMA Male or TNC Male. This secure, threaded coupling ensures a vibration-proof and stable electrical connection to the radio module or device enclosure.
Suitable Length: Due to the physics of the sub-GHz band, this antenna is physically longer than its 2.4 GHz counterparts. Its length is carefully calculated to resonate efficiently as a λ/4 or λ/2 design at 470−510 MHz, ensuring high efficiency without being prohibitively large.
Essential Application Scenarios
The unique combination of long-wavelength performance and rugged construction makes this antenna vital for systems focused on wide-area or deep-penetration communications.
Industrial and Utility Monitoring
The 470–510 MHz band is a workhorse for utility and industrial data links due to its excellent signal penetration capabilities.
Smart Metering (AMI): Used on utility collection units and end-node meters to transmit data (e.g., electricity, gas, water consumption) over long distances and through dense residential or commercial areas.
SCADA and Telemetry: Employed on remote terminal units (RTUs) and programmable logic controllers (PLCs) in pipelines, oil fields, or factory floors for reliable, low-data-rate control and status reporting.
IoT and LPWAN Gateways
This antenna is crucial for low-power wide-area networks that require exceptional range.
Private LPWAN Networks: Used on central gateways and hubs to establish proprietary wireless communication networks that link thousands of scattered sensors over many kilometers, bypassing traditional cellular infrastructure.
Wireless Data Logging: Installed on remote data loggers in environmental monitoring, geological surveys, or long-term structural monitoring projects where data must be transmitted from isolated locations.
Professional and Public Safety Radio
Used as a flexible, portable alternative to fixed antennas for short-term deployment or handheld devices.
Portable Base Stations: Employed on temporary or emergency communication base stations that need quick deployment and reliable omni-directional coverage.
Handheld Test Equipment: Used on spectrum analyzers or signal quality testers designed for field work in this specific frequency band.
Conclusion: Long-Range Stability in a Durable Package
The 470–510 MHz 3 dBi Rubber Antenna is a critical enabling component for any system that requires highly stable, long-distance communications in the sub-GHz spectrum. By leveraging its carefully tuned 3 dBi gain and omni-directional pattern within this low-frequency band, it guarantees superior signal range and penetration capabilities. Its robust, flexible construction ensures maximum durability and ease of deployment in the most demanding industrial, utility, and outdoor environments. For engineers seeking a reliable, high-efficiency antenna to power the next generation of industrial IoT, smart metering, and long-range telemetry solutions, this 470–510 MHz rubber antenna is the definitive choice for long-term operational success.
