The Backbone of Long-Range Wireless Bridge Connectivity
Engineered for professional wireless networking applications, this 2.4GHz 5.8GHz Double Frequency WiFi Wireless CPE Bridge Aluminum Antenna offers an unparalleled combination of durability, high gain, and true dual-band capability. Designed specifically to maximize the performance of Customer Premise Equipment (CPE) and Point-to-Point (P2P) / Point-to-Multipoint (P2MP) wireless bridges, this antenna is the ideal solution for extending network coverage, bridging long distances, and ensuring stable data throughput in challenging environments.
True Dual-Band Directional Power
Unlike single-band solutions, this antenna integrates two distinct frequency bands onto a single robust platform:
2.4GHz Band: Provides longer range and better penetration through obstacles, ideal for legacy devices and initial link establishment.
5.8GHz Band (5GHz): Offers a higher throughput and less interference in congested urban areas, perfect for high-speed data transmission.

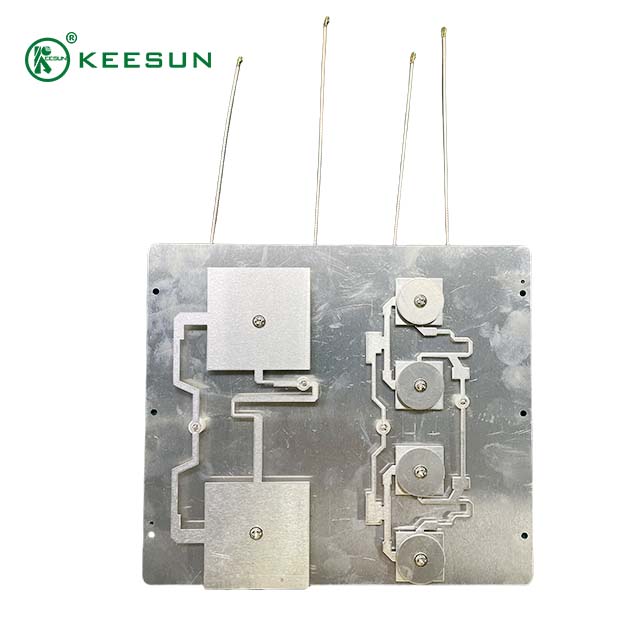

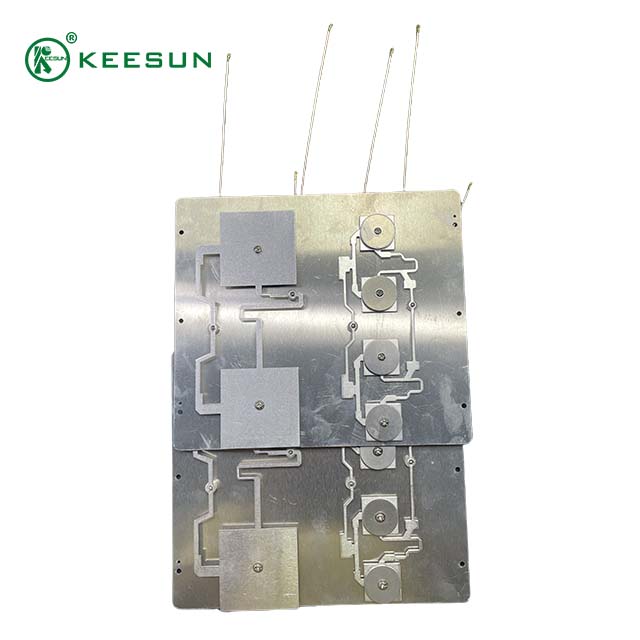

The design, as seen in the product image, features integrated patch antenna elements (the square sections) which provide a directional radiation pattern. This focusing of the RF energy translates directly into significantly higher effective gain than standard omnidirectional antennas, crucial for long-range wireless bridge applications.
Built to Last: Durable Aluminum Construction
The physical foundation of this antenna is a high-quality Aluminum panel. This choice of material offers several critical advantages essential for outdoor or ruggedized CPE/Bridge deployments:
Superior Durability: Resistant to corrosion, rust, and extreme weather conditions (UV, rain, snow, and ice).
Excellent Heat Dissipation: Helps maintain stable RF performance even under heavy load or high temperatures.
Integrated Ground Plane: The aluminum substrate acts as an effective, stable ground plane, which is fundamental to achieving the advertised gain and optimal directional performance of the patch elements.
Optimized for CPE and Bridge Equipment Integration
This antenna is specifically tailored for embedding directly into the housing of Wireless CPE and Bridge devices. The layout, featuring multiple feed points (implied by the complex trace routing and multiple connection points), suggests a sophisticated array designed for:
MIMO (Multiple-Input Multiple-Output) Support: Potentially supporting 2x2 or 4x4 MIMO configurations for enhanced data rates and link redundancy.
Dedicated 2.4G and 5.8G Ports: Separate paths for each frequency band to be fed via coaxial cables to the radio board.
The four visible whip/pin-style elements are likely test points for quick factory calibration or auxiliary/omni antennas for localized setup connectivity, demonstrating a complete, integrated RF solution ready for OEM manufacturing.
Technical Advantages for RF Engineers
High Gain Directional Array: Maximize the distance and reliability of P2P links.
Low VSWR: Optimized impedance matching ensures minimal signal reflection and maximum power transfer to the radiating elements.
Future-Proof Dual Frequency: Supports both legacy and high-speed networks, allowing for flexible deployment strategies.
Seamless Integration: Ready-to-mount module design simplifies the manufacturing process of the final CPE product.
