Product Overview

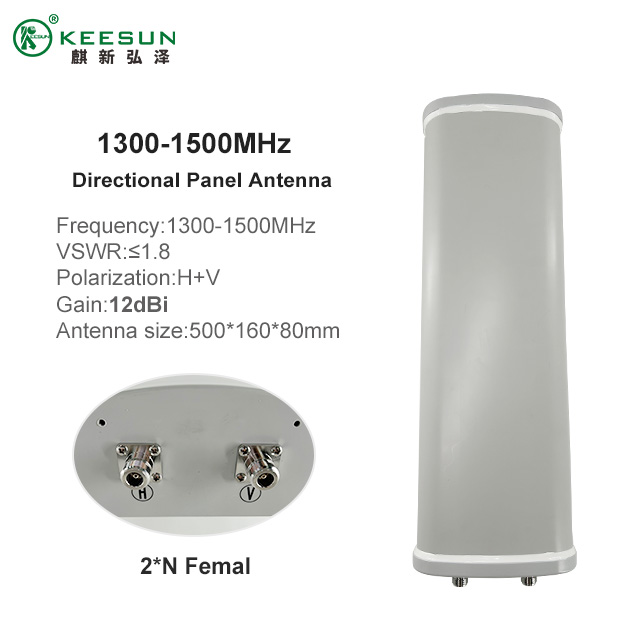

This KEESUN 1.3-1.5GHz Directional Panel Antenna is specifically designed for applications requiring stable, high-gain signal coverage. With its excellent 12dBi Gain and broad frequency range, it significantly improves the signal strength and reliability of wireless communication systems, making it an ideal choice for surveillance, point-to-point (PTP), or point-to-multipoint (PTMP) wireless transmission systems.
Key Technical Specifications
| Feature | Specification | Advantage |
| Frequency Range | 1300-1500MHz | Covers critical L-band applications such as UAV communication and specific broadband wireless access. |
| Gain | 12dBi | Provides powerful signal focusing capability, significantly extending communication distance and improving link quality. |
| Voltage Standing Wave Ratio (VSWR) | 1.8 | Ensures excellent impedance matching between the antenna and feedline, reducing signal reflection loss and increasing efficiency. |
| Polarization | H+V (Horizontal + Vertical) | Supports Dual Polarization for MIMO or diversity reception, enhancing data throughput and anti-fading performance. |

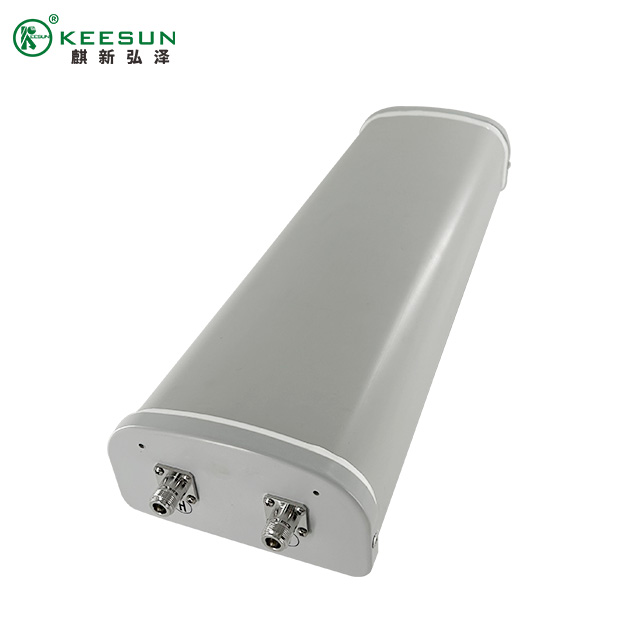

| Connector Type | 2*N Female | Standard and reliable connection method, easy to integrate into existing systems. |
| Antenna Size | 500x160x 80mm | Compact and robust design, easy for installation and deployment. |
✨ Product Features & Benefits
【High Gain & Long Range】: The 12dBi High Gain design focuses the wireless signal in a specific direction, ensuring a strong and high-quality communication link even over long distances.
【Broadband Coverage】: The 1300MHz to 1500MHz frequency range is compatible with various L-band communication protocols and devices, offering high application flexibility.
【Dual Polarization Support (H+V)】: Equipped with two independent ports for Horizontal (H) and Vertical (V) signals, supporting dual-channel transmission. This is key for implementing MIMO technology and diversity reception, effectively boosting data rates and system reliability.
【Low VSWR, High Efficiency】: The excellent performance with VSWR $\le 1.8$ ensures that most of the transmitted power is effectively radiated, minimizing loss.
【All-Weather Durable Design】: The enclosure is made of robust and durable material, providing superior protection and suitability for long-term operation in various harsh outdoor environments.
Main Application Scenarios
Unmanned Aerial Vehicle (UAV) Links: Provides stable, long-range video and data transmission for drones or ground control stations.
Public Safety and Emergency Communications: Rapid deployment of highly reliable point-to-point or point-to-multipoint networks during disasters or emergencies.
Broadband Wireless Access (BWA): Used for wireless network coverage in remote or specific geographical areas.
Video Surveillance Backhaul: Reliably transmits high-definition surveillance video back to the control center in industrial plants, campuses, or urban areas.
Order & Contact
If you are looking for a high-performance, high-reliability 1.3-1.5GHz H+V Dual-Polarized Directional Antenna, this KEESUN 12dBi Panel Antenna is your ideal choice.
