RF10046 | Hononga tane SMA ki te I-PEX me te 15cm RG316 Coaxial Cable

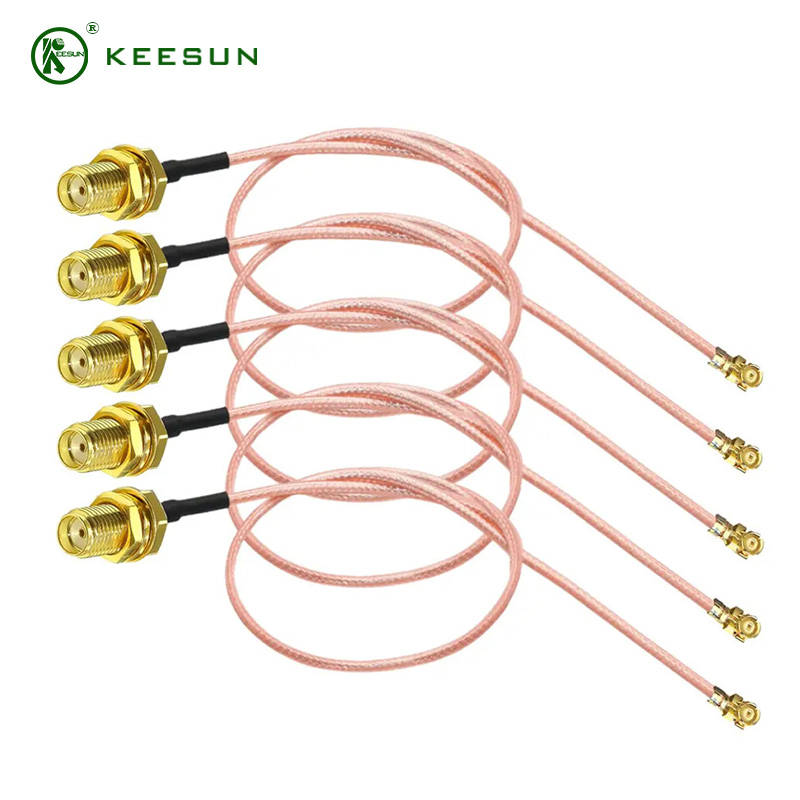

SMA tane ki te I-PEX me te iti mate RG316 Coaxial Cable

●Mahinga Hiko:
1. Awhe Auautanga……………………DC~6.0GHz
2. Impedance……………………………………50 Ohm Nominal
3.Ngaronga Whakauru…………………………100MHz---------≤0.3
400MHz---------≤0.67-1000MHz
-----≤0.67-100-
MHz 3000MHz---------<1.8
5000MHz---------<2.54
6000MHz---------- <2.93
8000MHz---------≤3.68
4.VSWR………………………………1.92(MAX)
●Ngā āhuatanga Miihini:
1.Cable……………………………………RG316 Cable(pango)
2.Operating Temp………………………………-20～±65
3.Storage Temp…………………………………-30～±75
4.Connector1………………………………SMA Tane
5.Connector2………………………………1-PEX
6.Cm Roa e waatea ana……………………………15cm

Tauira:
RF10046
Waitohu:
KEESUN
Waehere:
RF10046

:
Avanoa





Uiui Tāpirihia ki te Kete

Whakaahuatanga Hua

●Mahinga Hiko:

1. Awhe Auautanga……………………DC~6.0GHz

2. Impedance……………………………50 Ohm Nominal

3.Ngaronga Whakauru…………………………100MHz---------≤0.3

400MHz---------≤0.67

1000MHz---------<1.09

3000MHz---------<1.8

5000MHz---------<2.54

6000MHz--------- <2.93

8000MHz---------≤3.68

4.VSWR…………………………………………1.92(MAX)

●Ahuatanga miihini:

1.Cable…………………………………………RG316 Cable(pango)

2.Maamaa whakahaere………………………………-20～±65

3.Maamaa Rokiroki………………………………-30～±75

4.Tuhonohono1………………………………SMA Tane

5.Tuhonohono2………………………………90°SMA Tane

6. te roa o te taura………………………………15cm

KAUPAPA RF

RF Coaxial Antenna

DC~6Ghz

SMA TO I-PEX me te taura 178

Te roa o te taura:15cm

Ingoa1

Ingoa2

Ko te taura coaxial te nuinga o te waa ki te tuku i nga tohu teitei, e whakamahia ana i roto i te tuku tohu pouaka whakaata, te hononga whatunga rorohiko, te pouaka whakaata, te waea waea, te punaha radar me etahi atu mara. He pai te mahi whakamarumaru me te kaha ki te aukati, he pai hoki mo te tuku tohu tohu tawhiti.
