KS-C30001 RF Coaxial Connector: Excellent Performance, Seamless Connection
In the current RF communication field where the requirements for high-speed data transmission and stable signal connection are increasingly strict, having a connector with excellent performance and strong adaptability is of vital importance. The KS-C30001 RF coaxial connector has become an ideal choice in the RF connection field due to its exquisite design and outstanding performance.

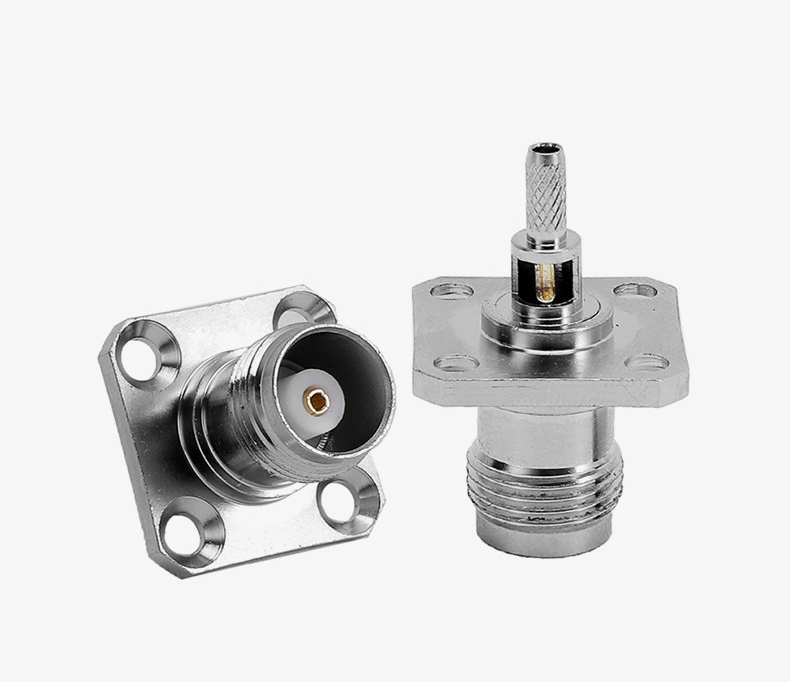

KS-C30001 is a professional RF coaxial connector, specifically of the TNC female type. TNC connectors are widely used in the RF and microwave fields and are renowned for their stable performance and reliable connection.
It adopts a window-type structural design. This design not only ensures connection stability but also provides a better path for signal transmission, effectively reducing signal interference and attenuation.

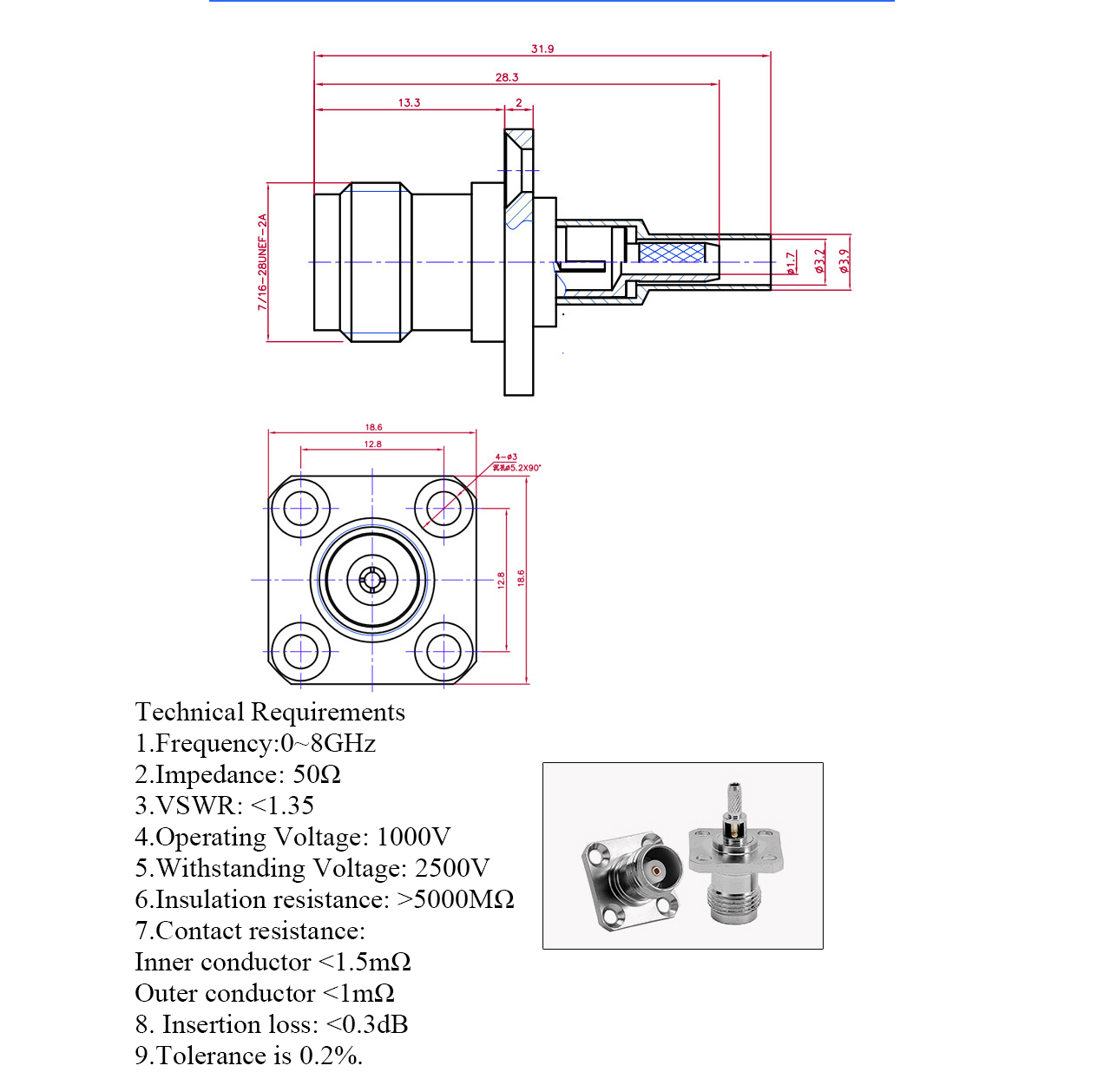

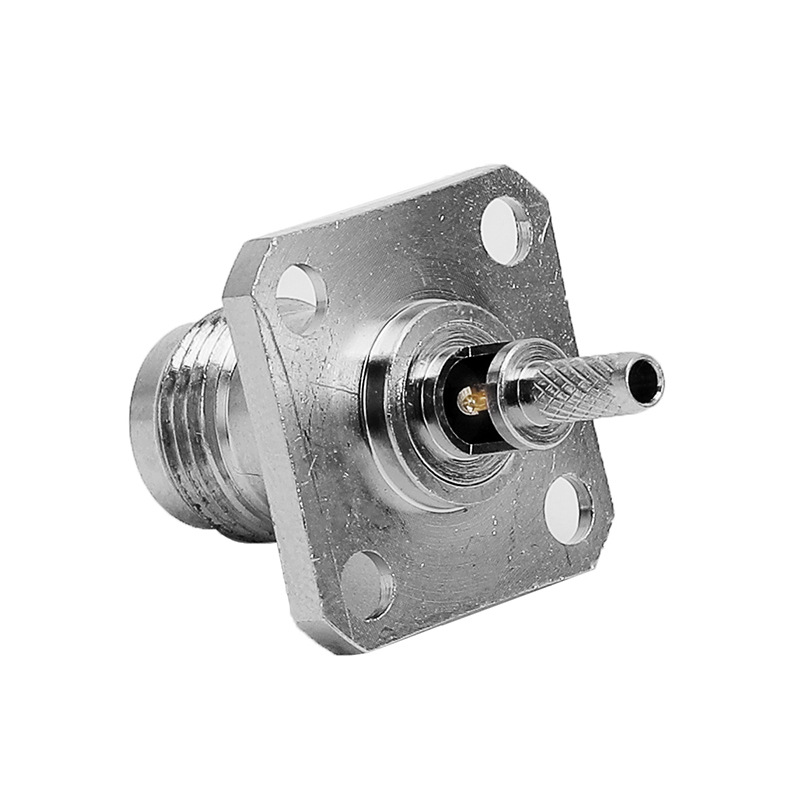

It is equipped with a four-hole flange. This installation method makes the connector more stable during the installation process, capable of withstanding large mechanical stresses. It is suitable for various complex installation environments, ensuring reliable connection whether on large communication equipment or small precision instruments.

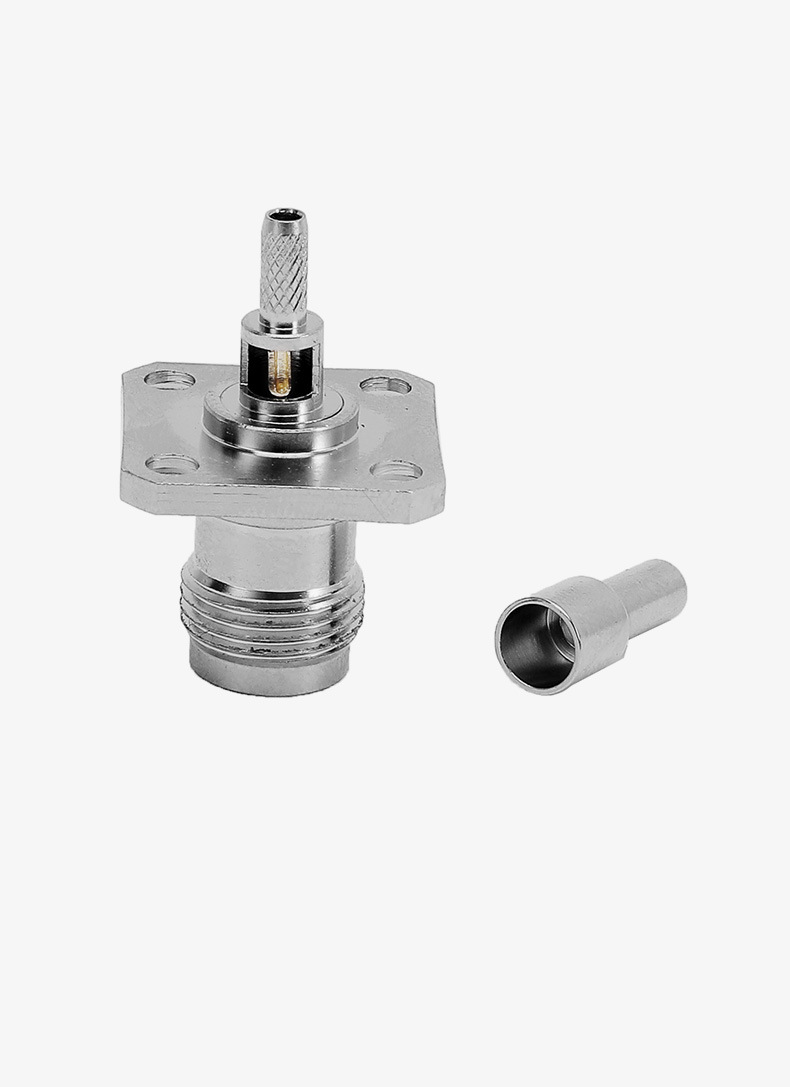

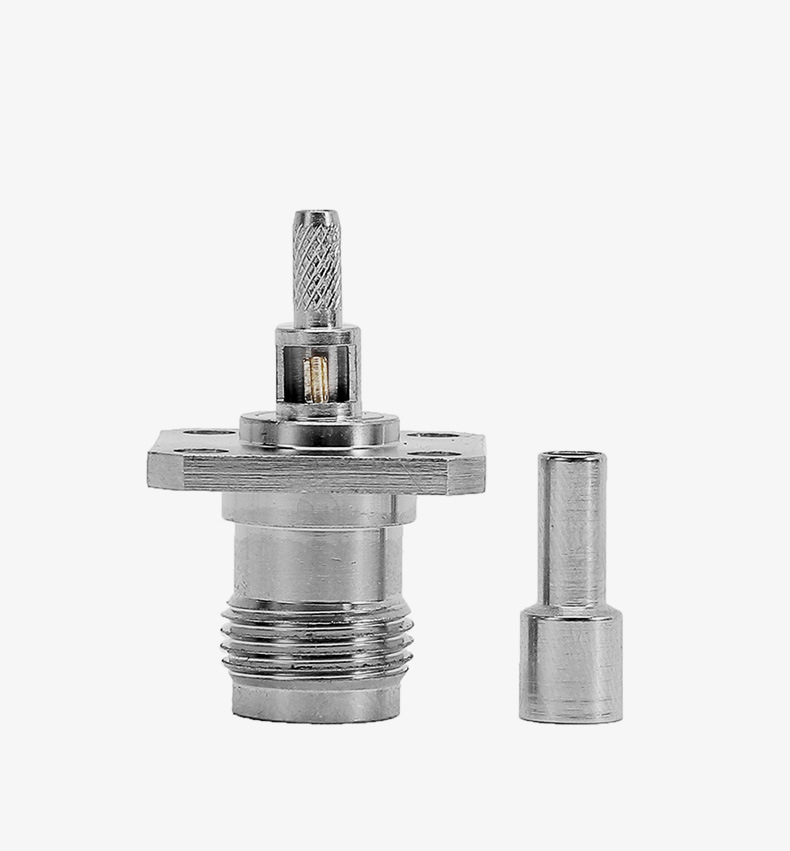

It supports the crimping connection method and can perfectly match two commonly used RF cables, RG316 and RG174. The RG316 cable has low attenuation and good flexibility, suitable for scenarios with high signal quality requirements and certain bending degrees. The RG174 cable achieves a good balance between cost and performance and is widely used in various RF devices.
The impedance is stably maintained at 50Ω, which is the standard impedance value in the RF communication field. Stable impedance characteristics can ensure that signals minimize reflection and loss during transmission, thereby guaranteeing signal integrity and transmission efficiency and providing a solid foundation for high-quality communication.
KS-C30001 has a wide frequency coverage range, which can meet the high-frequency signal transmission requirements from DC (direct current) to 11GHz. This means it can adapt to various RF systems with different frequencies. Whether in low-frequency communication systems or high-frequency microwave equipment, it can perform excellently and provide strong support for multi-band communication.
It has extremely low Voltage Standing Wave Ratio (VSWR) and insertion loss. VSWR is an important indicator for measuring the degree of signal reflection. A low VSWR means minimal signal reflection during transmission, which can maximize the utilization of signal energy. Insertion loss directly affects the transmission efficiency of signals. Low insertion loss ensures that there is almost no energy loss when signals pass through the connector, thereby ensuring the strength and quality of the signals.
It is manufactured with high-quality metal materials and has excellent vibration resistance, impact resistance, and corrosion resistance. In various harsh working environments, such as vibration and impact in industrial sites, as well as wind, sun, moisture, and corrosion in outdoor environments, it can maintain stable performance and reliable connection, extending the service life of the product.
With its excellent performance, the KS-C30001 RF coaxial connector is widely used in the following fields:
Communication Equipment: Such as base stations, routers, switches, etc. In these devices, stable and reliable RF connection is the key to ensuring communication quality.
Aerospace: The aerospace field has extremely high requirements for the reliability and stability of equipment.KS-C30001 can work normally under extreme environmental conditions and meet the strict requirements of aerospace equipment.
Military Defense: Military communication systems have extremely high requirements for signal confidentiality and stability. The high performance and high reliability of KS-C30001 make it an ideal choice for military communication equipment.
Testing and Measurement: In the RF testing and measurement field, accurate signal transmission is the prerequisite for ensuring the accuracy of test results. KS-C30001 can provide stable and reliable connection, ensuring the smooth progress of testing and measurement work.
The KS-C30001RF coaxial connector has become a leader in the RF connection field with its excellent performance, wide adaptability, and reliable quality. Whether in professional communication equipment or high-end aerospace, military defense, and testing and measurement fields, it can provide you with stable and efficient RF connection solutions. Choosing KS-C30001 means choosing excellent performance and reliable guarantee, allowing your RF system to operate stably even in complex environments and enjoy a high-quality communication experience.
